经典蓝牙和TWS产测常见功能

📎 原始文档：https://www.kdocs.cn/l/csQkHIpOSLZd 经典蓝牙和TWS产测常见功能
产测的其他文档产测相关应用.otl

进入蓝牙模式

//一般在idle模式下用
//普通SDK
void enter_bt_mode(void)
{
    struct application *app = get_current_app();
    if (app) {
        if (strcmp(app->name, APP_NAME_BT)) {
            if (!app_var.goto_poweroff_flag) {
                app_var.play_poweron_tone = 0;
                task_switch_to_bt();
            }
        }
    }
}
//可视化SDK
void enter_bt_mode(void)
{
    if (!app_in_mode(APP_MODE_BT)) {
        if(!app_var.goto_poweroff_flag) {
            app_var.play_poweron_tone = 0;
            app_send_message(APP_MSG_GOTO_MODE, APP_MODE_BT);
        }
    }
}

进入dut模式基础接口

extern void bredr_set_dut_enble(u8 en, u8 phone);

进dut常用操作：耳机先取消回连流程（包括回连TWS和回连手机），取消蓝牙BLE广播，再进入dut模式，进入dut后不能再发起任何回连。
普通SDK
可视化SDK

//普通SDK
void bt_bredr_enter_dut_mode(u8 mode, u8 inquiry_scan_en)
{
    u8 local_addr[6];
    puts("<<<<<<<<<<<<<bt_bredr_enter_dut_mode>>>>>>>>>>>>>>\n");
    clk_set("sys", SYS_48M);

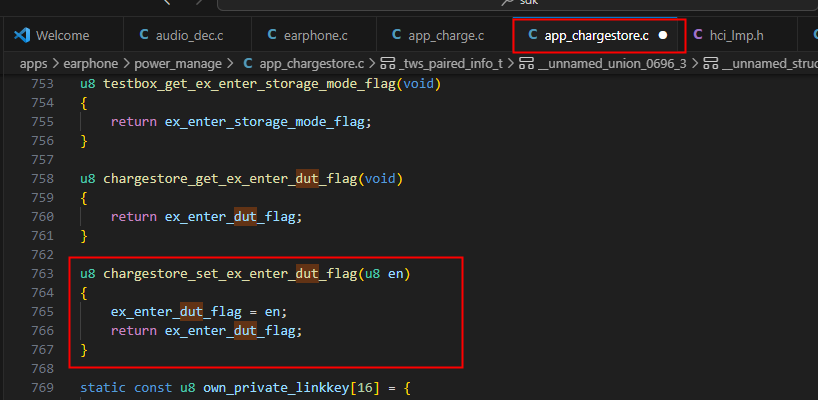

    u8 chargestore_set_ex_enter_dut_flag(u8 en);
    chargestore_set_ex_enter_dut_flag(1);//把测试盒进dut标志位置1，避免走回连
    extern void bt_ble_adv_enable(u8 enable);
    bt_ble_adv_enable(0);//关BLE广播，如果有其他地方还会打开，那些地方要加标志位屏蔽掉，总之就是不能开ble广播
    bredr_set_dut_enble(1, 1);
    if (mode) {
        bt_user_priv_var.auto_connection_counter = 0;
        //下面是断开tws和手机，取消回连，开可发现可连接
#if    TCFG_USER_TWS_ENABLE
        tws_cancel_state();
        user_send_cmd_prepare(USER_CTRL_PAGE_CANCEL, 0, NULL);
        user_send_cmd_prepare(USER_CTRL_POWER_OFF, 0, NULL);
        if (0 == get_total_connect_dev()) {
            log_info("<<<<<no phone connect,instant page_scan,inquiry_scan:%x>>>>>\n", inquiry_scan_en);
            bt_get_vm_mac_addr(local_addr);

            //log_info("local_adr\n");
            //put_buf(local_addr,6);
            lmp_hci_write_local_address(local_addr);
            if (inquiry_scan_en) {
                user_send_cmd_prepare(USER_CTRL_WRITE_SCAN_ENABLE, 0, NULL);
            }
            user_send_cmd_prepare(USER_CTRL_WRITE_CONN_ENABLE, 0, NULL);
        }

#else
        if (bt_user_priv_var.auto_connection_timer) {
            sys_timeout_del(bt_user_priv_var.auto_connection_timer);
            bt_user_priv_var.auto_connection_timer = 0;
        }
        user_send_cmd_prepare(USER_CTRL_PAGE_CANCEL, 0, NULL);
        user_send_cmd_prepare(USER_CTRL_POWER_OFF, 0, NULL);
        if (inquiry_scan_en) {
            user_send_cmd_prepare(USER_CTRL_WRITE_SCAN_ENABLE, 0, NULL);
        }
        user_send_cmd_prepare(USER_CTRL_WRITE_CONN_ENABLE, 0, NULL);
#endif
        link_task_idle_disable();
    }
}
//可视化SDK
void bt_bredr_enter_dut_mode(u8 mode, u8 inquiry_scan_en)
{
    puts("<<<<<<<<<<<<<bt_bredr_enter_dut_mode>>>>>>>>>>>>>>\n");
    clock_alloc("DUT", SYS_48M);

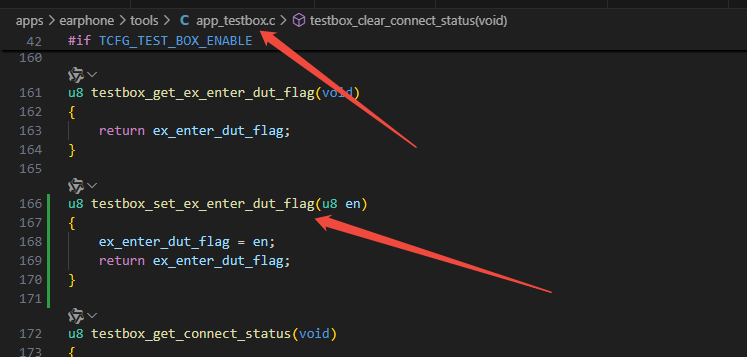

    u8 testbox_set_ex_enter_dut_flag(u8 en);
    testbox_set_ex_enter_dut_flag(1);//把测试盒进dut标志位置1，避免走回连
    extern void bt_ble_adv_enable(u8 enable);
    bt_ble_adv_enable(0);//关BLE广播，如果有其他地方还会打开，那些地方要加标志位屏蔽掉，总之就是不能开ble广播
    bredr_set_dut_enble(1, 1);
    if (mode) {
        clr_device_in_page_list();
        dut_idle_run_slot(2);
        g_bt_hdl.auto_connection_counter = 0;
#if TCFG_USER_TWS_ENABLE
        tws_dual_conn_close();
        bt_page_scan_for_test(inquiry_scan_en);
#else
        dual_conn_close();
        bt_cmd_prepare(USER_CTRL_POWER_OFF, 0, NULL);
        u8 local_addr[6];
        if (0 == bt_get_total_connect_dev()) {
            bt_get_vm_mac_addr(local_addr);
            lmp_hci_write_local_address(local_addr);
            if (inquiry_scan_en) {
                bt_cmd_prepare(USER_CTRL_WRITE_SCAN_ENABLE, 0, NULL);
            }
            bt_cmd_prepare(USER_CTRL_WRITE_CONN_ENABLE, 0, NULL);
        }
#endif
    }
}

//调用
bt_bredr_enter_dut_mode(1, 1);

进入定频测试

void bt_fix_fre_api(u8 fre);//fre: 0 ~ 78，对应2402——2480

如果开了BLE，需要先关闭BLE广播
普通SDK：

bt_ble_exit();
bt_fix_fre_api(39);//2441

可视化SDK：

void bt_fix_fre_api(u8 fre);
void tws_dual_conn_close();
tws_dual_conn_close();//非tws用dual_conn_close();
bt_ble_adv_enable(0);
bt_ble_exit();
multi_protocol_bt_exit();
bt_fix_fre_api(39);//2441

进入配对模式最终实现就是取消所有回连流程，断开手机，开可发现可连接

//普通SDK
void bt_enter_pairing(void)
{
    bt_user_priv_var.auto_connection_counter = 0;
#if    TCFG_USER_TWS_ENABLE
    gtws.state &= ~BT_TWS_POWER_ON;
    if(tws_api_get_tws_state() & TWS_STA_PHONE_CONNECTED){
        if(tws_api_get_role() == TWS_ROLE_MASTER){
            printf("------------------------------------------------------------\n");
            user_send_cmd_prepare(USER_CTRL_ALL_SNIFF_EXIT, 0, NULL);
            user_send_cmd_prepare(USER_CTRL_POWER_OFF, 0, NULL);
        }
    }
    else{
        if(get_curr_channel_state() || hci_standard_connect_check()){
            if(tws_api_get_role() == TWS_ROLE_MASTER){
                printf("tttttttttttttttttttttttttttttttttttttttttttttttttttttttt\n");
                user_send_cmd_prepare(USER_CTRL_ALL_SNIFF_EXIT, 0, NULL);
                user_send_cmd_prepare(USER_CTRL_PAGE_CANCEL, 0, NULL);
                user_send_cmd_prepare(USER_CTRL_POWER_OFF, 0, NULL);
            }
        }
        void bt_tws_connect_and_connectable_switch();
        bt_tws_connect_and_connectable_switch();
    }
#else
    if (bt_user_priv_var.auto_connection_timer) {
        sys_timeout_del(bt_user_priv_var.auto_connection_timer);
        bt_user_priv_var.auto_connection_timer = 0;
    }
    user_send_cmd_prepare(USER_CTRL_PAGE_CANCEL, 0, NULL);
    if(get_total_connect_dev() || hci_standard_connect_check()){
        user_send_cmd_prepare(USER_CTRL_POWER_OFF, 0, NULL);
    }
    else{
        user_send_cmd_prepare(USER_CTRL_WRITE_SCAN_ENABLE, 0, NULL);
        user_send_cmd_prepare(USER_CTRL_WRITE_CONN_ENABLE, 0, NULL);
    }
#endif
}
//可视化SDK
void bt_enter_pairing(void)
{
    clr_device_in_page_list();
    g_bt_hdl.auto_connection_counter = 0;
#if    TCFG_USER_TWS_ENABLE
    if(tws_api_get_tws_state() & TWS_STA_PHONE_CONNECTED){
        if(tws_api_get_role() == TWS_ROLE_MASTER){
            printf("------------------------------------------------------------\n");
            bt_cmd_prepare(USER_CTRL_ALL_SNIFF_EXIT, 0, NULL);
            bt_cmd_prepare(USER_CTRL_POWER_OFF, 0, NULL);
        }
    }
    else{
        if(bt_get_curr_channel_state() || bt_get_total_connect_dev()){
            if(tws_api_get_role() == TWS_ROLE_MASTER){
                printf("tttttttttttttttttttttttttttttttttttttttttttttttttttttttt\n");
                bt_cmd_prepare(USER_CTRL_ALL_SNIFF_EXIT, 0, NULL);
                bt_cmd_prepare(USER_CTRL_PAGE_CANCEL, 0, NULL);
                bt_cmd_prepare(USER_CTRL_POWER_OFF, 0, NULL);
            }
        }
        bt_cmd_prepare(USER_CTRL_WRITE_SCAN_ENABLE, 0, NULL);
        bt_cmd_prepare(USER_CTRL_WRITE_CONN_ENABLE, 0, NULL);
    }
#else
    bt_cmd_prepare(USER_CTRL_PAGE_CANCEL, 0, NULL);
    if(bt_get_curr_channel_state() || bt_get_total_connect_dev()){
        bt_cmd_prepare(USER_CTRL_POWER_OFF, 0, NULL);
    }
    else{
        bt_cmd_prepare(USER_CTRL_WRITE_SCAN_ENABLE, 0, NULL);
        bt_cmd_prepare(USER_CTRL_WRITE_CONN_ENABLE, 0, NULL);
    }
#endif
}

tws进入单耳配对模式最终实现断开tws和手机，取消回连，开可发现可连接

//普通SDK
void tws_enter_single_pairing(void)
{
    bt_user_priv_var.auto_connection_counter = 0;
    u8 chargestore_set_ex_enter_dut_flag(u8 en);
    chargestore_set_ex_enter_dut_flag(1);//把测试盒进dut标志位置1，避免走回连
    //下面是断开tws和手机，取消回连，开可发现可连接
    tws_cancel_state();
    user_send_cmd_prepare(USER_CTRL_PAGE_CANCEL, 0, NULL);
    user_send_cmd_prepare(USER_CTRL_POWER_OFF, 0, NULL);
    if (0 == get_total_connect_dev()) {
        bt_get_vm_mac_addr(local_addr);
        //log_info("local_adr\n");
        //put_buf(local_addr,6);
        lmp_hci_write_local_address(local_addr);
        user_send_cmd_prepare(USER_CTRL_WRITE_SCAN_ENABLE, 0, NULL);
        user_send_cmd_prepare(USER_CTRL_WRITE_CONN_ENABLE, 0, NULL);
    }
}
//可视化SDK
void tws_enter_single_pairing(void)
{
    clr_device_in_page_list();
    g_bt_hdl.auto_connection_counter = 0;
    u8 testbox_set_ex_enter_dut_flag(u8 en);
    testbox_set_ex_enter_dut_flag(1);//把测试盒进dut标志位置1，避免走回连
    //下面是断开tws和手机，取消回连，开可发现可连接
    tws_dual_conn_close();
    bt_cmd_prepare(USER_CTRL_PAGE_CANCEL, 0, NULL);
    tws_api_detach(TWS_DETACH_BY_POWEROFF, 5000);
    bt_cmd_prepare(USER_CTRL_POWER_OFF, 0, NULL);
    if (0 == get_total_connect_dev()) {
        bt_get_vm_mac_addr(local_addr);
        //log_info("local_adr\n");
        //put_buf(local_addr,6);
        lmp_hci_write_local_address(local_addr);
        bt_cmd_prepare(USER_CTRL_WRITE_SCAN_ENABLE, 0, NULL);
        bt_cmd_prepare(USER_CTRL_WRITE_CONN_ENABLE, 0, NULL);
    }
}

清除手机配对记录此操作需要在蓝牙模式下进行，清除设备记录之前先要进入配对模式

//先进蓝牙模式
enter_bt_mode();
//然后进配对模式
bt_enter_pairing();
//然后清除记录
user_send_cmd_prepare(USER_CTRL_DEL_ALL_REMOTE_INFO, 0, NULL);//可视化用bt_cmd_prepare

//如果原来在idle，通过enter_bt_mode()切到蓝牙模式，可以在BT_STATUS_INIT_OK处添加处理
//普通SDK
static int bt_connction_status_event_handler(struct bt_event *bt)
{
    STATUS *p_tone = get_tone_config();
    u8 *phone_number = NULL;

#if CONFIG_BT_BACKGROUND_ENABLE
    int ret = bt_background_event_probe_handler(bt);
    if (ret == -EINVAL) {
        return 0;
    }
#endif
    //log_info("bt_conn_event:%d", bt->event);

    switch (bt->event) {
    case BT_STATUS_INIT_OK:
    //......前面维持公版，省略
        if(clean_all_info){//enter_bt_mode()时添加标志位处理
            clean_all_info = 0;
            user_send_cmd_prepare(USER_CTRL_DEL_ALL_REMOTE_INFO, 0, NULL);
            clear_current_poweron_memory_search_index(1);
        }
        else{
            bt_init_ok_search_index();//不是清除配对才执行
        }
    //......后面维持公版，省略
}

//可视化SDK
static int bt_connction_status_event_handler(struct bt_event *bt)
{
    switch (bt->event) {
    case BT_STATUS_INIT_OK:
    //......前面维持公版，省略
        if(clean_all_info){//enter_bt_mode()时添加标志位处理
            clean_all_info = 0;
            bt_cmd_prepare(USER_CTRL_DEL_ALL_REMOTE_INFO, 0, NULL);
            clear_current_poweron_memory_search_index(0);
        }
        else{
            bt_init_ok_search_index();//不是清除配对才执行
        }
    //......后面维持公版，省略
}
static int dual_conn_btstack_event_handler(int *_event)
{
    struct bt_event *event = (struct bt_event *)_event;
    int state = tws_api_get_tws_state();

    printf("dual_conn_btstack_event_handler:%d\n", event->event);
    switch (event->event) {
    case BT_STATUS_INIT_OK:
        if(clean_all_info == 0){
            dual_conn_page_devices_init();
        }
        return 0;
    //......后面维持公版，省略
}

清除TWS连接记录

//对耳连接状态下使用
tws_api_remove_pairs();
//普通SDK
//蓝牙模式其他状态下使用
/*
 * 解除配对，清掉对方地址信息和本地声道信息
 */
void bt_tws_remove_pairs()
{
    puts("<<<<<<<<<<<<<<<<<<bt_tws_remove_pairs err>>>>>>>>>>>>>>>>>>\n");
    /*正常情况下不必要清除tws相关配对信息，防止用户误操作。只删除手机配对信息即可*/
    /* u8 del_phone_remote_info=1; */
    /* user_send_cmd_prepare(USER_CTRL_DEL_ALL_REMOTE_INFO, 0, &del_phone_remote_info); */
#if 1
    u8 mac_addr[6];
    char channel = 'U';
    char tws_channel = 0;

    gtws.state &= ~BT_TWS_REMOVE_PAIRS;

    memset(mac_addr, 0xFF, 6);
    syscfg_write(CFG_TWS_COMMON_ADDR, mac_addr, 6);
    syscfg_write(CFG_TWS_REMOTE_ADDR, mac_addr, 6);
    syscfg_read(CFG_BT_MAC_ADDR, mac_addr, 6);
    lmp_hci_write_local_address(mac_addr);

#if (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_LEFT_START_PAIR) ||\
    (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_RIGHT_START_PAIR) ||\
    (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_MASTER_AS_LEFT)

#if CONFIG_TWS_SECECT_CHARGESTORE_PRIO
    syscfg_read(CFG_CHARGESTORE_TWS_CHANNEL, &tws_channel, 1);
#endif
    if ((tws_channel != 'L') && (tws_channel != 'R')) {
        syscfg_write(CFG_TWS_CHANNEL, &channel, 1);
        tws_api_set_local_channel(channel);
    }
#endif

    tws_api_clear_connect_aa();

    bt_tws_wait_pair_and_phone_connect();
#endif
}
//非蓝牙模式下使用
void idle_tws_remove_pairs()
{
    puts("<<<<<<<<<<<<<<<<<<idle_tws_remove_pairs err>>>>>>>>>>>>>>>>>>\n");
    /*正常情况下不必要清除tws相关配对信息，防止用户误操作。只删除手机配对信息即可*/
    /* u8 del_phone_remote_info=1; */
    /* user_send_cmd_prepare(USER_CTRL_DEL_ALL_REMOTE_INFO, 0, &del_phone_remote_info); */
#if 1
    u8 mac_addr[6];
    char channel = 'U';
    char tws_channel = 0;

    memset(mac_addr, 0xFF, 6);
    syscfg_write(CFG_TWS_COMMON_ADDR, mac_addr, 6);
    syscfg_write(CFG_TWS_REMOTE_ADDR, mac_addr, 6);

#if (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_LEFT_START_PAIR) ||\
    (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_RIGHT_START_PAIR) ||\
    (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_MASTER_AS_LEFT)

#if CONFIG_TWS_SECECT_CHARGESTORE_PRIO
    syscfg_read(CFG_CHARGESTORE_TWS_CHANNEL, &tws_channel, 1);
#endif
    if ((tws_channel != 'L') && (tws_channel != 'R')) {
        syscfg_write(CFG_TWS_CHANNEL, &channel, 1);
    }
#endif
#endif
}
//可视化SDK
//蓝牙模式其他状态下使用
void bt_tws_remove_pairs()
{
    u8 mac_addr[6];

    gtws.state &= ~BT_TWS_REMOVE_PAIRS;
    gtws.state &= ~BT_TWS_PAIRED;
    gtws.state |= BT_TWS_UNPAIRED;

    memset(mac_addr, 0xFF, 6);
    syscfg_write(CFG_TWS_COMMON_ADDR, mac_addr, 6);
    syscfg_write(CFG_TWS_REMOTE_ADDR, mac_addr, 6);
    syscfg_read(CFG_BT_MAC_ADDR, mac_addr, 6);
    lmp_hci_write_local_address(mac_addr);

#if (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_START_PAIR_AS_LEFT) ||\
    (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_START_PAIR_AS_RIGHT) ||\
    (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_MASTER_AS_LEFT) || \
    (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_MASTER_AS_RIGHT) && \
    CONFIG_TWS_SECECT_CHARGESTORE_PRIO
    char channel = 'U';
    char tws_channel = 0;
    syscfg_read(CFG_CHARGESTORE_TWS_CHANNEL, &tws_channel, 1);
    if ((tws_channel != 'L') && (tws_channel != 'R')) {
        syscfg_write(CFG_TWS_CHANNEL, &channel, 1);
        tws_api_set_local_channel(channel);
    }
#endif
}
//非蓝牙模式下使用
void idle_tws_remove_pairs()
{
    u8 mac_addr[6];
    memset(mac_addr, 0xFF, 6);
    syscfg_write(CFG_TWS_COMMON_ADDR, mac_addr, 6);
    syscfg_write(CFG_TWS_REMOTE_ADDR, mac_addr, 6);

#if (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_START_PAIR_AS_LEFT) ||\
    (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_START_PAIR_AS_RIGHT) ||\
    (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_MASTER_AS_LEFT) || \
    (CONFIG_TWS_CHANNEL_SELECT == CONFIG_TWS_MASTER_AS_RIGHT) && \
    CONFIG_TWS_SECECT_CHARGESTORE_PRIO
    char channel = 'U';
    char tws_channel = 0;
    syscfg_read(CFG_CHARGESTORE_TWS_CHANNEL, &tws_channel, 1);
    if ((tws_channel != 'L') && (tws_channel != 'R')) {
        syscfg_write(CFG_TWS_CHANNEL, &channel, 1);
    }
#endif
}

tws组队拿到左右耳的local地址，然后想办法互相交换，写到remote vm

//获取左右耳的local地址
syscfg_read(CFG_TWS_LOCAL_ADDR, local_addr, 6);
//通过串口或者spp等方式左右互换local地址，比如左边local给右边，右边local给左边
//给过来就得到remote，然后写VM
//比如左边local发给右边，这个local就变成了右边的remote
syscfg_write(CFG_TWS_REMOTE_ADDR, mac_remote, 6);
//设置耳机声道
syscfg_write(CFG_TWS_CHANNEL, &channel, 1);

烧写mac地址注意：此烧写方式跟一拖八或者一拖二烧录mac地址是一样的，mac写在flash最后4K，每次写mac地址都会把最后4K擦除，所以要注意在写mac地址之前备份最后4K里面的其他数据（如果有的话，比如认证码三元组之类的）

#define MAC_PAGE_OFFSET     64

typedef enum _FLASH_ERASER {
    CHIP_ERASER = 0,
    BLOCK_ERASER,
    SECTOR_ERASER,
    PAGE_ERASER,
} FLASH_ERASER;

extern bool sfc_erase(int cmd, u32 addr);
extern u32 sfc_write(const u8 *buf, u32 addr, u32 len);

/**
 * @brief 将蓝牙地址写入保留区最后256字节
 *
 * @param mac 蓝牙地址
 * @param len
 * @return int
 */
int set_mac_addr_to_flash(const u8 *mac, u16 len)
{
#if (CONFIG_DEVELOPER_MODE)
    return 256;//开发板不支持烧写
#endif
    u8 buffer[256];
    u32 flash_capacity = sdfile_get_disk_capacity();
    u32 sector = flash_capacity - 4 * 1024;
    u32 page_addr = flash_capacity - 256;
    u8 *auif_ptr = (u8 *)sdfile_flash_addr2cpu_addr(page_addr);
    u8 write_mac[6];
    u16 crc;
    u32 wlen;

    ///save last 256 byte
    /* memset(buffer, 0xff, sizeof(buffer)); */
    memcpy(buffer, auif_ptr, sizeof(buffer));
    // auif_ptr += MAC_PAGE_OFFSET;

    void swapX(const uint8_t *src, uint8_t *dst, int len);
    swapX(mac, write_mac, 6);

    memcpy(&buffer[MAC_PAGE_OFFSET], write_mac, sizeof(write_mac));
    crc = CRC16(&buffer[MAC_PAGE_OFFSET], sizeof(write_mac));
    printf("crc:0x%x", crc);
    buffer[MAC_PAGE_OFFSET+sizeof(write_mac)] = crc>>8;
    buffer[MAC_PAGE_OFFSET+sizeof(write_mac)+1] = crc & 0xff;
    put_buf(&buffer[MAC_PAGE_OFFSET], 8);

    if(!memcmp(buffer, auif_ptr, sizeof(buffer))) {
        printf("same , return");
        return 256;
    }

    printf("erase license sector \n");
    sfc_erase(SECTOR_ERASER, sector);

    printf("write license to flash \n");
    wlen = sfc_write(buffer, page_addr, 256);
    printf("wlen:%d \n", wlen);

    return wlen;
    // return 0;
}

//读取烧录的MAC地址
u8 mac_addr[6];
syscfg_read(CFG_BT_MAC_ADDR, mac_addr, 6);

获取tws配对记录

    u8 local_addr[6];
    u8 remote_addr[6];
    u8 common_addr[6];
    u8 channel = 0;
    bt_get_tws_local_addr(local_addr);
    syscfg_read(CFG_TWS_REMOTE_ADDR, remote_addr, 6);
    syscfg_read(CFG_TWS_COMMON_ADDR, common_addr, 6);
    syscfg_read(CFG_TWS_CHANNEL, &channel, 1);

获取耳机检测的电池电压和百分比

u16 get_vbat_value(void);//电压：注意返回值是u16
u8 get_vbat_percent(void);//百分比，返回80表示80%

获取蓝牙名

const char *bt_get_local_name();

获取SDK版本信息

const char *sdk_version_info_get(void);

获取烧录校验码

extern u8 *sdfile_get_burn_code(u8 *len);//len为返回值指向内存的长度

获取是否与当前手机配对过

extern int get_link_key(u8 *bd_addr, u8 *link_key, u8 id);
bool get_linkkey_exist_state(const uint8_t *bt_address)
{
    u8 link_key[16] = {0};
    printf("%s\n", __func__);
    put_buf((u8 *)bt_address, 6);
    if (get_link_key((u8 *)bt_address, (u8 *)&link_key[0],  0)) {
        printf("have link key\n");
        return true;
    } else {
        printf("no link key\n");
        return false;
    }
}

写入自定义数据用于例如固定BLE地址、或者做SN数据等
此方式受“擦除VM和BT配置区“的影响。想要不受影响请使用模拟烧录器写认证码

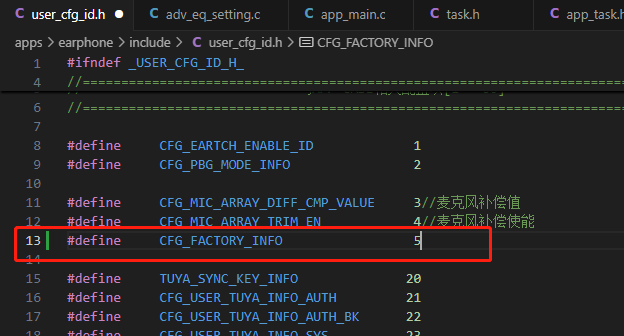

1、先定义一个VM索引（注意不要和SDK已有的冲突，SDK已有索引见syscfg_id.h和user_cfg_id.h）

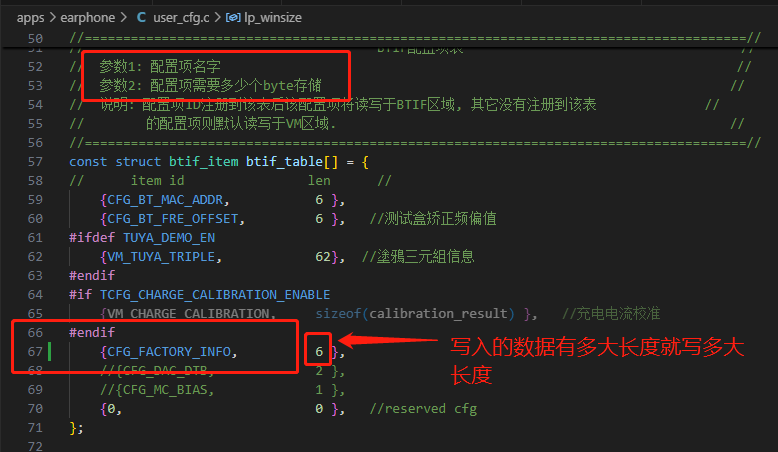

2、将该索引放到蓝牙配置区（蓝牙配置区只允许写一次，要重复写的话请忽略本步骤，但重复写时会受到VM地址的影响，需要固定VM地址，固定VM地址的方式见关于VM、蓝牙配置区和4K预留区.otl）
3、代码上使用syscfg_write写入，使用syscfg_read读取
禁止在中断中写入数据，判断是否在中断中见CPU&OS相关应用.otl

syscfg_write(CFG_FACTORY_INFO, factory_info, 6);
syscfg_read(CFG_FACTORY_INFO, factory_info, 6);

模拟烧录器写认证码注意：如果需要烧写mac地址，则此步骤必须放在烧写mac地址之后，保险起见，生产前要模拟产线流程，看看写完认证码之后耳机的MAC地址有没有问题。
此方式是将数据写入flash最后4K的倒数256字节偏移80字节处，认证码最长支持
256-80-4=172字节
此方式不受”擦除VM和BT配置区”的影响。
烧录器烧认证码参考：蓝牙音频APP相关应用.otl

#define LIC_PAGE_OFFSET         80

typedef enum _FLASH_ERASER {
    CHIP_ERASER = 0,
    BLOCK_ERASER,
    SECTOR_ERASER,
    PAGE_ERASER,
} FLASH_ERASER;

typedef struct __flash_of_lic_para_head {
    s16 crc;
    u16 string_len;
    const u8 para_string[];
} __attribute__((packed)) _flash_of_lic_para_head;

extern bool sfc_erase(int cmd, u32 addr);
extern u32 sfc_write(const u8 *buf, u32 addr, u32 len);

//将认证码信息保存到flash里面
int license2flash(const u8 *data, u16 len)
{
    _flash_of_lic_para_head header;
    u8 buffer[256];
    u32 flash_capacity = sdfile_get_disk_capacity();
    u32 sector = flash_capacity - 4 * 1024;
    u32 page_addr = flash_capacity - 256;
    u8 *auif_ptr = (u8 *)sdfile_flash_addr2cpu_addr(page_addr);

    ///save last 256 byte
    /* memset(buffer, 0xff, sizeof(buffer)); */
    memcpy(buffer, auif_ptr, sizeof(buffer));
    auif_ptr += LIC_PAGE_OFFSET;

    header.string_len = len;
    ///length
    memcpy(&buffer[LIC_PAGE_OFFSET + sizeof(header.crc)], &(header.string_len), sizeof(header.string_len));
    ///context
    memcpy(&buffer[LIC_PAGE_OFFSET + sizeof(header)], data, len);
    ///crc
    header.crc = CRC16(&buffer[LIC_PAGE_OFFSET + sizeof(header.crc)], sizeof(header.string_len) + header.string_len);
    memcpy(&buffer[LIC_PAGE_OFFSET], &(header.crc), sizeof(header.crc));

    ///check if need update data to flash,erease license erea if there are some informations in license erea
    if (!memcmp(auif_ptr, buffer + LIC_PAGE_OFFSET, len + sizeof(_flash_of_lic_para_head))) {
        printf("flash information the same with license\n");
        return 0;
    }

    printf("erase license sector \n");
    sfc_erase(SECTOR_ERASER, sector);

    printf("write license to flash \n");
    sfc_write(buffer, page_addr, 256);

    return 0;
}

static bool license_para_head_check(u8 *para)
{
    _flash_of_lic_para_head *head;

    //fill head
    head = (_flash_of_lic_para_head *)para;

    ///crc check
    u8 *crc_data = (u8 *)(para + sizeof(((_flash_of_lic_para_head *)0)->crc));
    u32 crc_len = sizeof(_flash_of_lic_para_head) - sizeof(((_flash_of_lic_para_head *)0)->crc)/*head crc*/ + (head->string_len)/*content crc,include end character '\0'*/;
    s16 crc_sum = 0;

    crc_sum = CRC16(crc_data, crc_len);

    if (crc_sum != head->crc) {
        printf("license crc error !!! %x %x \n", (u32)crc_sum, (u32)head->crc);
        return false;
    }

    return true;
}

//读取写入的认证码信息，返回值是认证码信息内存地址
const u8 *get_license_ptr(void)
{
    u32 flash_capacity = sdfile_get_disk_capacity();
    u32 flash_addr = flash_capacity - 256 + LIC_PAGE_OFFSET;
    u8 *lic_ptr = NULL;
    _flash_of_lic_para_head *head;

    printf("flash capacity:%x \n", flash_capacity);
    lic_ptr = (u8 *)sdfile_flash_addr2cpu_addr(flash_addr);

    //head length check
    head = (_flash_of_lic_para_head *)lic_ptr;
    if (head->string_len >= 0xff) {
        printf("license length error !!! \n");
        return NULL;
    }

    ////crc check
    if (license_para_head_check(lic_ptr) == (false)) {
        printf("license head check fail\n");
        return NULL;
    }

    //put_buf(lic_ptr, 128);

    lic_ptr += sizeof(_flash_of_lic_para_head);
    return lic_ptr;
}
