703将媒体流音频同时上传PC_mic录音demo实现

📎 原始文档：https://www.kdocs.cn/l/chLupZQO56Ky 703将媒体流音频同时上传PC_mic录音demo实现

参考实现源码：

JL703N_soundbox_2.0.0(patch_01.07)_媒体数据加mic_effec一并PC上行录音demo(20260416).rar
内部gitlab地址：
文件 · feature_703_media2uac · 自由品牌 / 客户支持 / JLStudio / soundbox / JL703Nsoundbox_2.0.0 · GitLab

demo中的主要修改点如下：

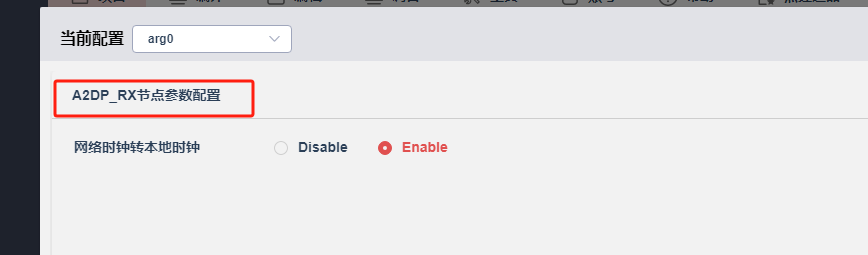

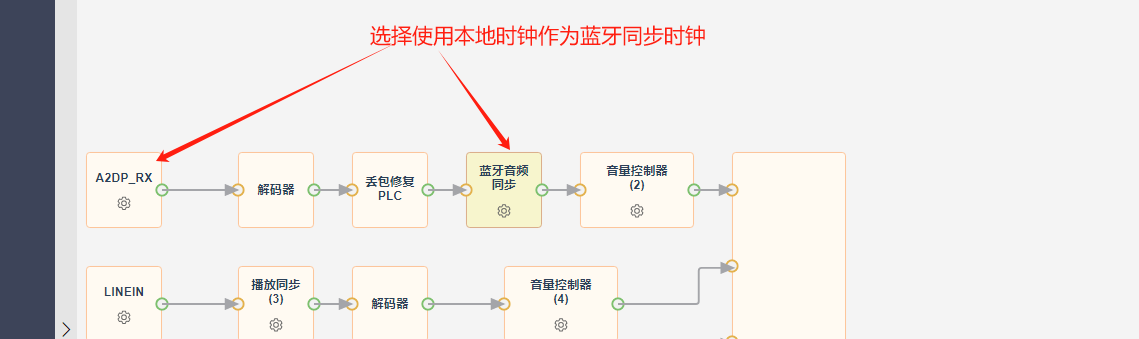

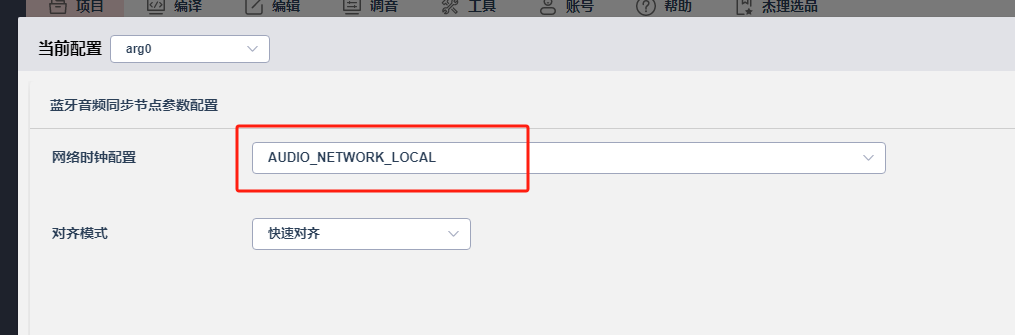

  1. 修改蓝牙同步时钟为本地时钟 imageimageimage

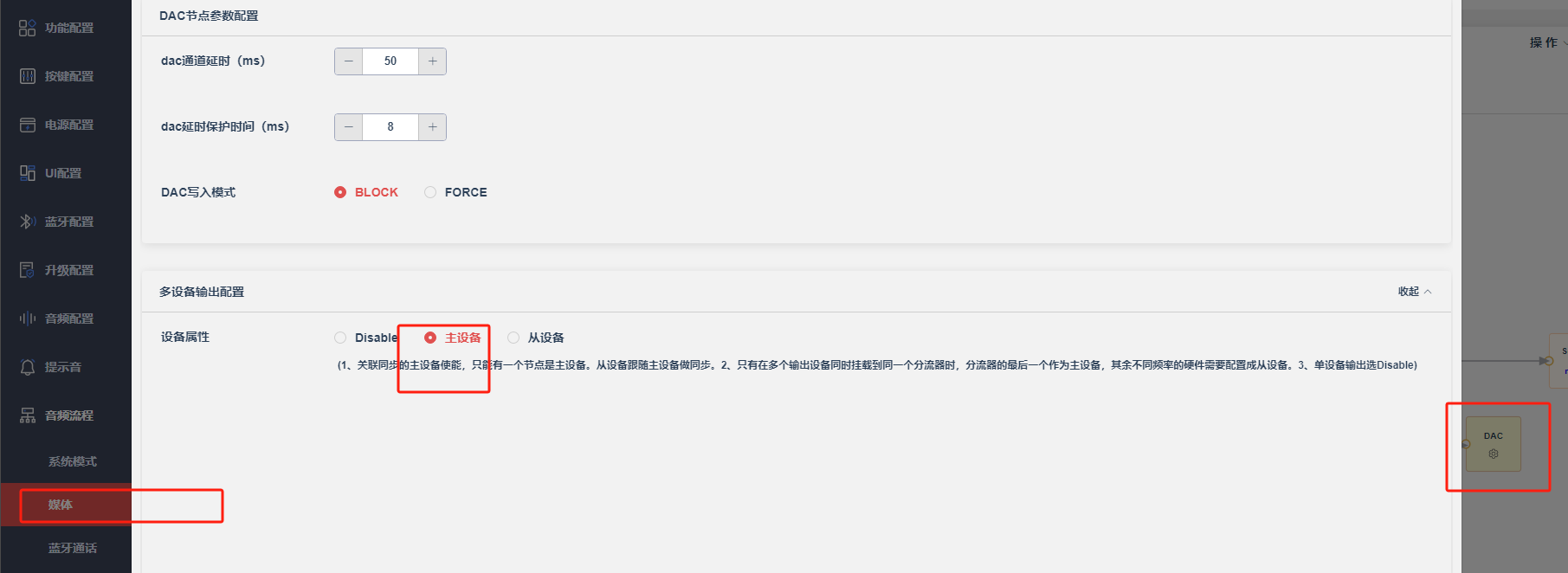

  2. 修改dac输出为主设备输出 image

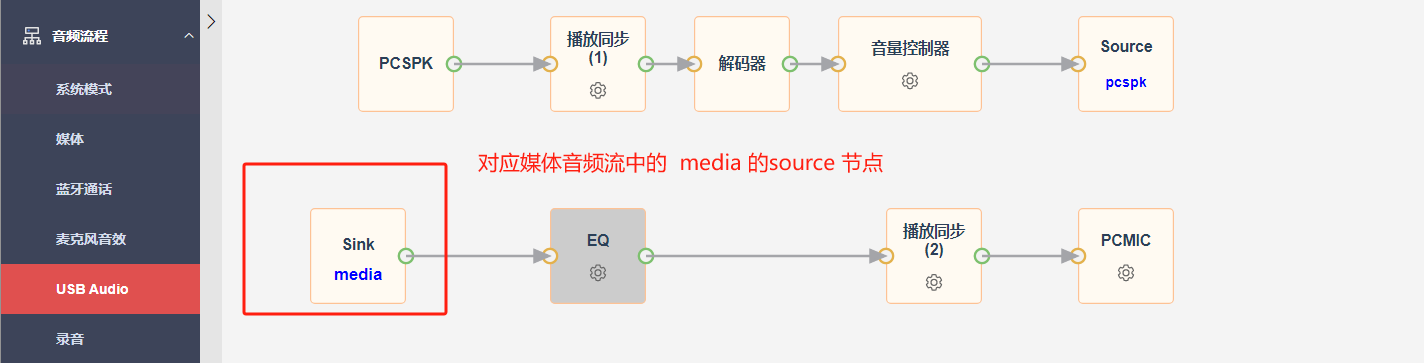

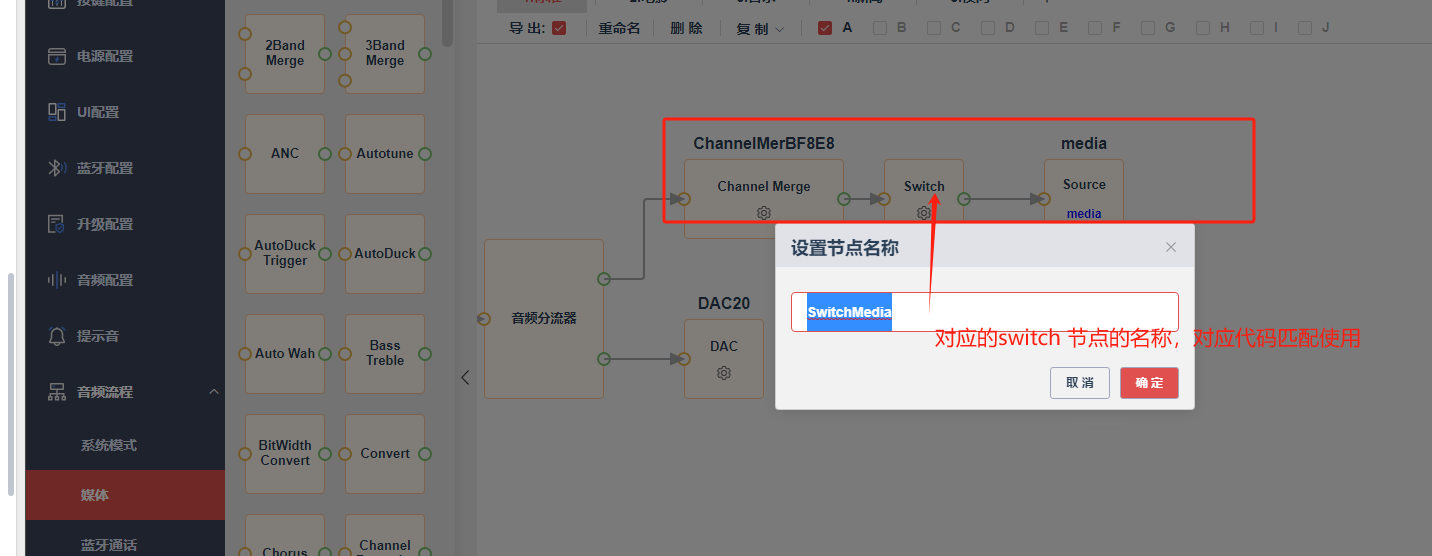

  3. 使用switch 节点将媒体音频流数据同时输出给到PC_MIC 上传 数据流参考如下：

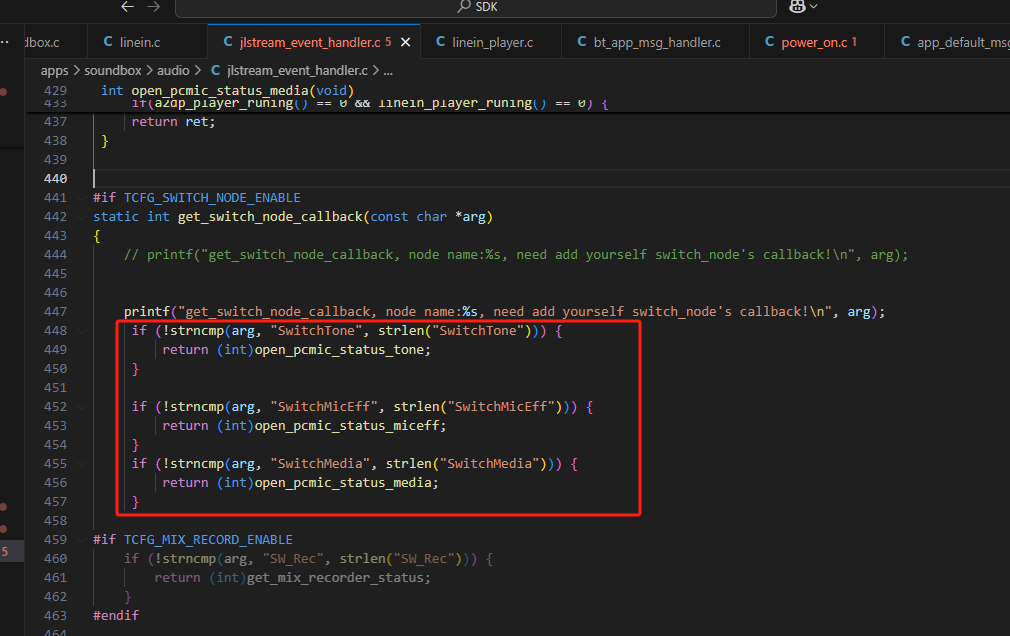

    imageimage 代码修改switch 的获取状态判断代码

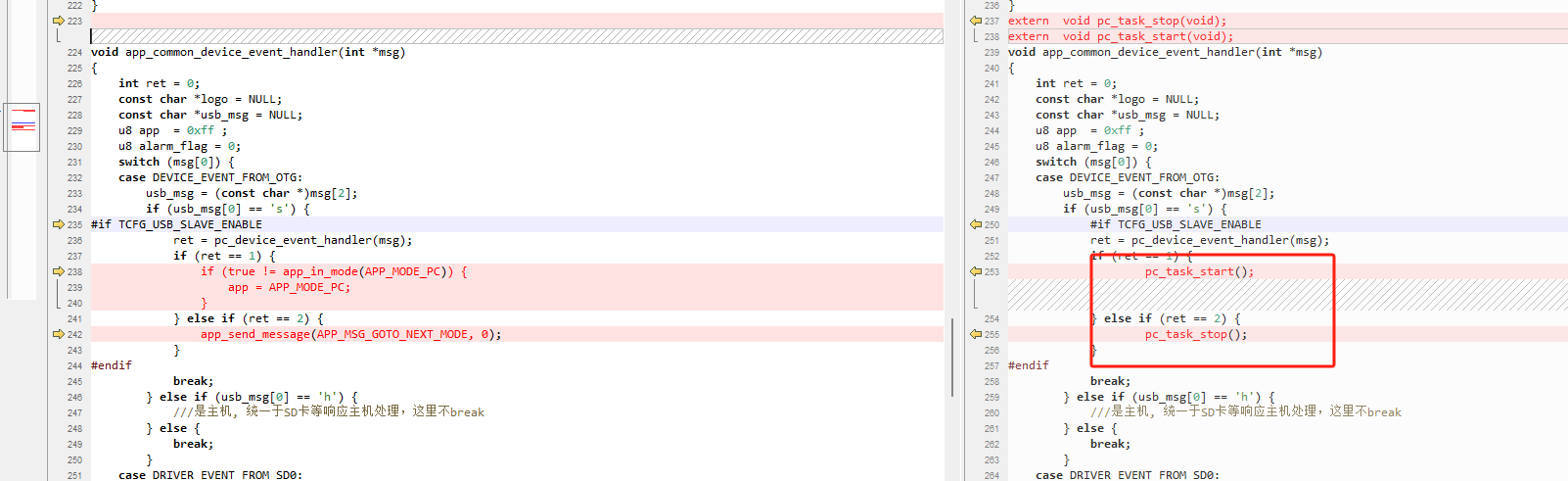

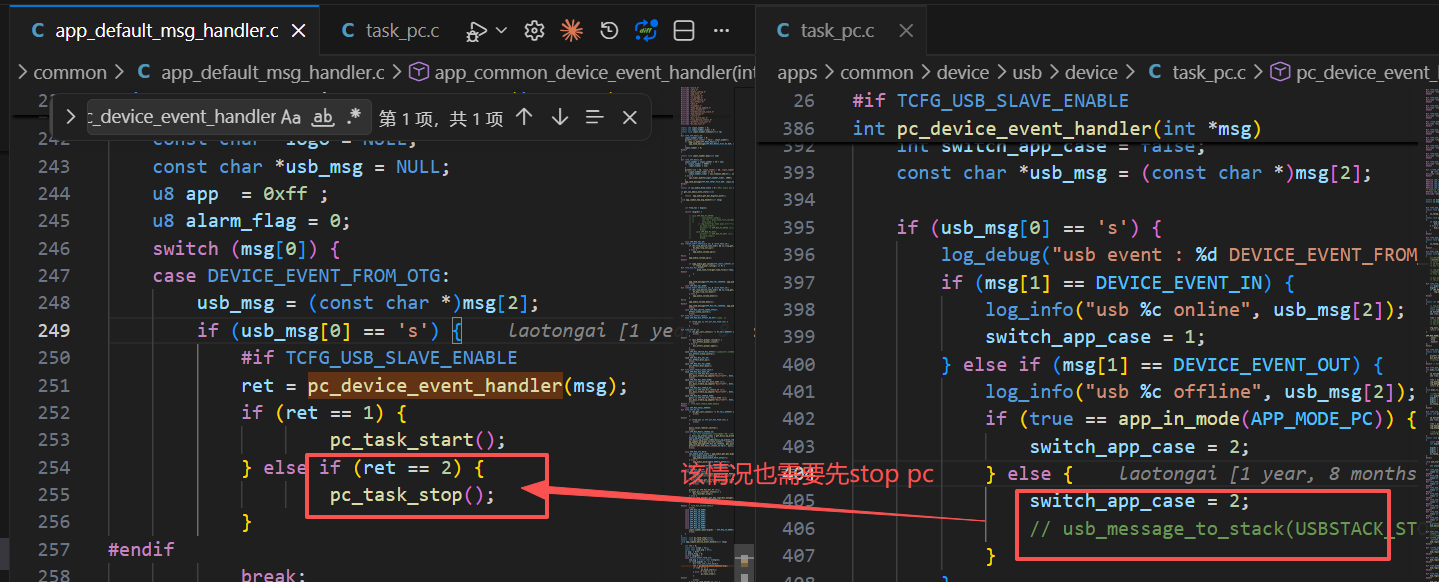

修改USB 插入上线时候，直接启动pc 功能，不需要切换模式
image 处理第一次拔出USB后无法挂载问题

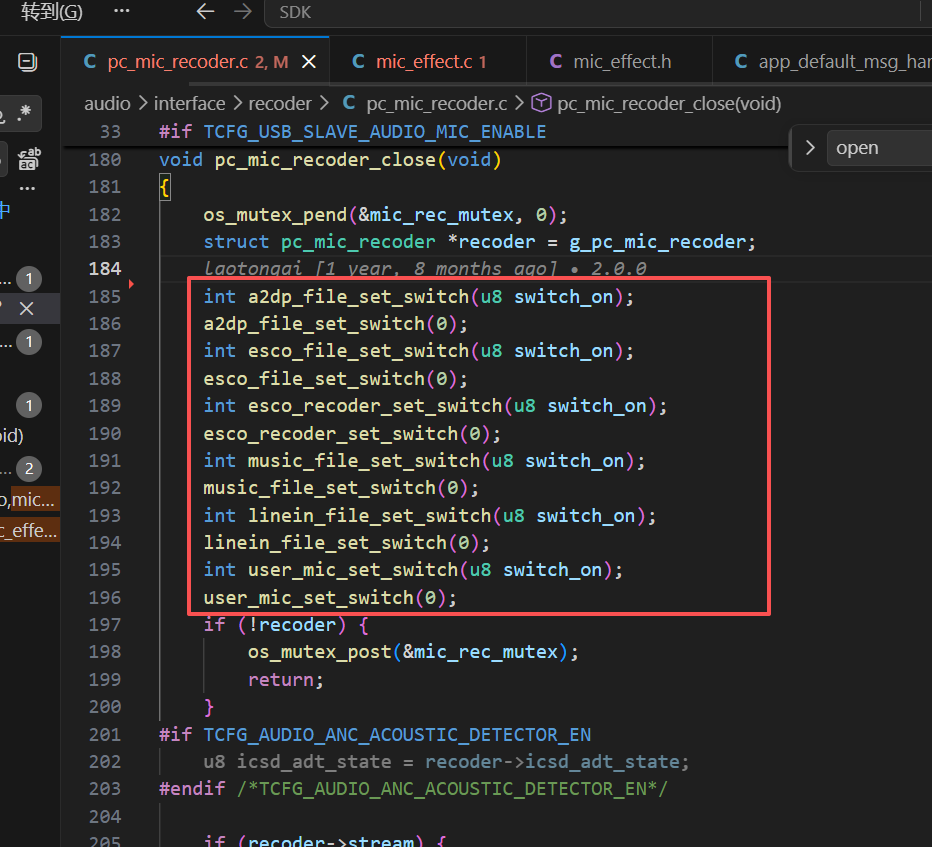

image 处理 在 OTG 上传时直接拔掉USB接口，导致媒体或mic_effect 等switch 上传OTG的数据流dac 无声问题，log 异常一直打印fffffffff

    int a2dp_file_set_switch(u8 switch_on);
    a2dp_file_set_switch(0);
    int esco_file_set_switch(u8 switch_on);
    esco_file_set_switch(0);
    int esco_recoder_set_switch(u8 switch_on);
    esco_recoder_set_switch(0);
    int music_file_set_switch(u8 switch_on);
    music_file_set_switch(0);
    int linein_file_set_switch(u8 switch_on);
    linein_file_set_switch(0);
    int user_mic_set_switch(u8 switch_on);
    user_mic_set_switch(0);

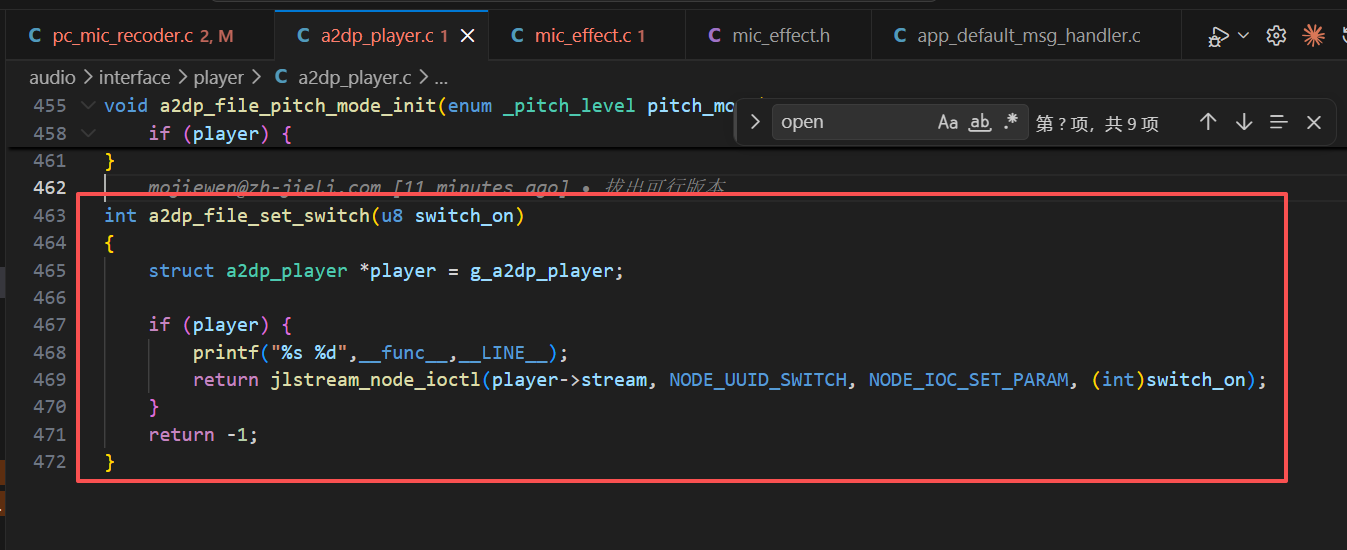

int a2dp_file_set_switch(u8 switch_on)
{
    struct a2dp_player *player = g_a2dp_player;

    if (player) {
        printf("%s %d",__func__,__LINE__);
        return jlstream_node_ioctl(player->stream, NODE_UUID_SWITCH, NODE_IOC_SET_PARAM, (int)switch_on);
    }
    return -1;
}

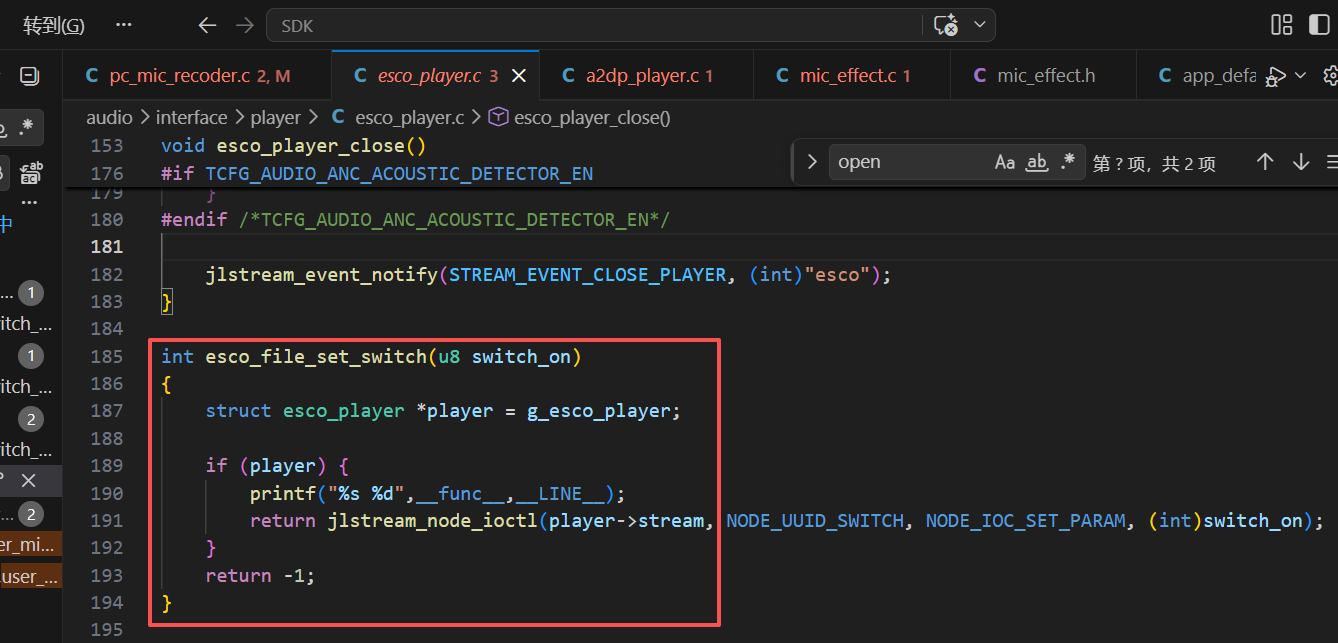

int esco_file_set_switch(u8 switch_on)
{
    struct esco_player *player = g_esco_player;

    if (player) {
        printf("%s %d",__func__,__LINE__);
        return jlstream_node_ioctl(player->stream, NODE_UUID_SWITCH, NODE_IOC_SET_PARAM, (int)switch_on);
    }
    return -1;
}

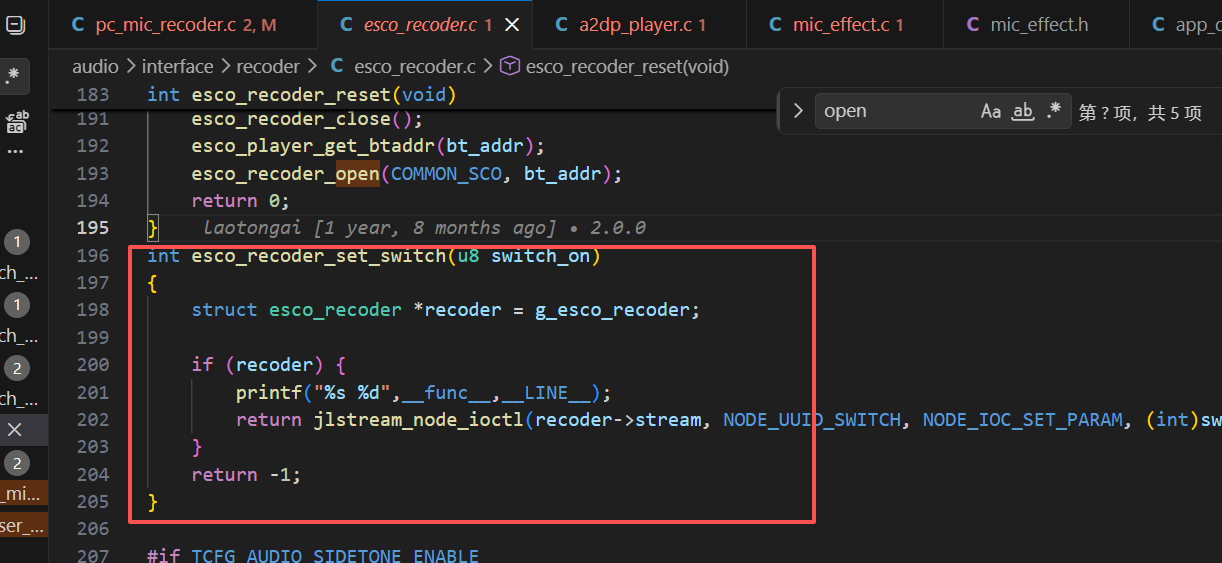

int esco_recoder_set_switch(u8 switch_on)
{
    struct esco_recoder *recoder = g_esco_recoder;

    if (recoder) {
        printf("%s %d",__func__,__LINE__);
        return jlstream_node_ioctl(recoder->stream, NODE_UUID_SWITCH, NODE_IOC_SET_PARAM, (int)switch_on);
    }
    return -1;
}

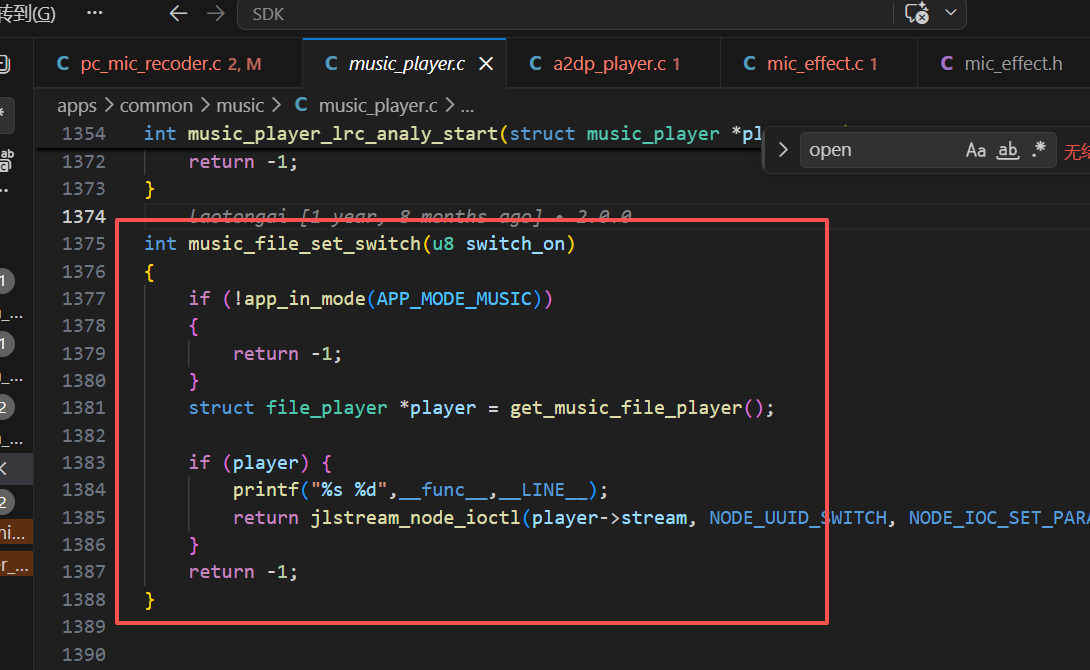

int music_file_set_switch(u8 switch_on)
{
    if (!app_in_mode(APP_MODE_MUSIC))
    {
        return -1;
    }
    struct file_player *player = get_music_file_player();

    if (player) {
        printf("%s %d",__func__,__LINE__);
        return jlstream_node_ioctl(player->stream, NODE_UUID_SWITCH, NODE_IOC_SET_PARAM, (int)switch_on);
    }
    return -1;
}

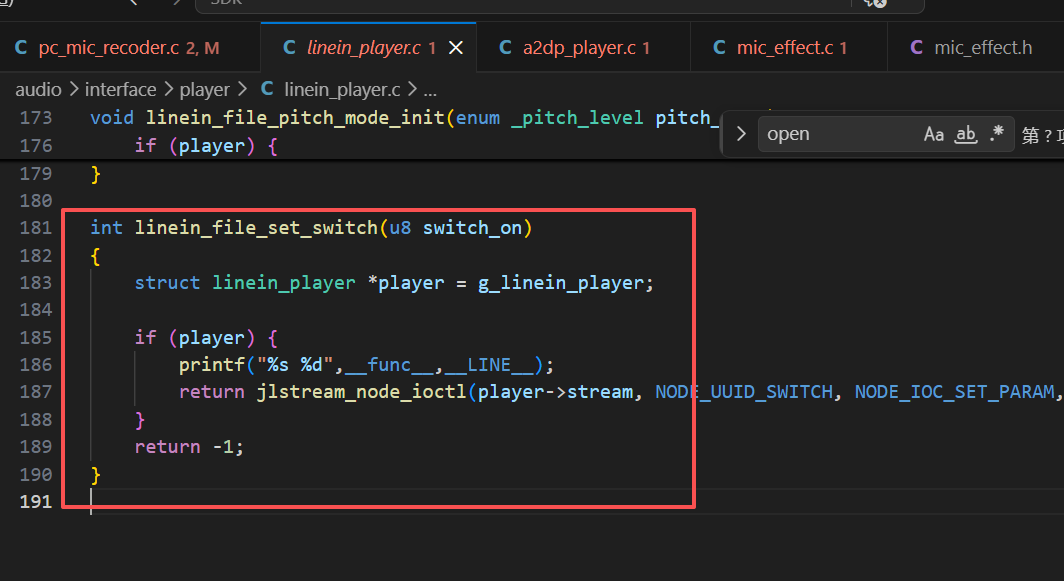

int linein_file_set_switch(u8 switch_on)
{
    struct linein_player *player = g_linein_player;

    if (player) {
        printf("%s %d",__func__,__LINE__);
        return jlstream_node_ioctl(player->stream, NODE_UUID_SWITCH, NODE_IOC_SET_PARAM, (int)switch_on);
    }
    return -1;
}

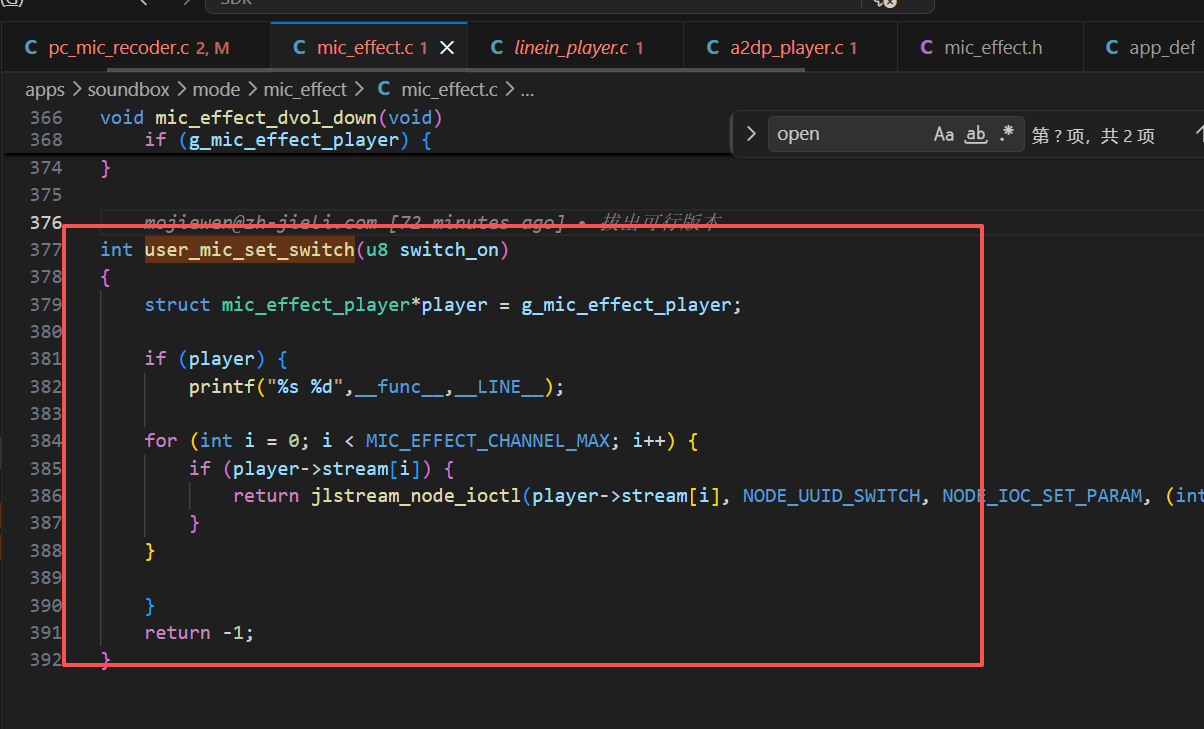

int user_mic_set_switch(u8 switch_on)
{
    struct mic_effect_player*player = g_mic_effect_player;

    if (player) {
        printf("%s %d",__func__,__LINE__);

    for (int i = 0; i < MIC_EFFECT_CHANNEL_MAX; i++) {
        if (player->stream[i]) {
            return jlstream_node_ioctl(player->stream[i], NODE_UUID_SWITCH, NODE_IOC_SET_PARAM, (int)switch_on);
        }
    }

    }
    return -1;
}
