AC706N-le_audio-200SDK有线_无线麦录音demo

📎 原始文档：https://www.kdocs.cn/l/ca4cWEEsOC9L AC706N-le_audio-200SDK有线/无线麦录音demo

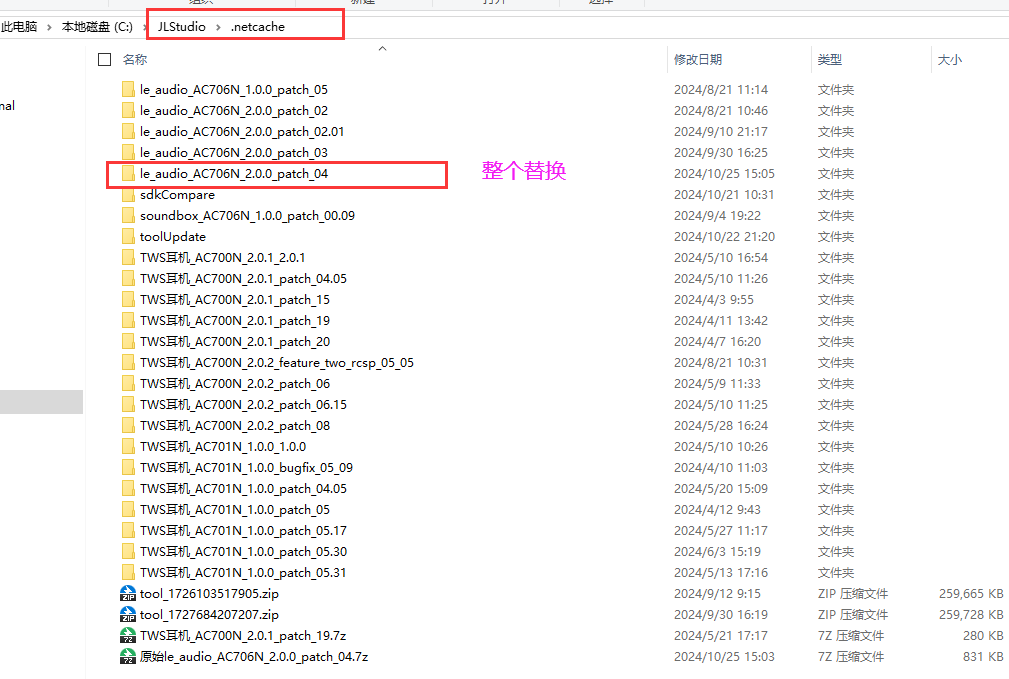

一、添加补丁程序：

【金山文档 | WPS云文档】 241104_706N_LE_AUDIO_200sdk_解决 package node 节点释放导致写异常的问题_media
https://kdocs.cn/l/cfwc1ivUZQbz
【金山文档 | WPS云文档】 le_audio_AC706N_2.0.0_patch_04_录音数据流修改补丁
https://kdocs.cn/l/cbdmZTiOqLR5

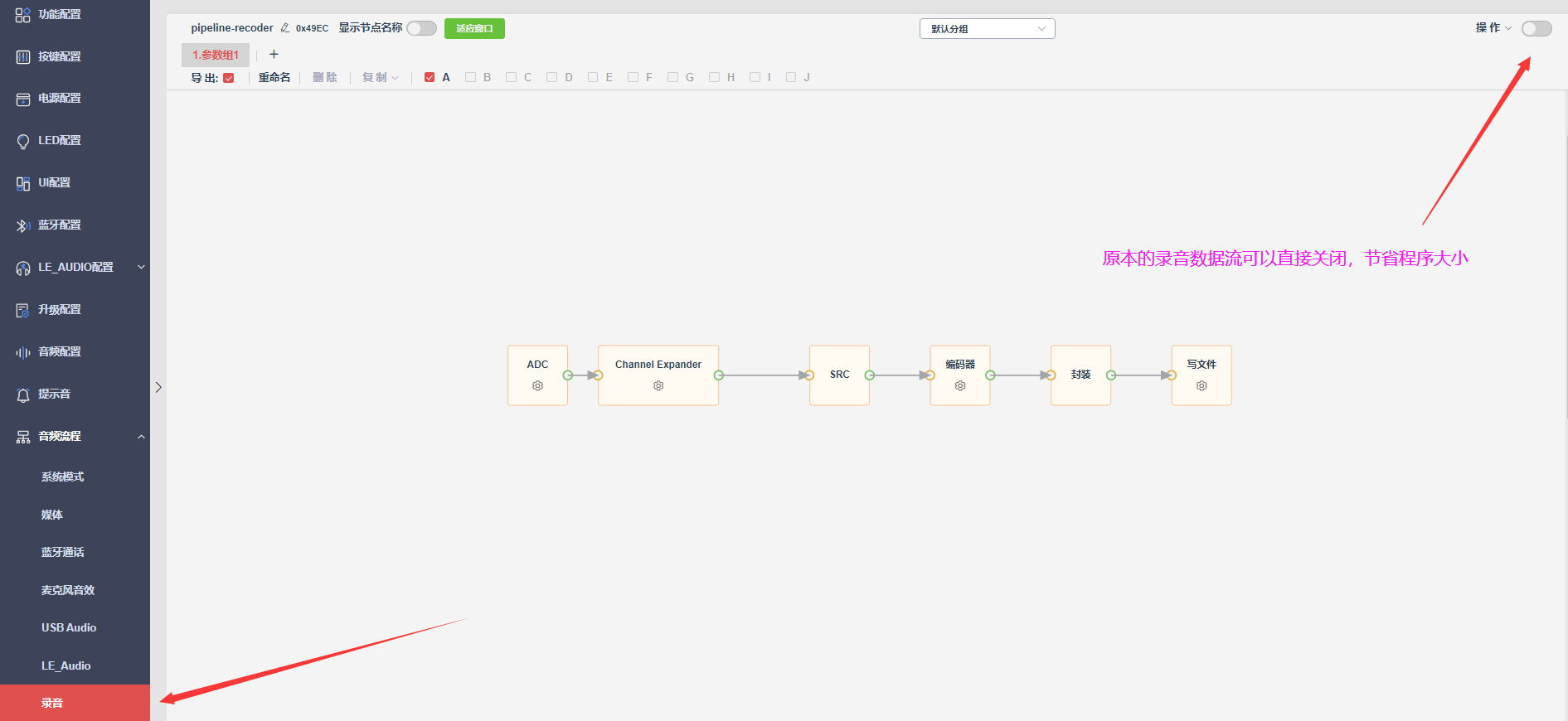

二、数据流修改：

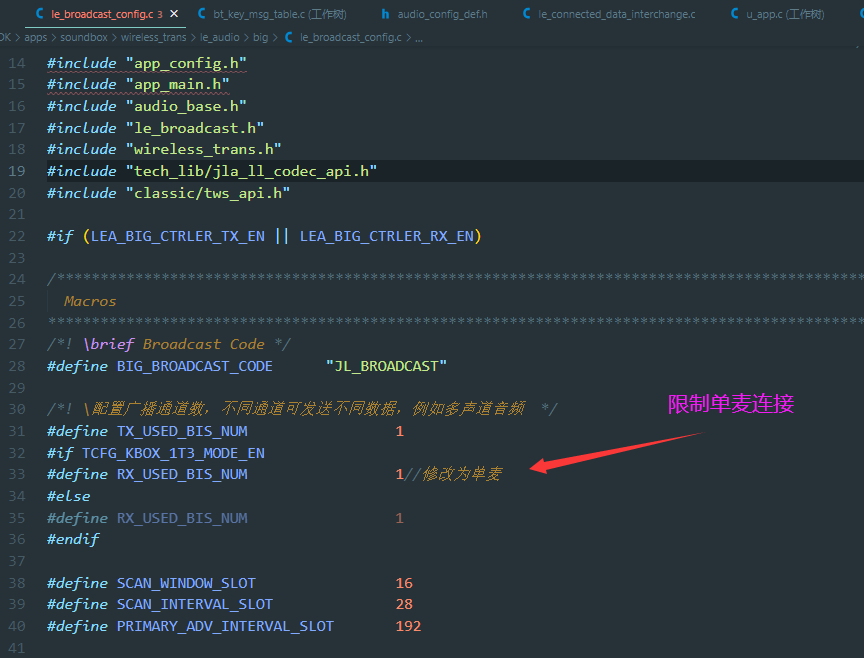

1、目前资源限制，开启有线无线录音功能后，ram资源效果较多，demo修改限制为单无线麦连接

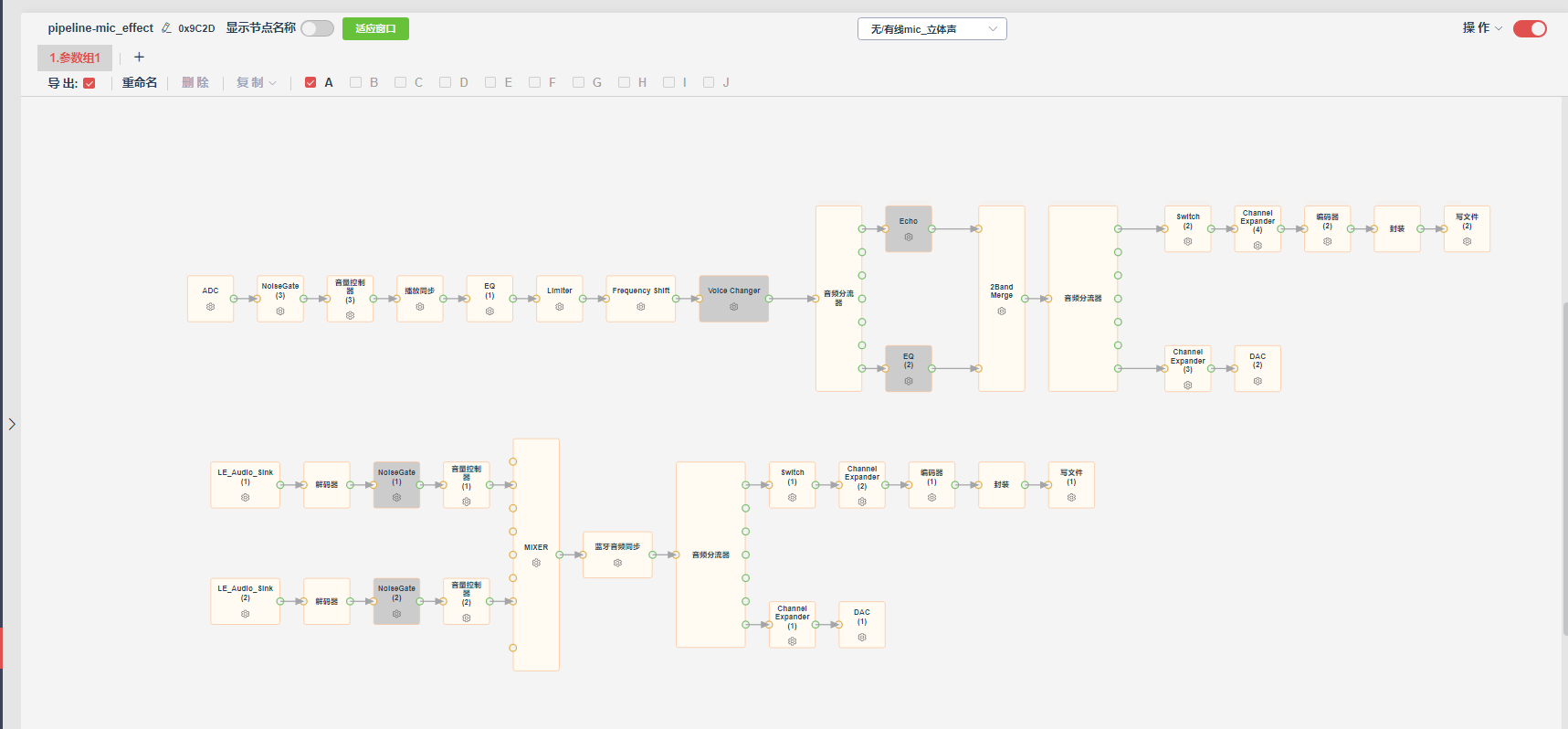

2、demo 有线无线单声道：

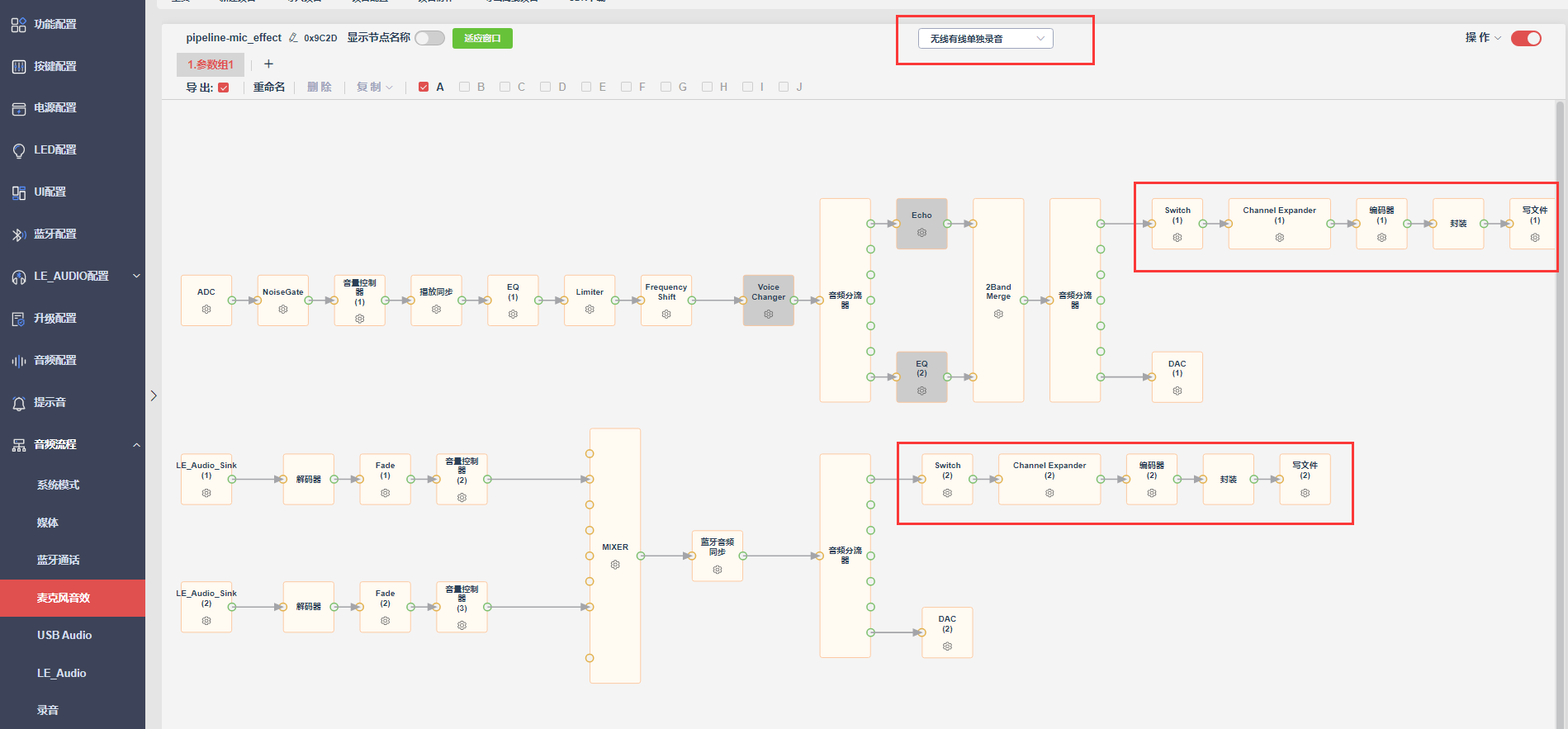

有线无线立体声：

三、程序修改：

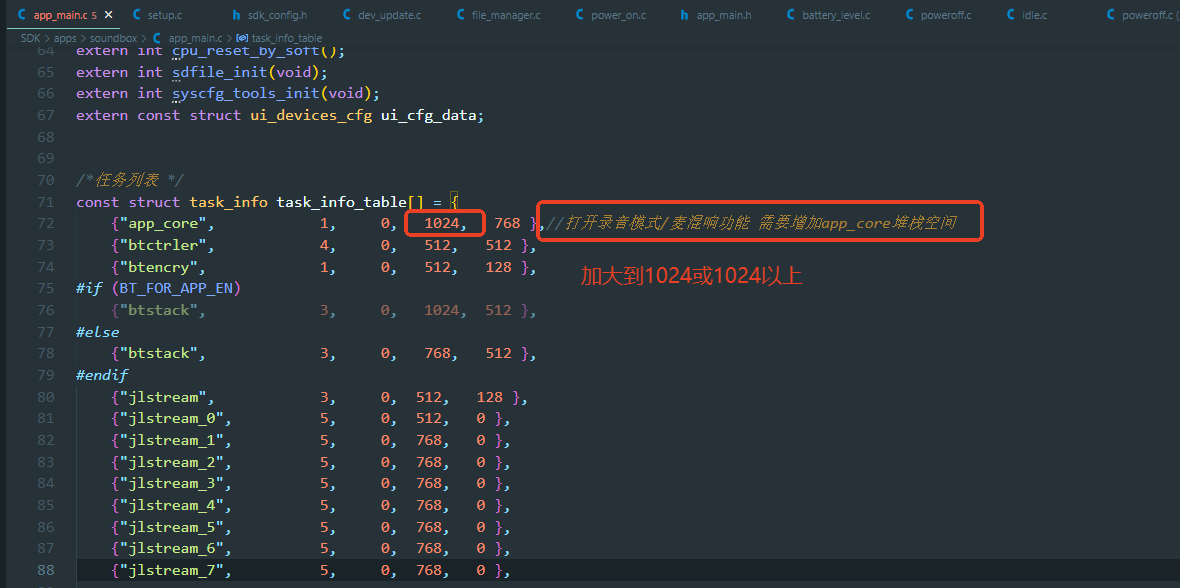

app_main.c

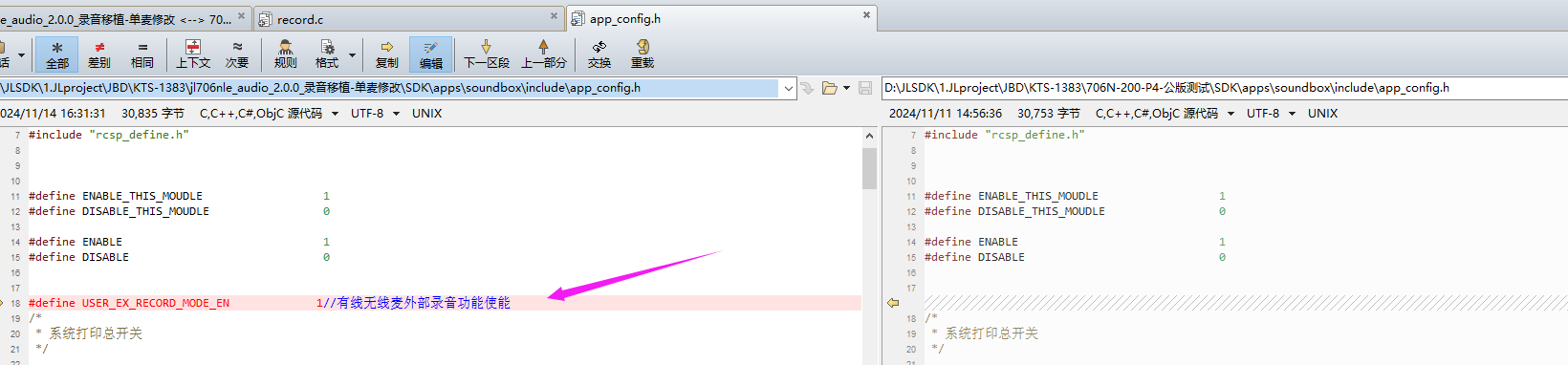

app_config.h

#define USER_EX_RECORD_MODE_EN               1//有线无线麦外部录音功能使能

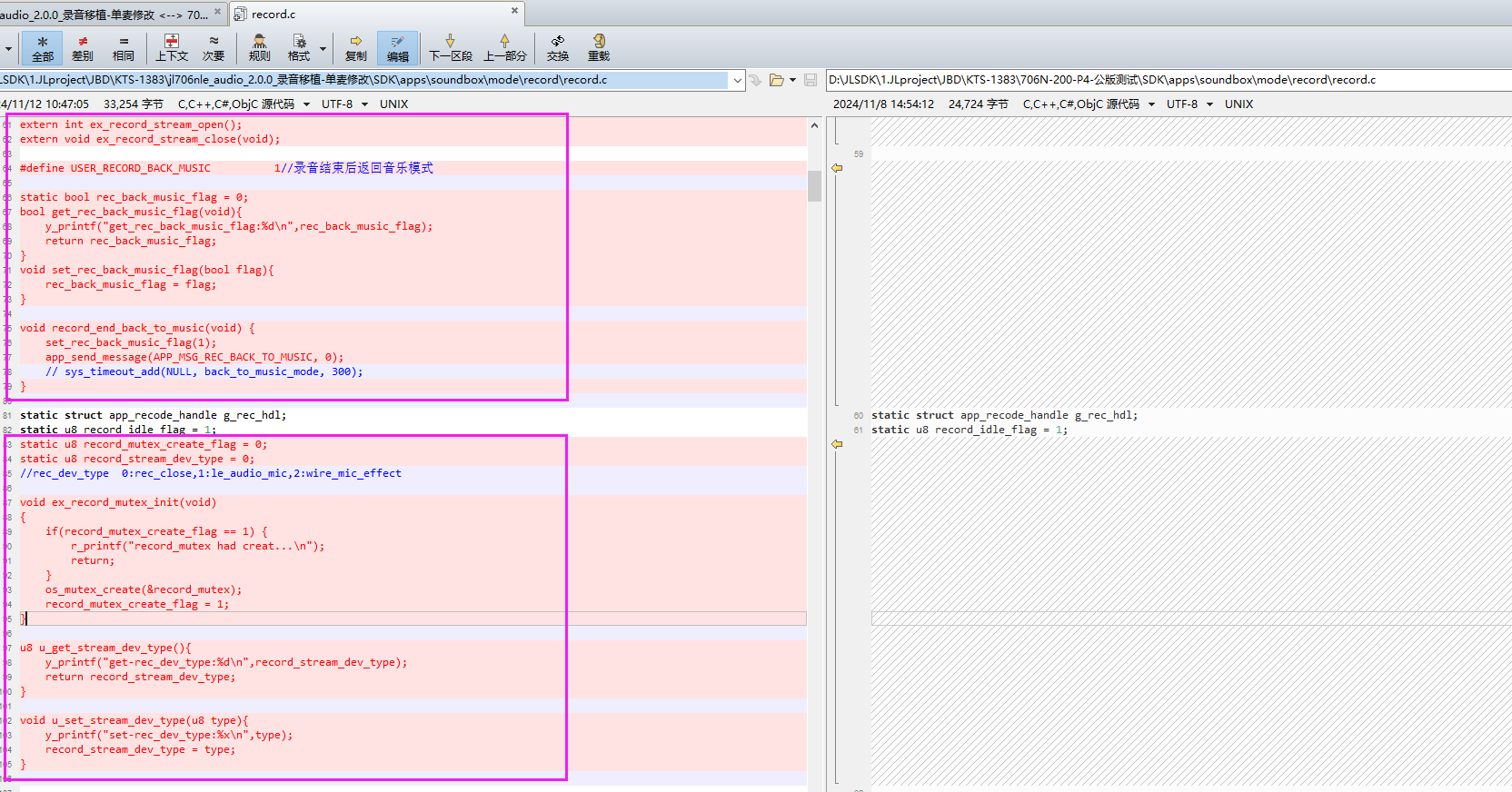

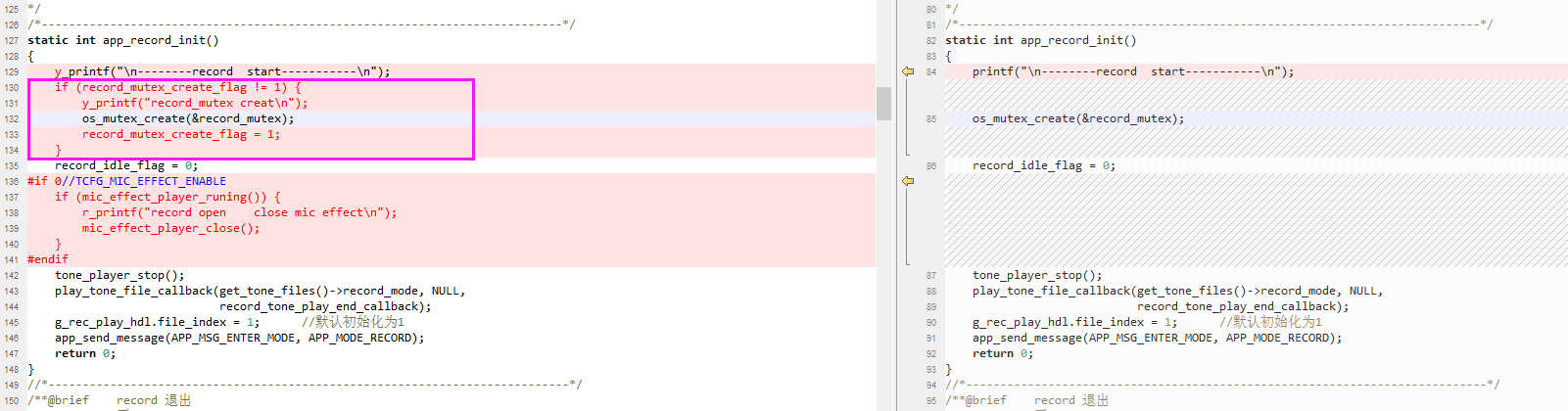

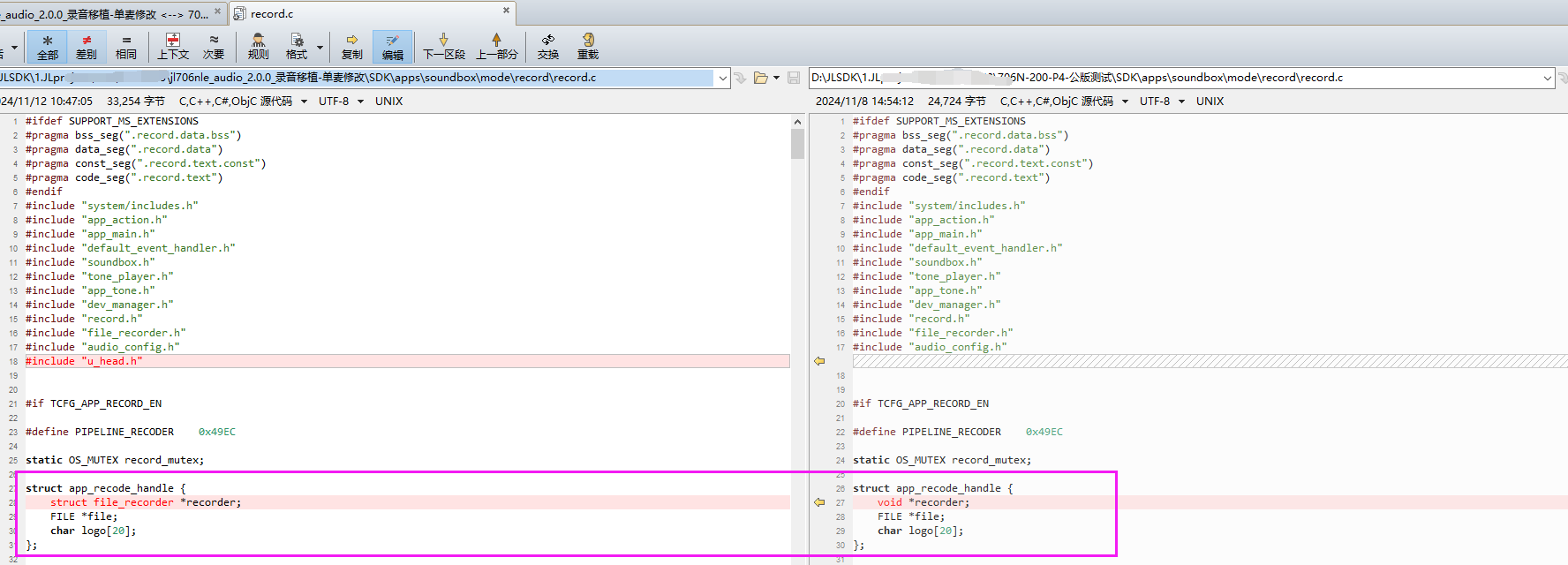

record.c

struct app_recode_handle {
    struct file_recorder *recorder;
    FILE *file;
    char logo[20];
};

extern int get_rec_stream_state();
extern int ex_record_stream_open();
extern void ex_record_stream_close(void);

#define USER_RECORD_BACK_MUSIC          1//录音结束后返回音乐模式

static bool rec_back_music_flag = 0;
bool get_rec_back_music_flag(void){
    y_printf("get_rec_back_music_flag:%d\n",rec_back_music_flag);
    return rec_back_music_flag;
}
void set_rec_back_music_flag(bool flag){
    rec_back_music_flag = flag;
}

void record_end_back_to_music(void) {
    set_rec_back_music_flag(1);
    app_send_message(APP_MSG_REC_BACK_TO_MUSIC, 0);
    // sys_timeout_add(NULL, back_to_music_mode, 300);
}



static u8 record_mutex_create_flag = 0;
static u8 record_stream_dev_type = 0;
//rec_dev_type  0:rec_close,1:le_audio_mic,2:wire_mic_effect

void ex_record_mutex_init(void)
{
    if(record_mutex_create_flag == 1) {
        r_printf("record_mutex had creat...\n");
        return;
    }
    os_mutex_create(&record_mutex);
    record_mutex_create_flag = 1;
}

u8 u_get_stream_dev_type(){
    y_printf("get-rec_dev_type:%d\n",record_stream_dev_type);
    return record_stream_dev_type;
}

void u_set_stream_dev_type(u8 type){
    y_printf("set-rec_dev_type:%x\n",type);
    record_stream_dev_type = type;
}

    if (record_mutex_create_flag != 1) {
        y_printf("record_mutex creat\n");
        os_mutex_create(&record_mutex);
        record_mutex_create_flag = 1;
    }

        extern int get_rec_stream_state();
        extern int ex_record_stream_open();
        extern void ex_record_stream_close(void);

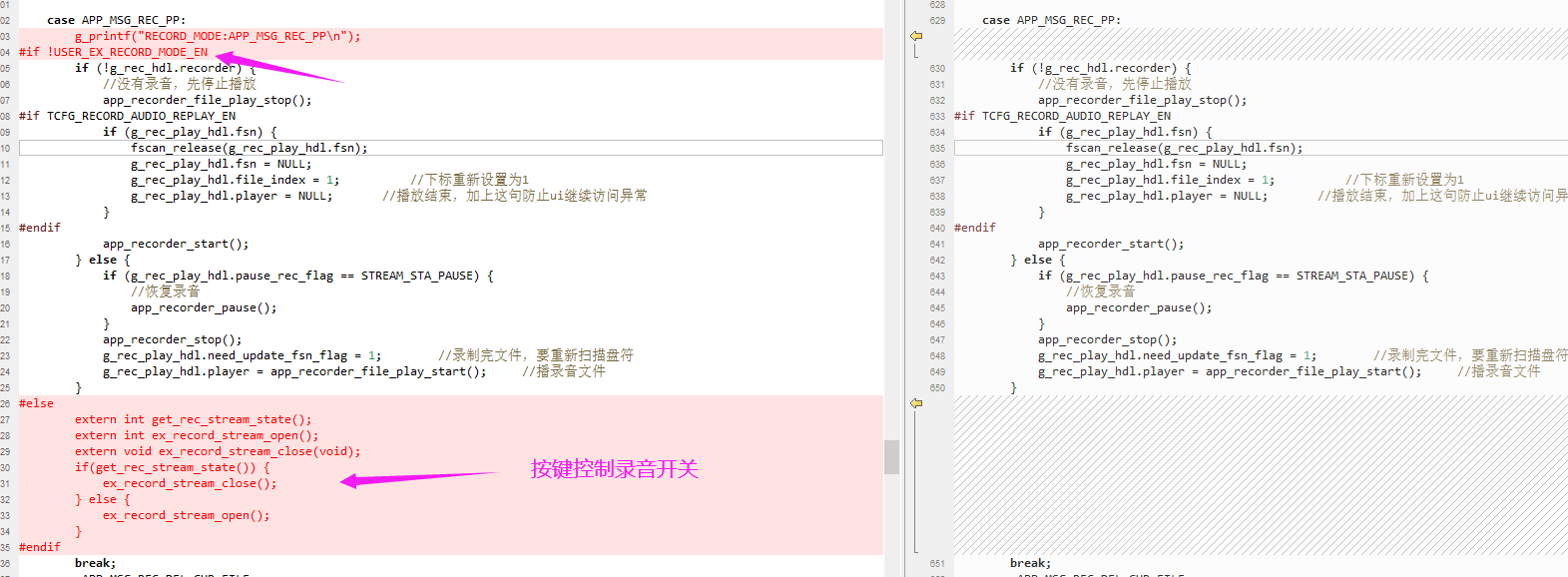

        if(get_rec_stream_state()) {
            ex_record_stream_close();
        } else {
            ex_record_stream_open();
        }

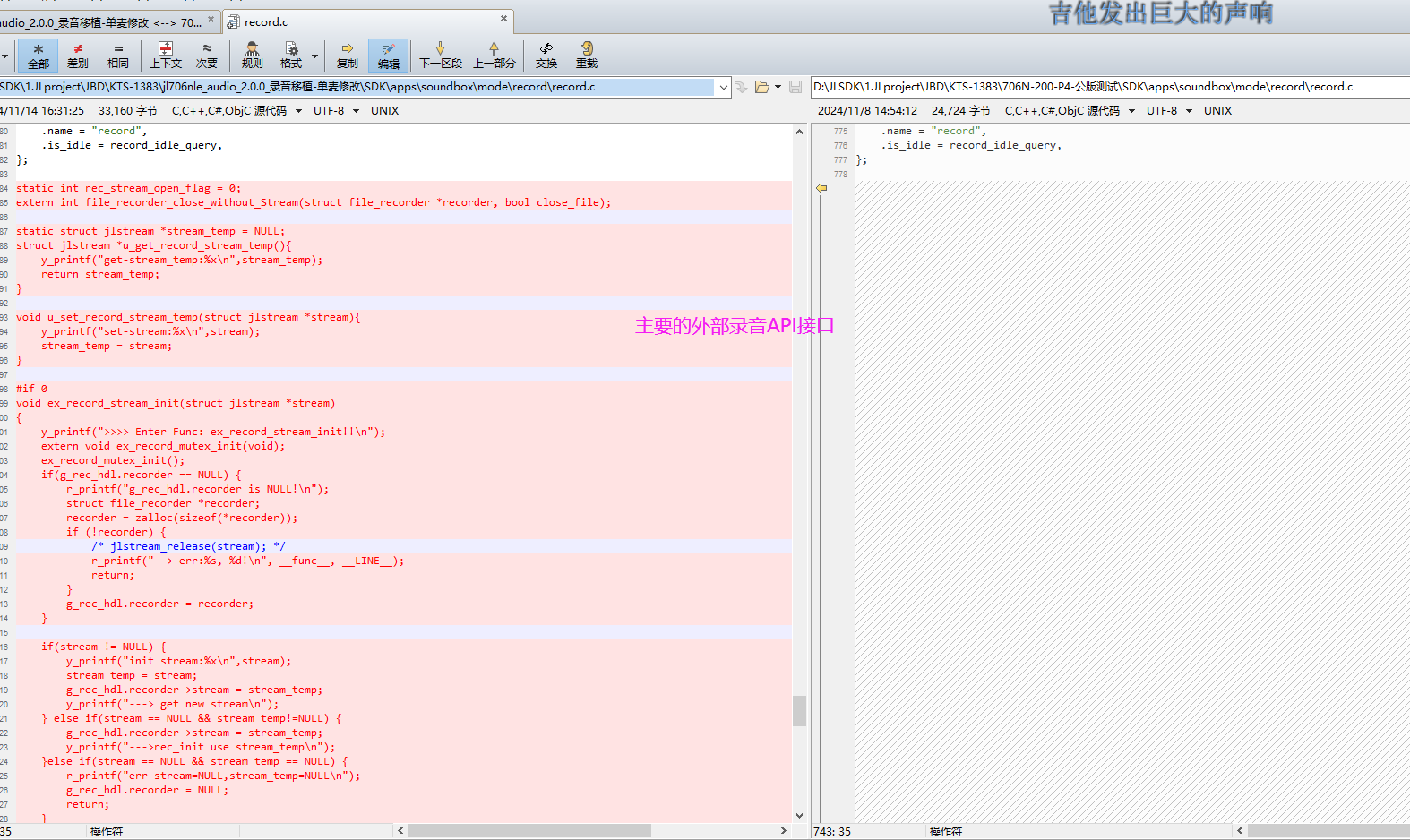

static int rec_stream_open_flag = 0;
extern int file_recorder_close_without_Stream(struct file_recorder *recorder, bool close_file);

static struct jlstream *stream_temp = NULL;
struct jlstream *u_get_record_stream_temp(){
    y_printf("get-stream_temp:%x\n",stream_temp);
    return stream_temp;
}

void u_set_record_stream_temp(struct jlstream *stream){
    y_printf("set-stream:%x\n",stream);
    stream_temp = stream;
}

#if 0
void ex_record_stream_init(struct jlstream *stream)
{
    y_printf(">>>> Enter Func: ex_record_stream_init!!\n");
    extern void ex_record_mutex_init(void);
    ex_record_mutex_init();
    if(g_rec_hdl.recorder == NULL) {
        r_printf("g_rec_hdl.recorder is NULL!\n");
        struct file_recorder *recorder;
        recorder = zalloc(sizeof(*recorder));
        if (!recorder) {
            /* jlstream_release(stream); */
            r_printf("--> err:%s, %d!\n", __func__, __LINE__);
            return;
        }
        g_rec_hdl.recorder = recorder;
    }

    if(stream != NULL) {
        y_printf("init stream:%x\n",stream);
        stream_temp = stream;
        g_rec_hdl.recorder->stream = stream_temp;
        y_printf("---> get new stream\n");
    } else if(stream == NULL && stream_temp!=NULL) {
        g_rec_hdl.recorder->stream = stream_temp;
        y_printf("--->rec_init use stream_temp\n");
    }else if(stream == NULL && stream_temp == NULL) {
        r_printf("err stream=NULL,stream_temp=NULL\n");
        g_rec_hdl.recorder = NULL;
        return;
    }
}
#else
void ex_record_stream_init(struct jlstream *stream)
{
    y_printf(">>>> Enter Func: ex_record_stream_init!!\n");
    if(stream != NULL) {
        y_printf("init stream:%x\n",stream);
        stream_temp = stream;
        y_printf("---> get new stream\n");
    } else if(stream == NULL && stream_temp!=NULL) {
        y_printf("--->rec_init use stream_temp\n");
    }else if(stream == NULL && stream_temp == NULL) {
        r_printf("err stream=NULL,stream_temp=NULL\n");
        return;
    }
}
#endif

int ex_record_stream_open()
{
    if (!dev_manager_get_total(0)) {
        r_printf("--> err:%s, %d!\n", __func__, __LINE__);
        return -1;
    }

    if ((get_cur_le_audio_player_cnt()==0) && (mic_effect_player_runing()==0)) {
        r_printf("ex_record_stream_open err!!!  no record_mic online\n");
        return -1;
    }

    if(rec_stream_open_flag == 0) {
        if(g_rec_hdl.recorder == NULL) {
            r_printf("g_rec_hdl.recorder is NULL!\n");
            struct file_recorder *recorder;
            recorder = zalloc(sizeof(*recorder));
            if (!recorder) {
                /* jlstream_release(stream); */
                r_printf("--> err:%s, %d!\n", __func__, __LINE__);
                return -1;
            }
            g_rec_hdl.recorder = recorder;
        }

        if(stream_temp != NULL) {
            y_printf("open stream:%x\n",stream_temp);
            g_rec_hdl.recorder->stream = stream_temp;
            y_printf("--->rec_open use stream_temp\n");
        } else {
            r_printf("--> err:%s, %d!\n", __func__, __LINE__);
            g_rec_hdl.recorder = NULL;
            return -1;
        }

        struct stream_enc_fmt fmt;
        g_printf("0000 open stream:%x\n",g_rec_hdl.recorder->stream);
        int err = file_recorder_get_fmt(g_rec_hdl.recorder, &fmt);
        if (err) {
            file_recorder_close(g_rec_hdl.recorder, 0);
            r_printf("--> err:%s, %d!\n", __func__, __LINE__);
            return -1;
        }
        printf("recorder_fmt: ch %d, sample rate %d\n", fmt.channel, fmt.sample_rate);

        const char *suffix;
        switch (fmt.coding_type) {
            case AUDIO_CODING_PCM:
            case AUDIO_CODING_WAV:
                suffix = "wav";
                break;
            case AUDIO_CODING_MP3:
                suffix = "mp3";
                break;
            default:
                suffix = "bin";
                break;
        }
        char folder[] = {TCFG_REC_FOLDER_NAME};         //录音文件夹名称
        char filename[] = {TCFG_REC_FILE_NAME};     //录音文件名，不需要加后缀
#if (TCFG_NOR_REC)
        char logo[] = {"rec_nor"};        //外挂flash录音
#elif (FLASH_INSIDE_REC_ENABLE)
        char logo[] = {"rec_sdfile"};        //内置flash录音
#else
        char *logo = dev_manager_get_phy_logo(dev_manager_find_active(0));//普通设备录音，获取最后活动设备
#endif
        char *root_path = dev_manager_get_root_path_by_logo(logo);
        char path[64] = {};
        snprintf(path, sizeof(path), "%s%s/%s.%s", root_path, folder, filename, suffix);
        g_rec_hdl.recorder->file = fopen(path, "w+");
        extern const struct stream_file_ops recorder_fops;
        jlstream_set_enc_file(g_rec_hdl.recorder->stream, g_rec_hdl.recorder, &recorder_fops);

        snprintf(g_rec_hdl.logo, sizeof(g_rec_hdl.logo), "%s", logo);
        g_rec_hdl.file      = g_rec_hdl.recorder->file;

        //记录播放录音需要的信息
        memcpy(g_rec_play_hdl.path, path, sizeof(path));
        memcpy(g_rec_play_hdl.suffix, suffix, strlen(suffix));
        y_printf("ex_record_stream_open_suscess!!\n");
        rec_stream_open_flag = 1;
    }
    return 0;
}

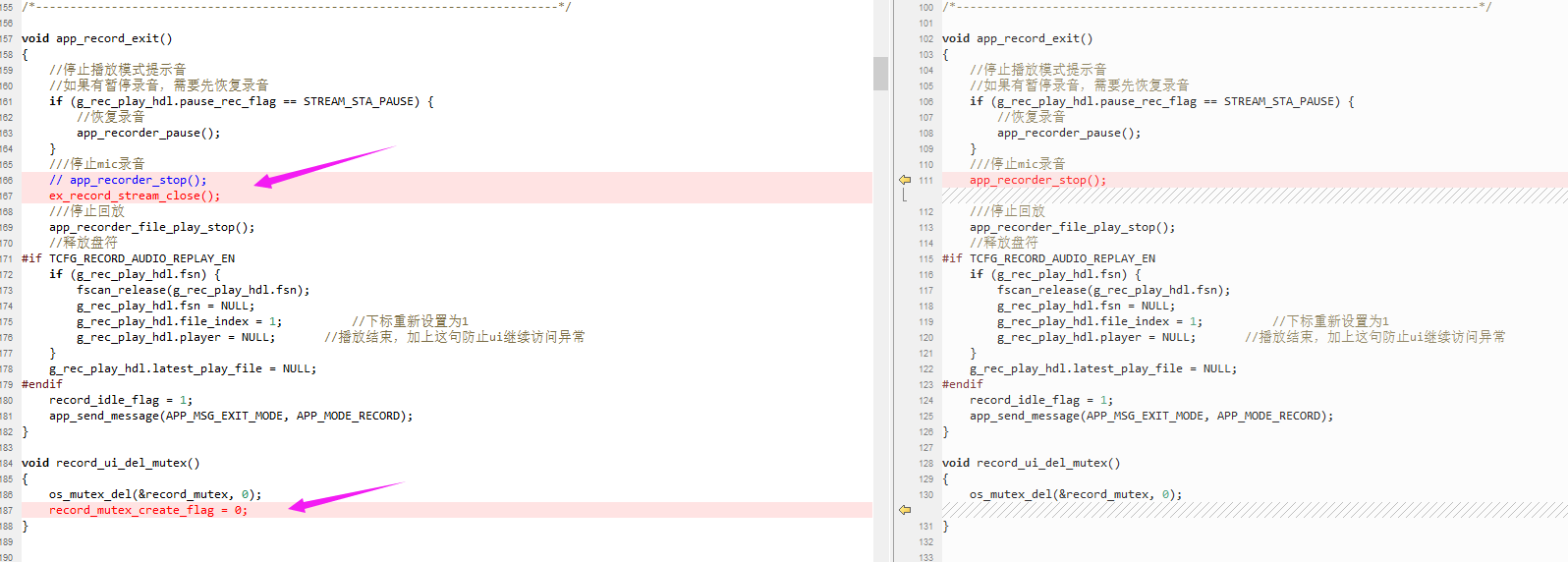

void ex_record_stream_close(void)
{
    if(rec_stream_open_flag == 1) {
        rec_stream_open_flag = 0;
        y_printf(">> Func: ex_record_stream_close!\n");
        os_mutex_pend(&record_mutex, 0);
        //只关文件不关数据流
        file_recorder_close_without_Stream(g_rec_hdl.recorder, 1);
        g_rec_hdl.recorder = NULL;
        os_mutex_post(&record_mutex);
    }
}

//获取录音数据流状态
int get_rec_stream_state()
{
    // y_printf("rec_stream:%d\n",rec_stream_open_flag);
    return rec_stream_open_flag;
}

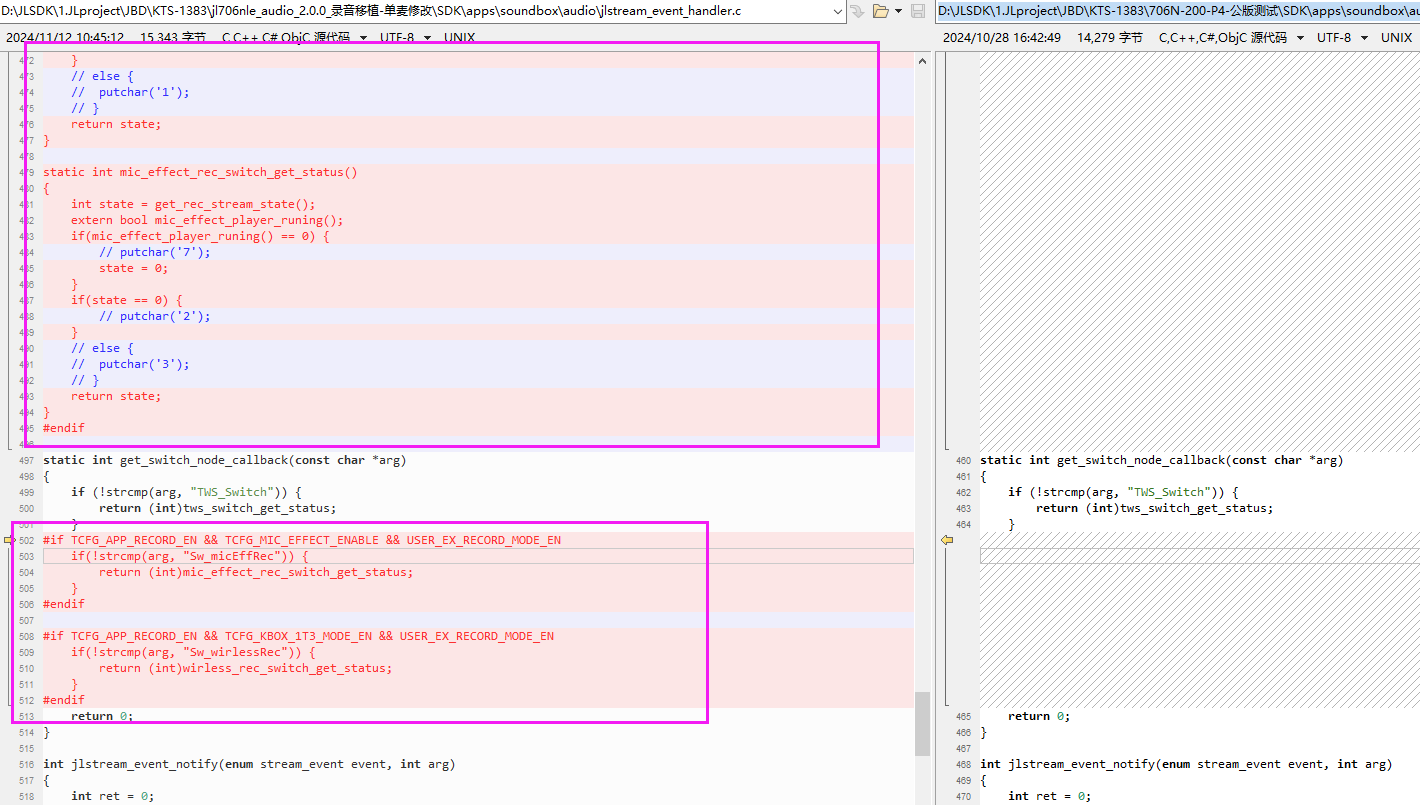

jlstream_event_handler.c

#if TCFG_APP_RECORD_EN && TCFG_KBOX_1T3_MODE_EN && USER_EX_RECORD_MODE_EN
extern int get_rec_stream_state();
static int wirless_rec_switch_get_status()
{
    int state = get_rec_stream_state();
    extern int get_cur_le_audio_player_cnt();
    if(get_cur_le_audio_player_cnt() == 0) {
        // putchar('6');
        state = 0;
    }
    if(state == 0) {
        // putchar('0');
    }
    // else {
    //     putchar('1');
    // }
    return state;
}

static int mic_effect_rec_switch_get_status()
{
    int state = get_rec_stream_state();
    extern bool mic_effect_player_runing();
    if(mic_effect_player_runing() == 0) {
        // putchar('7');
        state = 0;
    }
    if(state == 0) {
        // putchar('2');
    }
    // else {
    //     putchar('3');
    // }
    return state;
}
#endif






#if TCFG_APP_RECORD_EN && TCFG_MIC_EFFECT_ENABLE && USER_EX_RECORD_MODE_EN

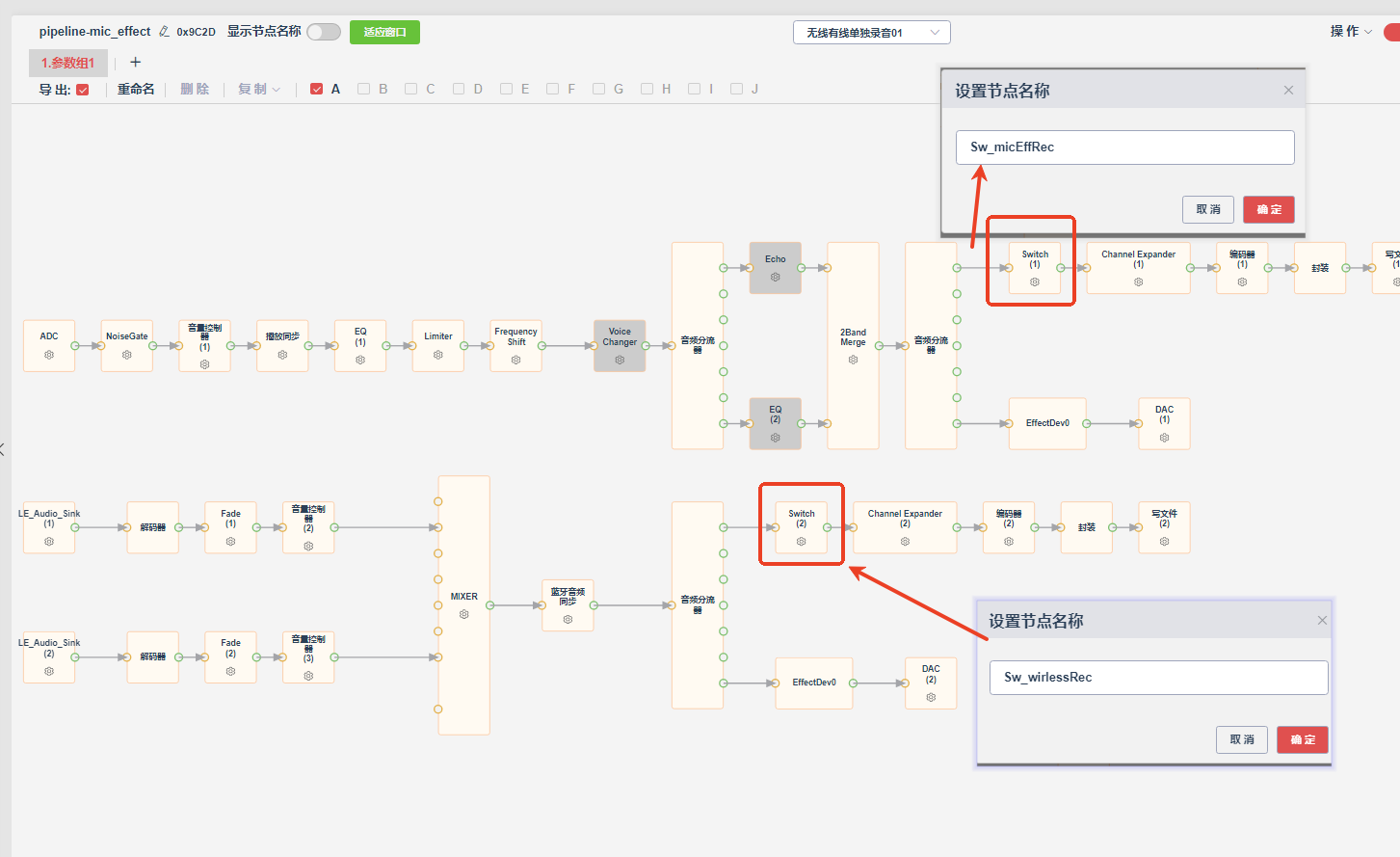

    if(!strcmp(arg, "Sw_micEffRec")) {
        return (int)mic_effect_rec_switch_get_status;
    }
#endif

#if TCFG_APP_RECORD_EN && TCFG_KBOX_1T3_MODE_EN && USER_EX_RECORD_MODE_EN
    if(!strcmp(arg, "Sw_wirlessRec")) {
        return (int)wirless_rec_switch_get_status;
    }
#endif

mic_effect.c

#if TCFG_APP_RECORD_EN && USER_EX_RECORD_MODE_EN
#include "file_recorder.h"
extern int get_rec_stream_state();
extern int ex_record_stream_open();
extern void ex_record_stream_close(void);
extern void ex_record_stream_init(struct jlstream *stream);
extern void u_set_stream_dev_type(u8 type);
#endif

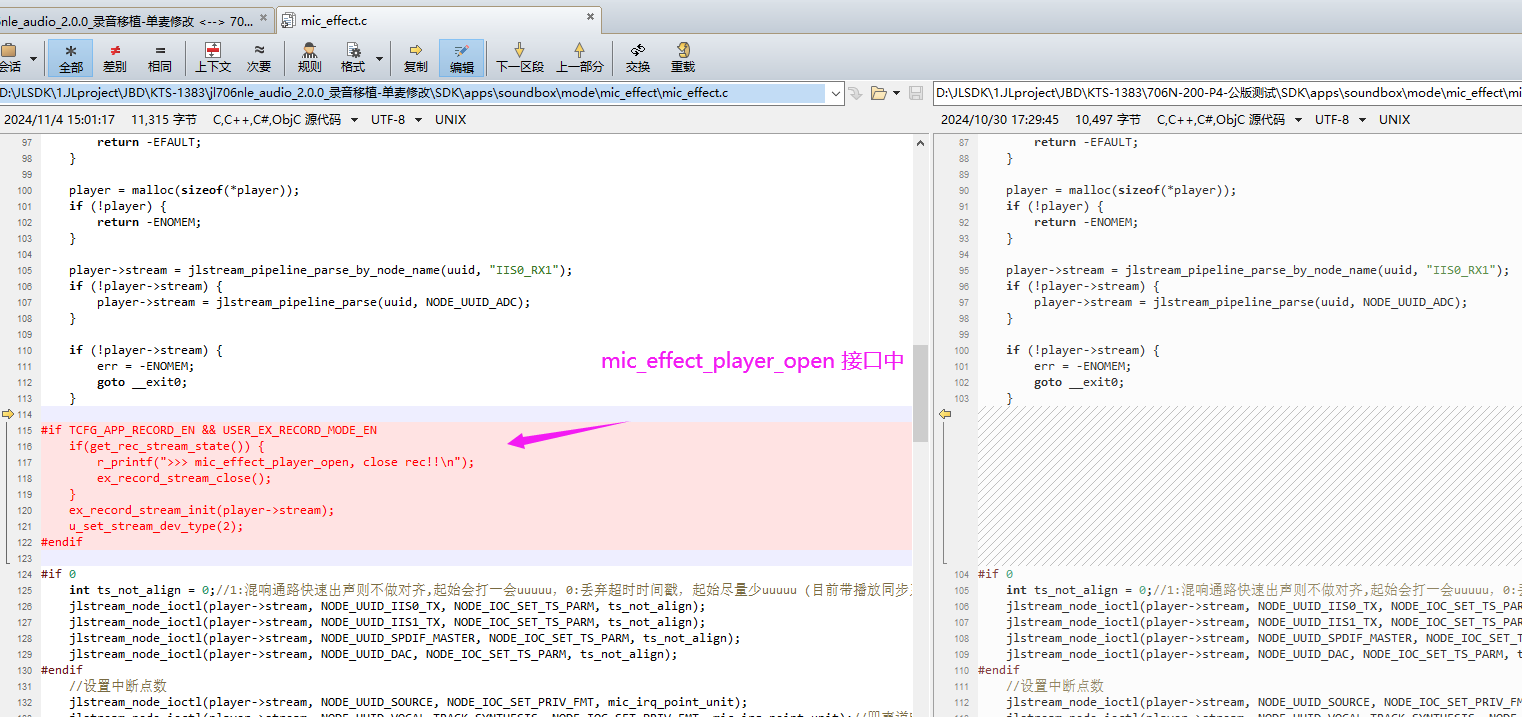

#if TCFG_APP_RECORD_EN && USER_EX_RECORD_MODE_EN
    if(get_rec_stream_state()) {
        r_printf(">>> mic_effect_player_open, close rec!!\n");
        ex_record_stream_close();
    }
    ex_record_stream_init(player->stream);
    u_set_stream_dev_type(2);
#endif

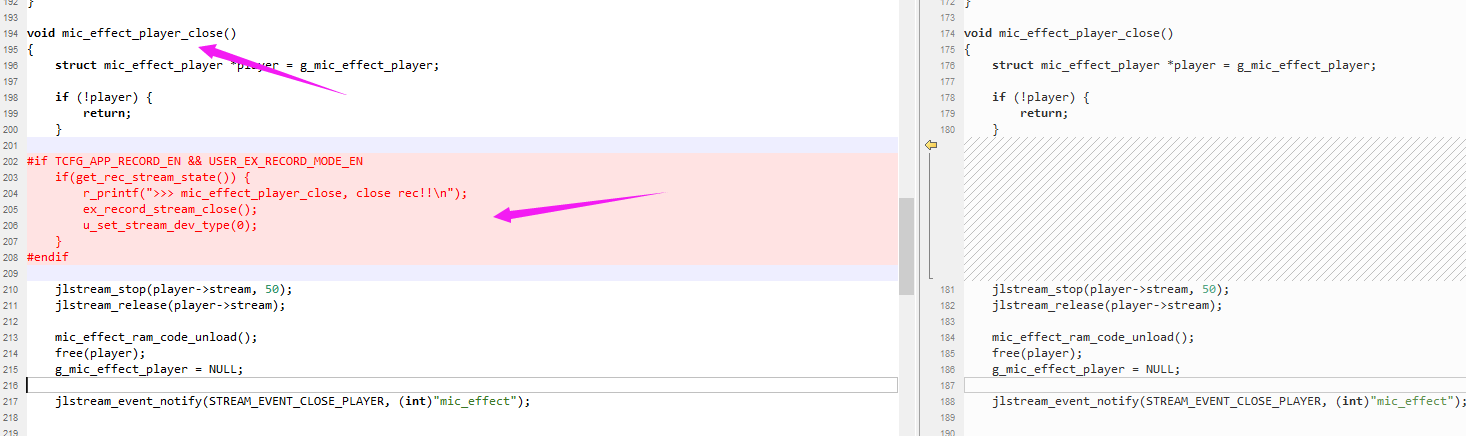

#if TCFG_APP_RECORD_EN && USER_EX_RECORD_MODE_EN
    if(get_rec_stream_state()) {
        r_printf(">>> mic_effect_player_close, close rec!!\n");
        ex_record_stream_close();
        u_set_stream_dev_type(0);
    }
#endif

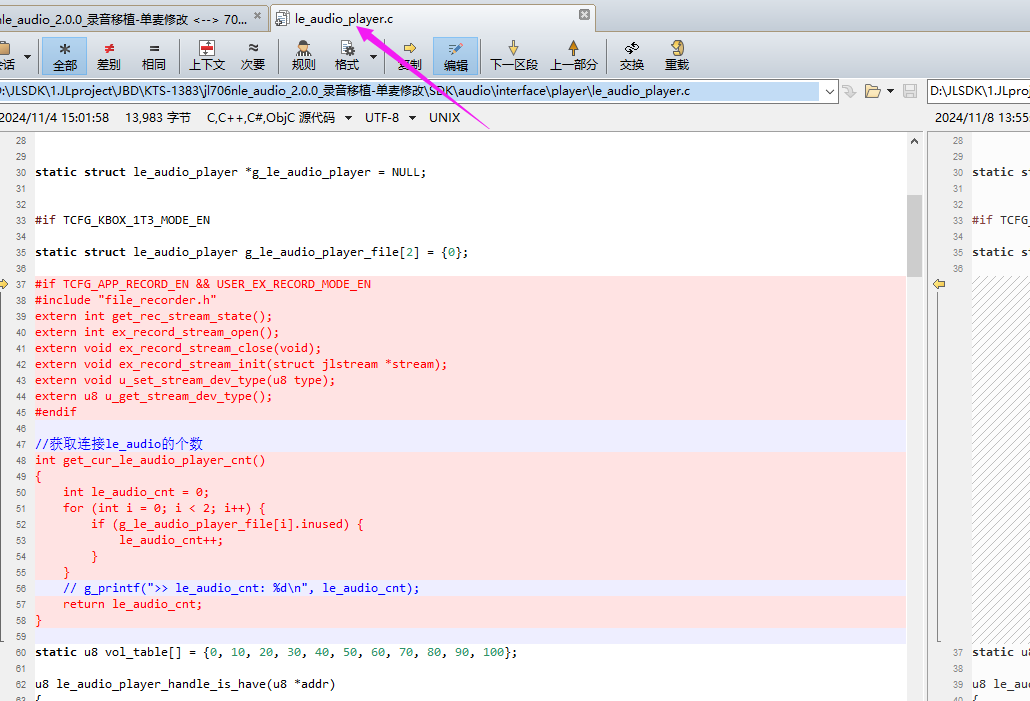

le_audio_player.c

#if TCFG_APP_RECORD_EN && USER_EX_RECORD_MODE_EN
#include "file_recorder.h"
extern int get_rec_stream_state();
extern int ex_record_stream_open();
extern void ex_record_stream_close(void);
extern void ex_record_stream_init(struct jlstream *stream);
extern void u_set_stream_dev_type(u8 type);
extern u8 u_get_stream_dev_type();
#endif

//获取连接le_audio的个数
int get_cur_le_audio_player_cnt()
{
    int le_audio_cnt = 0;
    for (int i = 0; i < 2; i++) {
        if (g_le_audio_player_file[i].inused) {
            le_audio_cnt++;
        }
    }
    // g_printf(">> le_audio_cnt: %d\n", le_audio_cnt);
    return le_audio_cnt;
}

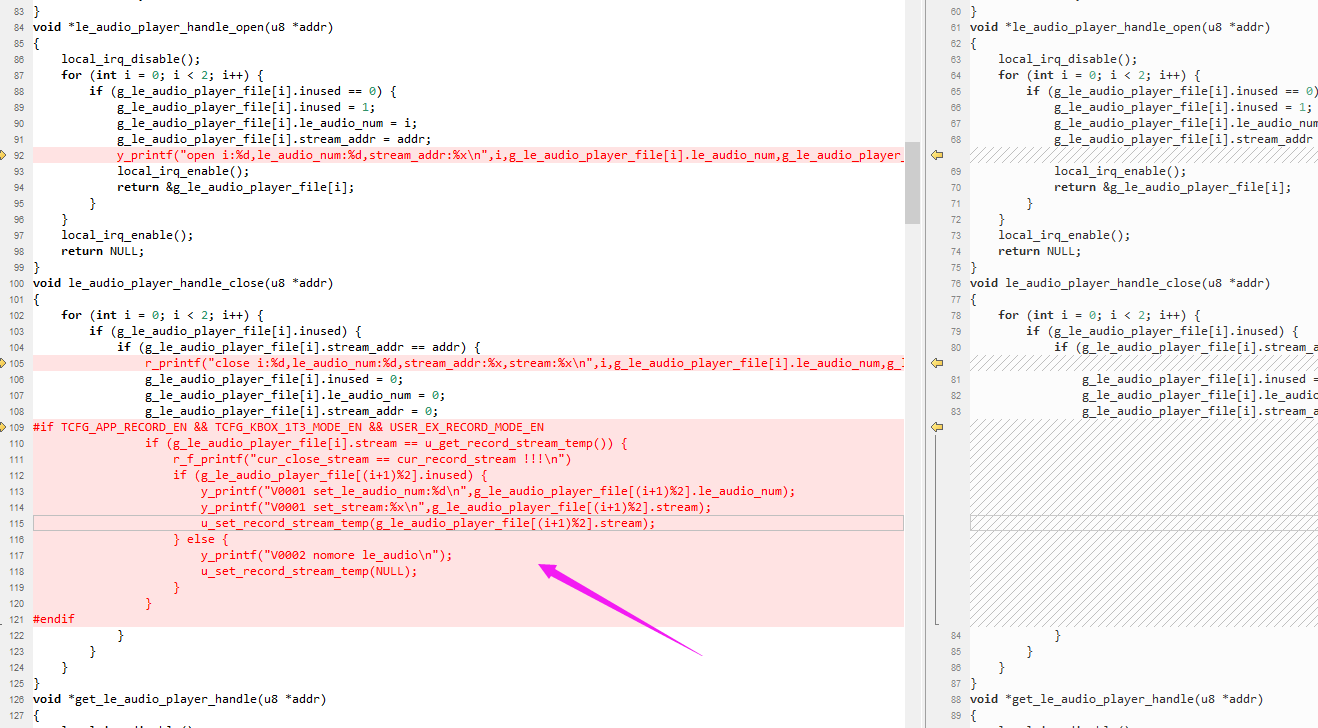

#if TCFG_APP_RECORD_EN && TCFG_KBOX_1T3_MODE_EN && USER_EX_RECORD_MODE_EN
                if (g_le_audio_player_file[i].stream == u_get_record_stream_temp()) {
                    r_f_printf("cur_close_stream == cur_record_stream !!!\n")
                    if (g_le_audio_player_file[(i+1)%2].inused) {
                        y_printf("V0001 set_le_audio_num:%d\n",g_le_audio_player_file[(i+1)%2].le_audio_num);
                        y_printf("V0001 set_stream:%x\n",g_le_audio_player_file[(i+1)%2].stream);
                        u_set_record_stream_temp(g_le_audio_player_file[(i+1)%2].stream);
                    } else {
                        y_printf("V0002 nomore le_audio\n");
                        u_set_record_stream_temp(NULL);
                    }
                }
#endif

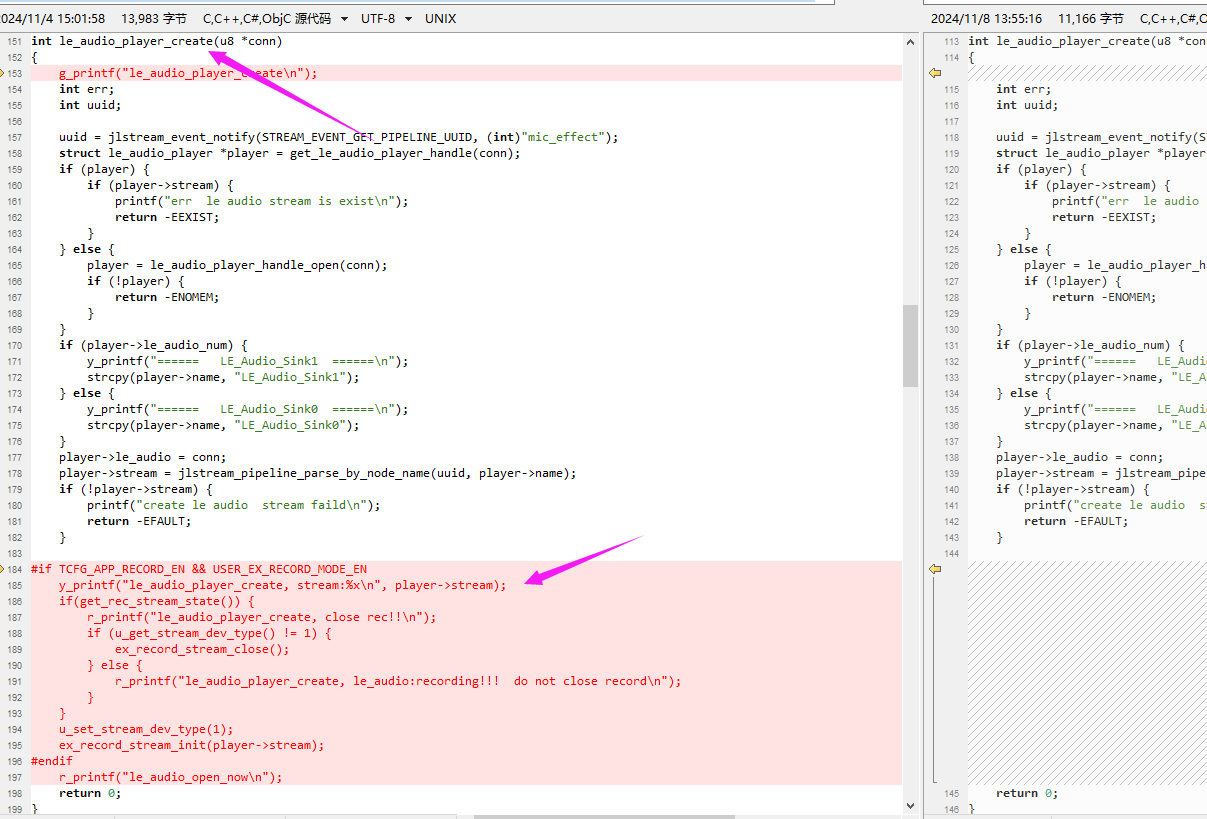

#if TCFG_APP_RECORD_EN && USER_EX_RECORD_MODE_EN
    y_printf("le_audio_player_create, stream:%x\n", player->stream);
    if(get_rec_stream_state()) {
        r_printf("le_audio_player_create, close rec!!\n");
        if (u_get_stream_dev_type() != 1) {
            ex_record_stream_close();
        } else {
            r_printf("le_audio_player_create, le_audio:recording!!!  do not close record\n");
        }
    }
    u_set_stream_dev_type(1);
    ex_record_stream_init(player->stream);
#endif
    r_printf("le_audio_open_now\n");

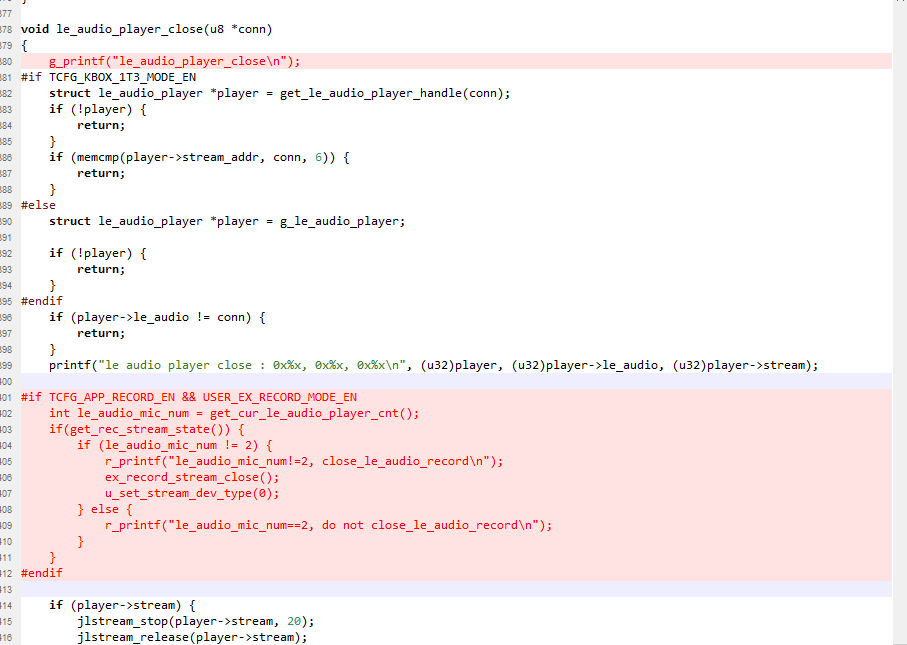

#if TCFG_APP_RECORD_EN && USER_EX_RECORD_MODE_EN
    int le_audio_mic_num = get_cur_le_audio_player_cnt();
    if(get_rec_stream_state()) {
        if (le_audio_mic_num != 2) {
            r_printf("le_audio_mic_num!=2, close_le_audio_record\n");
            ex_record_stream_close();
            u_set_stream_dev_type(0);
        } else {
            r_printf("le_audio_mic_num==2, do not close_le_audio_record\n");
        }
    }
#endif

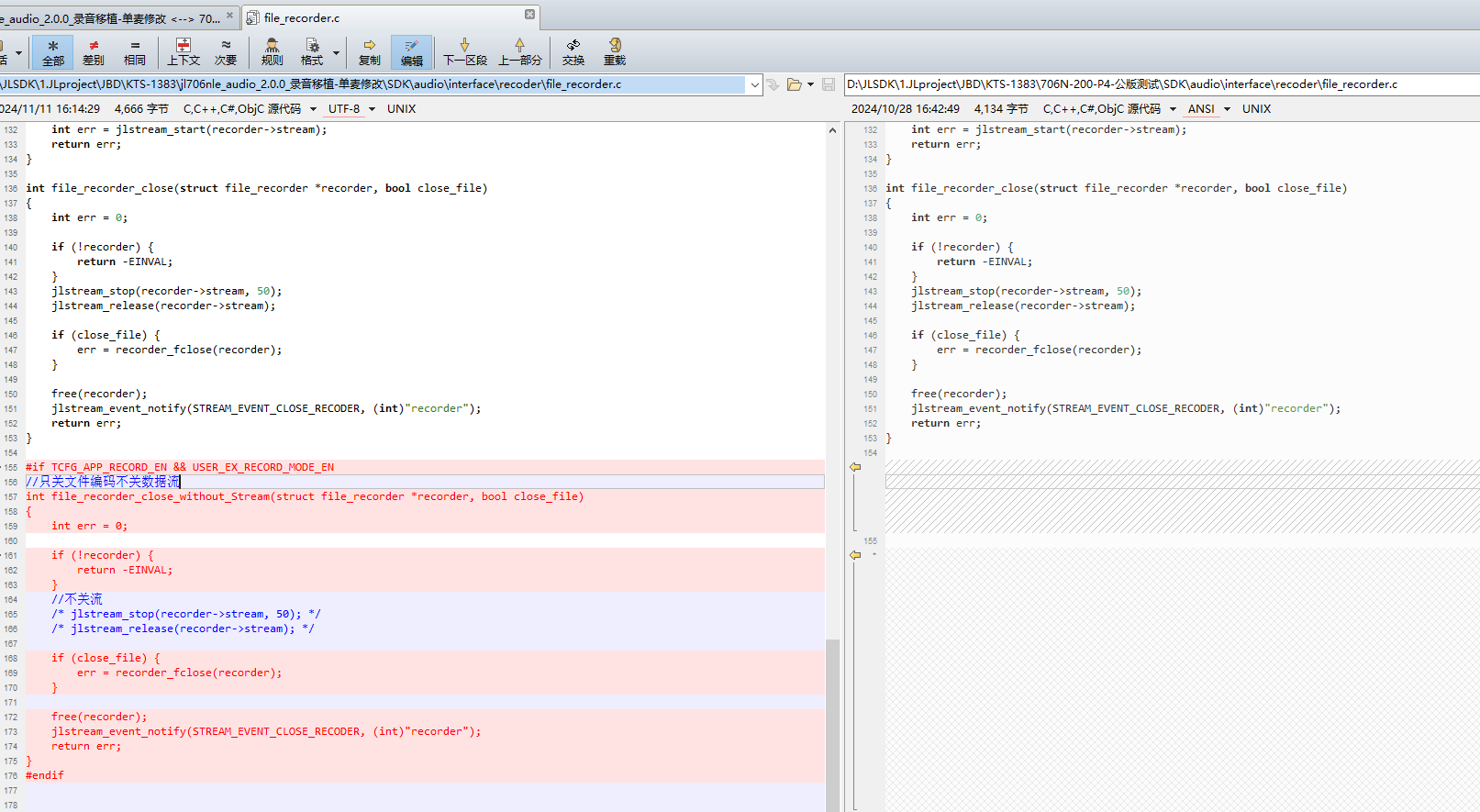

file_recorder.c

#if TCFG_APP_RECORD_EN && USER_EX_RECORD_MODE_EN
//只关文件编码不关数据流
int file_recorder_close_without_Stream(struct file_recorder *recorder, bool close_file)
{
    int err = 0;

    if (!recorder) {
        return -EINVAL;
    }
    //不关流
    /* jlstream_stop(recorder->stream, 50); */
    /* jlstream_release(recorder->stream); */

    if (close_file) {
        err = recorder_fclose(recorder);
    }

    free(recorder);
    jlstream_event_notify(STREAM_EVENT_CLOSE_RECODER, (int)"recorder");
    return err;
}
#endif
