AC698V164 MIC与蓝牙音乐共同输出DAC demo

//adc解码结构体及宏定义

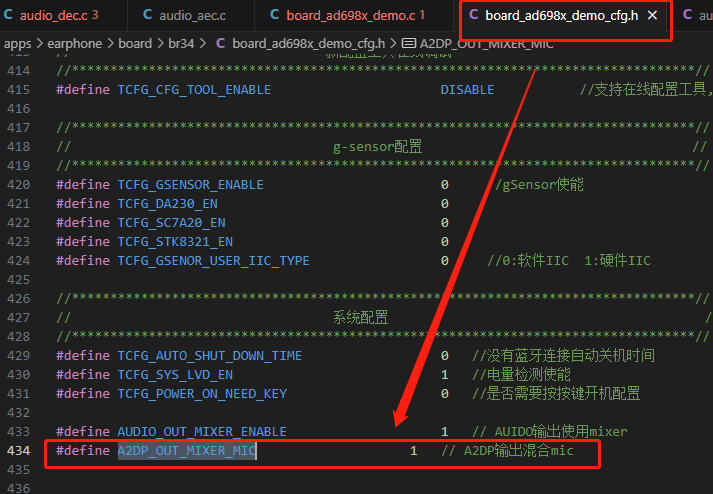

#if A2DP_OUT_MIXER_MIC

#define ADC_DEC_BUF_NUM        2
#define ADC_DEC_IRQ_POINTS     256
#define ADC_DEC_BUFS_SIZE      (ADC_DEC_BUF_NUM * ADC_DEC_IRQ_POINTS)

struct adc_dec_handle {
    u8 start;
    u8 remain;
    u8 adc_2_sbuff;
    struct adc_mic_ch mic_ch;
    u8 output_buf[1024*4];
    cbuffer_t output_cbuf;
    //s16 adc_buf[ADC_DEC_BUFS_SIZE];    //align 4Bytes
    //s16 adc_sbuff[ADC_DEC_BUFS_SIZE];
    struct audio_adc_output_hdl adc_output;
    struct audio_res_wait wait;
    struct audio_decoder decoder;
#if AUDIO_OUT_MIXER_ENABLE
    struct audio_mixer_ch mix_ch;
#endif
};

static struct adc_dec_handle *adc_dec;

//获取adc buff
static int adc_fread(struct audio_decoder *decoder, void *buf, u32 len)
{
    //printf("adc_fread len:%d\n",len);
    //s16 *data = (s16*)buf;
    local_irq_disable();
    if (!adc_dec)
    {
        printf("adc_fread close now");
        local_irq_enable();
        return -EINVAL;
    }
    u16 rlen = cbuf_read(&adc_dec->output_cbuf, buf, len);
    //printf("buf:%d %d %d %d\n",data[0],data[1],data[2],data[3]);
    if (rlen == 0) {
        putchar('N');
        rlen = len;
    }
    local_irq_enable();
    return rlen;
}

//解码输入源
static const struct audio_dec_input adc_input = {
    .coding_type = AUDIO_CODING_PCM,
    .data_type   = AUDIO_INPUT_FILE,
    .ops = {
        .file = {
            .fread = adc_fread,

        }
    }
};



static int adc_wait_res_handler(struct audio_res_wait *wait, int event)
{
    int err = 0;

    if (event == AUDIO_RES_GET) {
        printf("adc_wait_res_handler\n");
        err = adc_dec_start();
    } else if (event == AUDIO_RES_PUT) {

    }

    return err;
}

static void adc_mic_to_dec_output(void *priv, s16 *data, int len)
{
    putchar('o');
    //printf("adc_mic_to_dec_output len:%d\n",len);
    if (adc_dec && adc_dec->adc_2_sbuff)
    {
        u16 wlen = cbuf_write(&adc_dec->output_cbuf, data, len);
        audio_decoder_resume(&adc_dec->decoder);
        //printf("adc_mic_to_dec_output wlen:%d\n",wlen);
        //printf("adc_mic_to_dec_output data=%d %d %d %d\n",data[0],data[1],data[2],data[3]);
    }
    //printf("adc:%x,len:%d\n",data,len);
    //printf("wlen:%d\n",wlen);
}

void audio_adc_mic_to_music_open(u8 adc_2_sbuff)
{
    if (adc_dec)
    {
        printf("open adc mic channel\n");
        audio_adc_mic_open(&adc_dec->mic_ch, AUDIO_ADC_MIC_CH, &adc_hdl);
        audio_adc_mic_set_sample_rate(&adc_dec->mic_ch, 44100);
        audio_adc_mic_set_gain(&adc_dec->mic_ch, 10);
        audio_adc_mic_set_buffs(&adc_dec->mic_ch, adc_dec->output_buf, 256 * 2, 2);
        adc_dec->adc_output.handler = adc_mic_to_dec_output;
        audio_adc_add_output_handler(&adc_hdl, &adc_dec->adc_output);
        audio_adc_mic_start(&adc_dec->mic_ch);
    }
    adc_dec->adc_2_sbuff = adc_2_sbuff;

}

void audio_adc_mic_to_music_close()
{
    if (adc_dec) {
        audio_adc_del_output_handler(&adc_hdl, &adc_dec->adc_output);
        audio_adc_mic_close(&adc_dec->mic_ch);
        free(adc_dec);
        adc_dec = NULL;
    }
}
//打开解码
int adc_dec_open(void)
{
    if(adc_dec)
    {
        adc_dec_close();
        if (adc_dec)
        {
            return 0;
        }
    }
    int err = 0;
    printf("adc_dec_open\n");
    adc_dec = zalloc(sizeof(*adc_dec));
    if (!adc_dec) {
        printf("adc_dec zalloc failed");
        return -ENOMEM;
    }
    //开mic

    adc_dec->wait.priority = 0;
    adc_dec->wait.preemption = 0;
    adc_dec->wait.handler = adc_wait_res_handler;

    audio_decoder_task_add_wait(&decode_task, &adc_dec->wait);

    if(adc_dec && (adc_dec->start==0))
    {
        err = adc_dec_start();
    }


    return err;
}

//释放资源
static void adc_dec_release()
{
    audio_adc_mic_to_music_close();
}

//关闭解码
int adc_dec_close(void)
{
    if (!adc_dec)
    {
        printf("!adc_dec\n");
        return 0;
    }

    printf("adc_dec_close\n");
    audio_decoder_close(&adc_dec->decoder);
#if AUDIO_OUT_MIXER_ENABLE
    audio_mixer_ch_close(&adc_dec->mix_ch);
#else
    audio_output_close(NULL);
#endif
    audio_codec_clock_del(AUDIO_A2DP_MODE);
    audio_decoder_task_del_wait(&decode_task,&adc_dec->wait);
    adc_dec_release();

    return 0;
}

//解码处理
static int adc_dec_probe_handler(struct audio_decoder *decoder)
{
    int channel     = audio_dac_get_channel(&dac_hdl) == DAC_OUTPUT_LR ? 2 : 1;
    int sample_rate = audio_mixer_get_sample_rate(&mixer);

    if (sample_rate == 0)
    {
        sample_rate = 44100;
    }
    //printf("ADC_DEC: %d, %d\n", sample_rate, channel);

#if AUDIO_OUT_MIXER_ENABLE
        audio_mixer_ch_set_sample_rate(&adc_dec->mix_ch, sample_rate);
#endif
    return 0;
}

//解码输出
static int adc_dec_output_handler(struct audio_decoder *decoder, s16 *data, int len, void *priv)
{
    //printf("adc_dec_output_handler\n");
    //putchar('u');
#if AUDIO_OUT_MIXER_ENABLE
    int wlen = audio_mixer_ch_write(&adc_dec->mix_ch, data, len);
#else
    int wlen = audio_output_data(data, len);
#endif
    if (wlen != len) {
        adc_dec->remain = 1;
    } else {
        adc_dec->remain = 0;
    }
    return wlen;
}

static int adc_dec_post_handler(struct audio_decoder *decoder)
{
    return 0;
}

//解码回调
const struct audio_dec_handler adc_dec_handler = {
    .dec_probe  = adc_dec_probe_handler,
    .dec_output = adc_dec_output_handler,
    .dec_post   = adc_dec_post_handler,
};


//解码事件处理
static void adc_dec_event_handler(struct audio_decoder *decoder, int argc, int *argv)
{
    printf("adc_dec_event_handler:%x", argv[0]);
    switch (argv[0]) {
    case AUDIO_DEC_EVENT_END:
    case AUDIO_DEC_EVENT_ERR:
        printf("adc_dec err\n");
        adc_dec_close();
        break;
    default:
        return;
    }

}

//开始解码
int adc_dec_start()
{
     if (!adc_dec) {
        printf("!adc_dec\n");
        return -EINVAL;
    }
    if (adc_dec->start) {
        printf("adc_dec->start = 1\n");
        return 0;
    }
    printf("adc_dec_start\n");
    //cbuf 初始化
    cbuf_init(&adc_dec->output_cbuf, adc_dec->output_buf, sizeof(adc_dec->output_buf));
    int err;
    int decode_task_state;
    struct audio_fmt f;
    err = audio_decoder_open(&adc_dec->decoder, &adc_input, &decode_task);
    if (err) {
        return err;
    }
    //设置格式
    f.coding_type = AUDIO_CODING_PCM;
    f.sample_rate = 44100;
    f.channel = 1;
    audio_decoder_set_fmt(&adc_dec->decoder,&f);
    printf("fmt->channel = %d\n",f.channel);
    printf("fmt->sample_rate = %d\n",f.sample_rate);
    printf("fmt->coding_type = %d\n",f.coding_type);
    audio_codec_clock_set(AUDIO_A2DP_MODE, AUDIO_CODING_SBC, adc_dec->wait.preemption);

    audio_decoder_set_handler(&adc_dec->decoder, &adc_dec_handler);

    audio_decoder_set_event_handler(&adc_dec->decoder, adc_dec_event_handler, 0);
    //设置音量
    app_audio_state_switch(APP_AUDIO_STATE_MUSIC, get_max_sys_vol());
    app_audio_set_volume(APP_AUDIO_STATE_MUSIC, 16, 1);

#if AUDIO_OUT_MIXER_ENABLE
    audio_mixer_ch_open(&adc_dec->mix_ch, &mixer);
    audio_mixer_ch_set_resume_handler(&adc_dec->mix_ch, (void *)&adc_dec->decoder, (void (*)(void *))audio_decoder_resume);
#else
    audio_output_open(NULL, 44100);
#endif
    //开mic
    audio_adc_mic_to_music_open(1);
    err = audio_decoder_start(&adc_dec->decoder);
    if (err) {
        printf("adc_dec->decoder err\n");
        goto __err1;
    }
    adc_dec->start = 1;
    return 0;
__err1:
#if AUDIO_OUT_MIXER_ENABLE
    audio_mixer_ch_close(&adc_dec->mix_ch);
#else
    audio_output_close(NULL);
#endif


}

#endif

bool mic_on_flag = 0;//全局变量

//按键开关mic事件处理

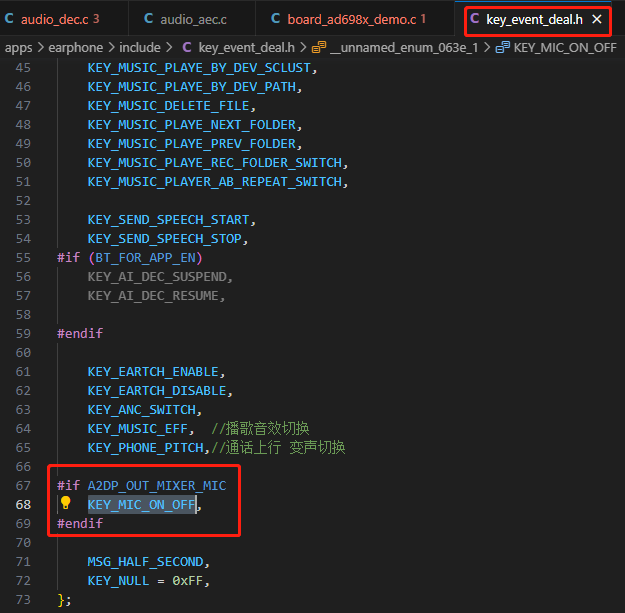

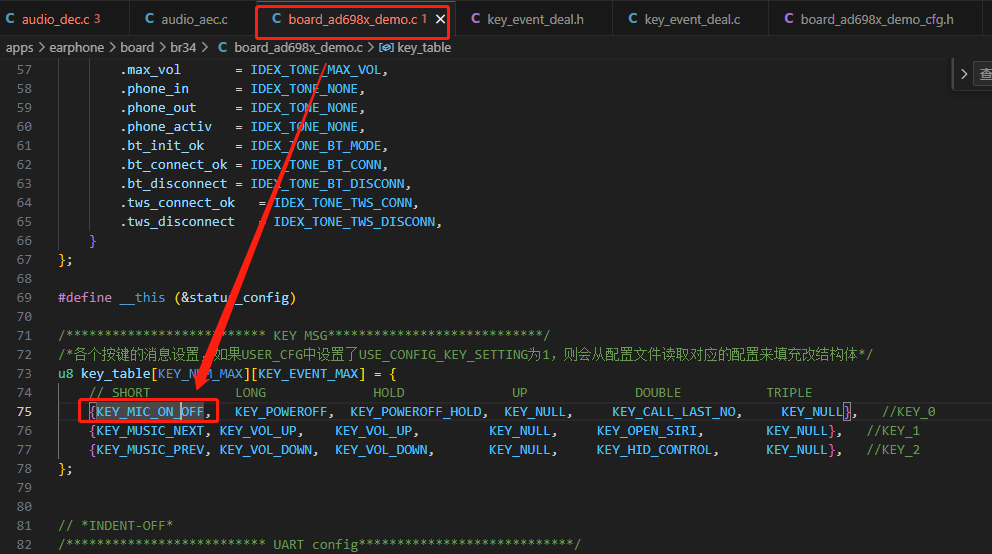

    case KEY_MIC_ON_OFF:
#if A2DP_OUT_MIXER_MIC
    printf("KEY_MIC_ON\n");
    //clk_set("sys",120*1000000L);
    if(mic_on_flag == 0)
    {
        adc_dec_open();
        mic_on_flag =1;
    }
    else
    {
        adc_dec_close();
        mic_on_flag = 0;
    }

#endif
    break;

//蓝牙播歌流程
 case BT_STATUS_A2DP_MEDIA_START:
        log_info(" BT_STATUS_A2DP_MEDIA_START:0x%x", bt->value);
#if A2DP_OUT_MIXER_MIC
        extern mic_on_flag;
        if(mic_on_flag == 0)
        {
            //mic没开，直接播音乐
            a2dp_dec_open(bt->value);
        }
        else
        {
            //mic开了，关mic再开音乐再开mic，防止解码抢占，造成播歌无声
            adc_dec_close();
            a2dp_dec_open(bt->value);
            adc_dec_open();
        }
#else
        a2dp_dec_open(bt->value);
#endif
        break;
