REPORT No.: SZ21050145 B01
TEST REPORT
| APPLICANT | : ZHUHAI JieLi Technology Co. , Ltd |
|---|---|
| PRODUCT NAME | : AC6XXX， AC7XXX， AC8XXX |
| MODEL NUMBER | : AC6XXX， AC7XXX， AC8XXX |
| BRAND NAME | : JL |
| BLUETOOTH VERSION | : 5.3 |
| STANDARD(S) | : Refer to item 3.2 |
| RECEIPT DATE | : 2021-05-14 |
| TEST DATE | : 2021-06-22 to 2021-06-26 |
| ISSUE DATE | : 2021-07-13 |
Edited by: Li LinBin ( Rapporteur)
Approved by: Li Dong (Supervisor)
NOTE: This document is issued by Shenzhen Morlab Communications Technology Co. , Ltd. , the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website.
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
DIRECTORY
- IDENTIFICATION SUMMARY............................................................................................................................. 3
1.1. Test Lab。rat。ry .................................................................................................................................................. 3
1.2. Client ..................................................................................................................................................................4
1.3. Implementati。nUnder Test (IUT) ..................................................................................................................... 4
2 Test Equipment.............................................................................................................................................................. 4 - Test Results....................................................................................................................................................................4
3.1 Test Envir。nment/C。nditi。ns ...........................................................................................................................4
3.2 AppliedReference D。cuments .........................................................................................................................5
3.3 Items used in the Test Results List ................................................................................................................... 5
3.4 Test Results List ............................................................................................................................................... 5 - Test Pr。cedure............................................................................................................................................................ 16
Annex A ICS/IXIT .................................................................................................................................................. 17
Annex B Test Data .................................................................................................................................................. 17
Annex C Test setup ................................................................................................................................................. 17
Annex D EUT Ph。t。............................................................................................................................................... 18
| Change History | ||
|---|---|---|
| Version | Date | Reason for change |
| 1.0 | 2021-07-13 | First edition |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
1 . IDENTIFICATION SUMMARY
1 . 1 . Test Laboratory
| Name: | Shenzhen Morlab Communications Technology Co. , Ltd. |
|---|---|
| Address: | 1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road,Zone 67 , Baocheng, Bao’an District, ShenZhen , GuangDong, China |
| City: | Shenzhen |
| Postal code: | 518101 |
| Country: | P. R. China |
| Telephone: | +86 0755 36698555 |
| Fax: | +86 0755 36698525 |
| URL: | www.morlab.cn |
Competences and guarantees:
Morlab is a testing laboratory competent to carry out the tests described in this report.
In order to assure the traceability to other national and international laboratories, Morlab has a calibration and maintenance programme for its measuring equipment.
Morlab guarantees the reliability of the data presented in this report , which is the result of measurements and tests performed to the item under test on the date and under the conditions stated on the report and is based on the knowledge and technical facilities available at Morlab at the time of execution of the test.
Morlab is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the item under test and the results of the test.
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
1 .2 . Client
| Name: | ZHUHAI JieLi Technology Co. , Ltd |
|---|---|
| Address: | 333 Kexing Rd. ,Xiangzhou Dist. , Zhuhai,Guangdong,China |
1 .3 . Implementation Under Test ( IUT)
| Hw version: | 1.00 |
|---|---|
| Sw version: | 1.00 |
| Description of IUT: | This is a Bluetooth dual module 5.3 |
| Sampling method: | Samples undergoing test have been selected by: the client |
| Internal Control No.: | Element: | BT_ADD: |
|---|---|---|
| 1# | 1PCS | 123456563412 |
2 Test Equipment
| Model | Serial No. | Manufacturer | Cal Date | Cal Due | |
|---|---|---|---|---|---|
| Ellisys Bluetooth Qualifier 1 | BQ1-25138 | Ellisys | N/A | N/A | |
| Ellisys Bluetooth Explorer 400 | BEX400-22651 | Ellisys | N/A | N/A | |
| EBQ Software Version | 2020-1.7762 |
3 . Test Results
3 . 1 Test Environment/Conditions
| Nominal Temperature | 15-35°C |
|---|---|
| Nominal Humidity | 20% – 75% |
| Air Pressure: | 86 –106 kPa |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
3 .2 Applied Reference Documents
The tests performed on t he IUT are in compliance with the Bluetooth Wireless Technology
Specification(s) below.
| TCRL | Core TCRL 2020-1 |
|---|---|
| Test Specification for BB | BB.TS. p29 |
| Test Specification for LL | LL.TS. p 17 |
| Test Specification for LMP | LMP.TS. p39 |
3 .3 Items used in the Test Results List
Terms in the column “Verdict” for the test results list of the section 0 :
| Verdict | Description |
|---|---|
| PASS | Test case requirements were reviewed to be in conformance. |
| FAIL | Test case requirements were reviewed and not in conformance |
| Declaration | The required documentation is available in the client’s Compliance Folder |
| N/A | Test case requirements are not applicable. |
3 .4 Test Results List
Note: The test result and evidence can be used for QDID 159331 and future listing integrates this component.
3.4.1 BB
Totol:57 , pass:57
| Test Case | Description | Cat. | Verdict |
|---|---|---|---|
| BB/ PROT/ FLH/ BV-01-C | Transmit Fragmented L2CAP Header | A | Pass |
| BB/ PROT/ FLH/ BV-02-C | Receive Fragmented L2CAP Header | B | Pass |
| BB/ PHYS/ FRE/ BV-01-C | Hop Seq 79 channel system | A | Pass |
| BB/ PHYS/TRX/BV-01-C | master TX timing | A | Pass |
| BB/ PHYS/TRX/BV-03-C | master RX/TX timing | A | Pass |
| BB/ PHYS/TRX/BV-04-C | slave RX/TX timing | A | Pass |
| BB/ PROT/ARQ/BV-01-C | Explicit NAK | A | Pass |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| BB/ PROT/ARQ/BV-02-C | Implicit NAK | A | Pass |
|---|---|---|---|
| BB/ PROT/ARQ/BV-03-C | Uncorrectable packet header | A | Pass |
| BB/ PROT/ARQ/BV-04-C | Uncorrectable payload | A | Pass |
| BB/ PROT/ARQ/BV-05-C | SEQN | A | Pass |
| BB/ PROT/ARQ/BV-06-C | FLOW control | A | Pass |
| BB/ PROT/ARQ/BV-08-C | Implicit GO | A | Pass |
| BB/ PROT/ARQ/BV-10-C | Same SEQN value | A | Pass |
| BB/ PROT/ARQ/BV-14-C | Uncorrectable packet header | A | Pass |
| BB/ PROT/ARQ/BV-15-C | Uncorrectable payload | A | Pass |
| BB/ PROT/ARQ/BV-16-C | Explicit NAK | A | Pass |
| BB/ PROT/ARQ/BV-18-C | SEQN | A | Pass |
| BB/ PROT/ARQ/BV-19-C | FLOW control | A | Pass |
| BB/ PROT/ARQ/BV-23-C | Same SEQN value | A | Pass |
| BB/ PROT/COD/ BV-11-C | Erroneous slave address | A | Pass |
| BB/ PROT/COD/ BV-12-C | Correctable packet header | B | Pass |
| BB/ PROT/COD/ BV-16-C | Correctable error DM1 payload | A | Pass |
| BB/ PROT/CON/ BV-01-C | POLL at start up | A | Pass |
| BB/ PROT/CON/ BV-02-C | Polling slave | A | Pass |
| BB/ PROT/CON/ BV-03-C | Wrong UAP | A | Pass |
| BB/ PROT/CON/ BV-05-C | POLL at start up | A | Pass |
| BB/ PROT/CON/ BV-08-C | Wrong UAP | A | Pass |
| BB/ PHYS/ FRE/ BV-02-C | AFH hop seq | A | Pass |
| BB/ PHYS/ INQ/ BV-10-C | Inquiry response/79 chan | A | Pass |
| BB/ PHYS/ INQ/ BV-14-C | Inquiry scan window and interval | A | Pass |
| BB/ PHYS/ INQ/ BV-16-C | Reception of Extended Inquiry Response | A | Pass |
| BB/ PHYS/ INQ/ BV-17-C | Transmission of Extended Inquiry Response | A | Pass |
| BB/ PHYS/ INQ/ BV-18-C | Inquiry Result Event Usage | A | Pass |
| BB/ PHYS/ PAG/ BV-01-C | Page hop seq/79 chan | A | Pass |
| BB/ PHYS/ PAG/ BV-03-C | Page resp to 1st msg/79 chan | A | Pass |
| BB/ PHYS/ PAG/ BV-05-C | Page resp to 2nd msg/79 chan | A | Pass |
| BB/ PHYS/ PAG/ BV-10-C | Page resp 1/ 1 slot/79 chan | A | Pass |
| BB/ PHYS/ PAG/ BV-12-C | Page resp 1/2 slot/79 chan | A | Pass |
| BB/ PHYS/ PAG/ BV-18-C | Page scan interval R2 | A | Pass |
| BB/ PROT/ARQ/BV-25-C | Retransmission of DV packet | B | Pass |
| BB/ PROT/ARQ/BV-26-C | Uncorrectable DV packet | A | Pass |
| BB/ PROT/COD/ BV-01-C | HV1 packet type | A | Pass |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| BB/ PROT/COD/ BV-04-C | DV packet type | A | Pass |
|---|---|---|---|
| BB/ PROT/COD/ BV-14-C | Correctable error HV1 payload | A | Pass |
| BB/ PROT/CON/ BV-04-C | Change from DV to HV | A | Pass |
| BB/ PROT/CON/ BV-09-C | Change from DV to HV | B | Pass |
| BB/ PROT/ARQ/BV-33-C | Flushable Packet is Flushed | A | Pass |
| BB/ PROT/ARQ/BV-34-C | Non-Flushable Packet is Not Flushed | A | Pass |
| BB/ PROT/ARQ/BV-35-C | Flushable L2CAP PDU with Multiple Fragments Flushed after First Fragment Sent | A | Pass |
| BB/ PROT/ARQ/BV-36-C | Non-Flushable L2CAP PDU with Multiple Fragments is not Flushed after the First Fragment is Sent | A | Pass |
| BB/ PROT/ARQ/BV-37-C | Enhanced Flush Command Flushes Flushable L2CAP PDUs and does not Flush Non-Flushable L2CAP PDUs | A | Pass |
| BB/ PROT/COD/ BV-05-C | DH1 packet type | A | Pass |
| BB/ PROT/COD/ BV-06-C | DM3 packet type | A | Pass |
| BB/ PROT/COD/ BV-07-C | DH3 packet type | A | Pass |
| BB/ PROT/COD/ BV-08-C | DM5 packet type | A | Pass |
| BB/ PROT/COD/ BV-09-C | DH5 packet type | A | Pass |
3.4.2 LL
Totol:110 , pass:110
| Test Case | Description | Cat. | Verdict |
|---|---|---|---|
| LL/ PAC/ MAS/ BI-01-C | Control PDUs with Invalid Length from Slave | A | Pass |
| LL/ PAC/ MAS/ BV-01-C | Unknown Packet From Slave | A | Pass |
| LL/ PAC/SLA/ BI-01-C | Control PDUs with Invalid Length from Master | A | Pass |
| LL/ PAC/SLA/ BV-01-C | Unknown Packet From Master | A | Pass |
| LL/ DFL/ MAS/ BV-01-C | Transmit Fragmented L2CAP Header | A | Pass |
| LL/CON/ MAS/ BV-03-C | Master Sending Data | A | Pass |
| LL/ DFL/SLA/ BV-01-C | Transmit Fragmented L2CAP Header | A | Pass |
| LL/CON/SLA/ BV-04-C | Slave Sending Data | A | Pass |
| LL/ DFL/ MAS/ BV-02-C | Receive Fragmented L2CAP Header | A | Pass |
| LL/CON/ MAS/ BV-04-C | Master Receiving Data | A | Pass |
| LL/ DFL/SLA/ BV-02-C | Receive Fragmented L2CAP Header | A | Pass |
| LL/CON/SLA/ BV-05-C | Slave Receiving Data | A | Pass |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| LL/CON/ADV/ BV-02-C | Accepting Connections Timeout | A | Pass |
|---|---|---|---|
| LL/CON/ADV/ BV-04-C | Directed Advertising Connection | A | Pass |
| LL/CON/ INI/ BI-01-C | Connection Initiation Invalid CRC | A | Pass |
| LL/CON/ INI/ BV-04-C | Connection Initiation Timeout | A | Pass |
| LL/CON/ INI/ BI-02-C | Slave Packets Invalid CRC | A | Pass |
| LL/CON/ INI/ BV-01-C | Connection Initiation | A | Pass |
| LL/CON/ INI/ BV-03-C | Connection Initiation Missed Replies | A | Pass |
| LL/ ENC/ INI/ BI-01-C | Slave Packets Invalid Address | A | Pass |
| LL/CON/ INI/ BV-02-C | Connecting to Directed Advertising | A | Pass |
| LL/CON/ INI/ BV-06-C | Initiation Device Filtering: Undirected | A | Pass |
| LL/CON/ INI/ BV-07-C | Initiation Device Filtering: Directed | A | Pass |
| LL/CON/ INI/ BV-13-C | Extended Scanning , Connection Initiation – LE 1M PHY | A | Pass |
| LL/CON/ INI/ BV-14-C | Connection Initiation, Channel Selection Algorithm # 1 | A | Pass |
| LL/CON/ INI/ BV-15-C | Connecting to Directed Advertising , Channel Selection Algorithm # 1 | A | Pass |
| LL/CON/ INI/ BV-16-C | Connection Initiation, Channel Selection Algorithm #2 | A | Pass |
| LL/CON/ INI/ BV-17-C | Connecting to Directed Advertising , Channel Selection Algorithm #2 | A | Pass |
| LL/CON/ MAS/ BI-02-C | Master T_Terminate Timer | A | Pass |
| LL/CON/ MAS/ BI-04-C | Master Connection Control Timer | A | Pass |
| LL/CON/ MAS/ BV-02-C | Events With Slave Latency | A | Pass |
| LL/TIM/ MAS/ BV-01-C | Earliest Transmissions to Master | A | Pass |
| LL/CON/ MAS/ BV-05-C | Master Sending And Receiving Data | A | Pass |
| LL/CON/ MAS/ BV-07-C | Requesting Parameter Update | A | Pass |
| LL/CON/ MAS/ BV-08-C | Master Sending Termination | A | Pass |
| LL/CON/ MAS/ BV-09-C | Master Accepting Termination | A | Pass |
| LL/CON/ MAS/ BV-10-C | Master Supervision Timer | A | Pass |
| LL/CON/ MAS/ BV-13-C | Feature Setup Request | A | Pass |
| LL/CON/ MAS/ BV-14-C | Master Retransmission Request | A | Pass |
| LL/CON/ MAS/ BV-15-C | Master Retransmission | A | Pass |
| LL/CON/ MAS/ BV-16-C | Master Acknowledgement Repetition | A | Pass |
| LL/CON/ MAS/ BV-17-C | Master Lost Negative Acknowledgement | A | Pass |
| LL/CON/ MAS/ BV-18-C | Master Latency Retransmission Request | A | Pass |
| LL/ ENC/ MAS/ BI-01-C | Packets To Another Master | A | Pass |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| LL/TIM/ MAS/ BV-02-C | Latest Transmissions to Master | A | Pass |
|---|---|---|---|
| LL/CON/ MAS/ BV-19-C | Connection Control Timeout | A | Pass |
| LL/CON/ MAS/ BV-20-C | Master Request Version | A | Pass |
| LL/CON/ MAS/ BV-21-C | Master Respond Version | A | Pass |
| LL/CON/ MAS/ BV-22-C | Master Acknowledgement Scheme | A | Pass |
| LL/CON/ MAS/ BV-41-C | Initiating PHY Update Procedure | A | Pass |
| LL/CON/ MAS/ BV-43-C | Responding to PHY Update Procedure | A | Pass |
| LL/CON/ MAS/ BV-117-C | PHY Update Procedure – Master Requests Asymmetrical, Slave Symmetrical | A | Pass |
| LL/CON/ MAS/ BV-45-C | Handling Protocol Collision – Same Procedure | A | Pass |
| LL/CON/ MAS/ BV-46-C | Protocol Timeout for PHY Update Procedure | A | Pass |
| LL/CON/ MAS/ BV-51-C | Initiating PHY Update Procedure – No Common PHY, LE Coded | A | Pass |
| LL/CON/ MAS/ BV-47-C | Handling Protocol Collision – Different Procedure – Channel Map | A | Pass |
| LL/CON/ MAS/ BV-52-C | Master Receiving Data, LE Coded, CI Change | 1) | Pass |
| LL/CON/ MAS/ BV-55-C | Mandatory Minimum PDU Length, LE Coded | 1) | Pass |
| LL/CON/SLA/ BI-01-C | Invalid CRC Anchor Point | A | Pass |
| LL/CON/SLA/ BV-02-C | Slave Asymmetric Connections | A | Pass |
| LL/CON/SLA/ BV-15-C | Slave Retransmission Request | A | Pass |
| LL/CON/SLA/ BV-16-C | Slave Retransmission | A | Pass |
| LL/CON/SLA/ BV-17-C | Slave Acknowledgement Repetition | A | Pass |
| LL/CON/SLA/ BV-18-C | Slave Lost Negative Acknowledgement | A | Pass |
| LL/TIM/SLA/ BV-05-C | Longest Connection Interval | A | Pass |
| LL/CON/SLA/ BI-02-C | Slave T_Terminate Timer | A | Pass |
| LL/CON/SLA/ BI-04-C | Rejecting Connection Change | A | Pass |
| LL/CON/SLA/ BI-05-C | Slave Connection Control Timer | A | Pass |
| LL/CON/SLA/ BI-09-C | Responding to PHY Update Procedure – Instant In Past | A | Pass |
| LL/CON/SLA/ BV-51-C | Protocol Timeout for PHY Update Procedure – No Update Request | A | Pass |
| LL/CON/SLA/ BV-06-C | Slave Sending And Receiving Data | A | Pass |
| LL/CON/SLA/ BV-10-C | Accepting Parameter Update | A | Pass |
| LL/TIM/SLA/ BV-01-C | Adjusting Anchor Point | A | Pass |
| LL/CON/SLA/ BV-11-C | Slave Sending Termination | A | Pass |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| LL/CON/SLA/ BV-12-C | Slave Accepting Termination | A | Pass |
|---|---|---|---|
| LL/CON/SLA/ BV-13-C | Slave Supervision Timer | A | Pass |
| LL/CON/SLA/ BV-14-C | Feature Setup Response | A | Pass |
| LL/CON/SLA/ BV-19-C | Slave Request Version | A | Pass |
| LL/CON/SLA/ BV-20-C | Slave Respond Version | A | Pass |
| LL/CON/SLA/ BV-21-C | Slave Acknowledgement Scheme | A | Pass |
| LL/CON/SLA/ BV-40-C | Initiating PHY Update Procedure | A | Pass |
| LL/CON/SLA/ BV-42-C | Responding to PHY Update Procedure | A | Pass |
| LL/CON/SLA/ BV-44-C | Handling Protocol Collision – Same Procedure | A | Pass |
| LL/CON/SLA/ BV-45-C | Protocol Timeout for PHY Update Procedure | A | Pass |
| LL/CON/SLA/ BV-48-C | Handling Protocol Collision – Different Procedure – Connection Update | A | Pass |
| LL/CON/SLA/ BV-46-C | Handling Protocol Collision – Different Procedure – Channel Map | A | Pass |
| LL/CON/SLA/ BV-54-C | Slave Receiving Data, LE Coded, CI Change | 1) | Pass |
| LL/CON/SLA/ BV-57-C | Mandatory Minimum PDU Length, LE Coded | 1) | Pass |
| LL/ DDI/ADV/ BV-20-C | Advertising Always Using the LE 1M PHY | A | Pass |
| LL/ DDI/SCN/ BI-01-C | Active Scanning Invalid CRC | A | Pass |
| LL/ DDI/SCN/ BV-03-C | Active Scanning | A | Pass |
| LL/ DDI/SCN/ BI-02-C | Passive Scanning Invalid CRC | A | Pass |
| LL/ DDI/SCN/ BV-01-C | Passive Scanning: Non Connectable | A | Pass |
| LL/ DDI/SCN/ BV-10-C | Passive Scanning: Undirected Events | A | Pass |
| LL/ DDI/SCN/ BV-11-C | Passive Scanning: Directed Events | A | Pass |
| LL/ DDI/SCN/ BV-12-C | Passive Scanning: Discoverable Events | A | Pass |
| LL/ DDI/SCN/ BV-02-C | Passive Scanning Device Filtering | A | Pass |
| LL/ DDI/SCN/ BV-04-C | Active Scanning Device Filtering | A | Pass |
| LL/ DDI/SCN/ BV-05-C | Scanning For Advertiser Types | A | Pass |
| LL/ ENC/SCN/ BI-01-C | Passive Scanning Invalid Address | A | Pass |
| LL/ ENC/SCN/ BI-02-C | Active Scanning Invalid Address | A | Pass |
| LL/ ENC/SLA/ BI-01-C | Packets To Another Slave | A | Pass |
| LL/TIM/SLA/ BV-02-C | Earliest Transmission Start to Slave | A | Pass |
| LL/TIM/SLA/ BV-03-C | Latest Transmission Start to Slave | A | Pass |
| LL/TIM/SLA/ BV-04-C | Shortest Connection Interval | A | Pass |
| LL/ FRH/ADV/ BV-01-C | Accepting Connections With Hop Lengths | A | Pass |
| LL/ FRH/ MAS/ BV-01-C | Requesting Channel Map Update | A | Pass |
| LL/ FRH/SLA/ BV-01-C | Accepting Channel Map Update | A | Pass |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| LL/ FRH/SLA/ BV-02-C | Accepting Channel Map Update, Channel Selection Algorithm #2 | A | Pass |
|---|---|---|---|
| LL/SEC/SCN/ BV-01-C | Random Address Scanning | A | Pass |
3.4.3 LMP
Totol:94 , pass:94
| Test Case | Description | Cat. | Verdict |
|---|---|---|---|
| LMP/SP/ BI-01-C | Numeric Comparison- IUT Initiator – Invalid Public Key Failure, P-192 | B | Pass |
| LMP/SP/ BI-02-C | Numeric Comparison- IUT Responder – Invalid Public Key Failure, P-192 | B | Pass |
| LMP/SP/ BI-05-C | OOB Protocol - IUT Initiator- IUT with OOB Authentication Data – Invalid Public Key Failure, P-192 | B | Pass |
| LMP/SP/ BI-06-C | OOB Protocol - IUT Responder- IUT with OOB Authentication Data – Invalid Public Key Failure, P-192 | B | Pass |
| LMP/SP/ BI-03-C | Passkey Entry- IUT Initiator – Invalid Public Key Failure, P-192 | B | Pass |
| LMP/SP/ BI-04-C | Passkey Entry- IUT Responder – Invalid Public Key Failure, P-192 | B | Pass |
| LMP/AUT/BV-01-C | Authentication Reject , No Link Key | A | Pass |
| LMP/AUT/BV-03-C | Create Link Key | A | Pass |
| LMP/AUT/BV-12-C | Change Link Key, IUT Responder | A | Pass |
| LMP/ ENC/ BV-01-C | Accept Encryption | A | Pass |
| LMP/ ENC/ BV-51-C | Key Size Negotiation as Slave-E0 , Acceptor | A | Pass |
| LMP/ ENC/ BV-02-C | Accept Broadcast Encryption | A | Pass |
| LMP/ ENC/ BV-11-C | Semi-permanent Link Key | B | Pass |
| LMP/ ENC/ BV-04-C | Stop Encryption, Master Command | A | Pass |
| LMP/ ENC/ BV-08-C | Step Encryption, Slave Request | A | Pass |
| LMP/ ENC/ BV-05-C | Initiate Encryption | A | Pass |
| LMP/ ENC/ BV-06-C | Slave Declines Encryption | A | Pass |
| LMP/ ENC/ BV-09-C | Stop Encryption, Master Command | A | Pass |
| LMP/ ENC/ BV-53-C | Key Size Negotiation as Master-E0 | B | Pass |
| LMP/ ENC/ BV-55-C | Key Size Negotiation as Slave-E0 , Initiator | B | Pass |
| LMP/ ENC/ BV-07-C | Initiate Encryption Stop | A | Pass |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| LMP/ ENC/ BV-10-C | Initiate Broadcast Encryption | A | Pass |
|---|---|---|---|
| LMP/ ENC/ BV-13-C | Initiate Semi-permanent Link Key Change | B | Pass |
| LMP/ ENC/ BV-14-C | Pausing and Resuming Encryption without Disabling Encryption Mode-Master Initiated | A | Pass |
| LMP/ ENC/ BV-15-C | Pausing and Resuming Encryption without Disabling Encryption Mode-Slave Initiated | A | Pass |
| LMP/ ENC/ BV-16-C | Pausing and Resuming Encryption without Disabling Encryption Mode-Master Initiated with Role Switch | A | Pass |
| LMP/ ENC/ BV-17-C | Pausing and Resuming Encryption without Disabling Encryption Mode-Slave Initiated with Role Switch | A | Pass |
| LMP/ ENC/ BV-18-C | Starting and Stopping Encryption with Legacy Device-Master Initiated | A | Pass |
| LMP/ ENC/ BV-19-C | Stopping and Restarting Encryption with Legacy Device-Slave Initiated | A | Pass |
| LMP/ ENC/ BV-20-C | Pausing and Resuming without Disabling Encryption, IUT Master, Slave Initiated as a Result of Change Connection Link Key | A | Pass |
| LMP/ ENC/ BV-21-C | Pausing and Resuming without Disabling Encryption, IUT Master, Slave Initiated with Role Switch | A | Pass |
| LMP/ ENC/ BV-23-C | Pausing and Resuming without Disabling Encryption, IUT Slave, Master Initiated as a result of change connection link key | A | Pass |
| LMP/ ENC/ BV-24-C | Pausing and Resuming without Disabling Encryption, IUT Slave, Master Initiated with role switch | A | Pass |
| LMP/ ENC/ BV-22-C | Initiate Encryption | A | Pass |
| LMP/ INF/BV-01-C | Clock Offset Response | A | Pass |
| LMP/ INF/BV-08-C | Version/Company ID Response | A | Pass |
| LMP/ INF/BV-10-C | Supported Features Response | A | Pass |
| LMP/ INF/ BV-11-C | Supported Features Request | A | Pass |
| LMP/ INF/BV-12-C | Name Response | A | Pass |
| LMP/ LIH/ BV-03-C | Unsupported Role Switch | A | Pass |
| LMP/ LIH/ BV-04-C | Close Link on Request | A | Pass |
| LMP/ LIH/ BV-05-C | Close Link , HCI Command | A | Pass |
| LMP/ LIH/ BV-82-C | Setup Rejected | A | Pass |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| LMP/ LIH/ BV-12-C | Hold Mode Unsupported | A | Pass |
|---|---|---|---|
| LMP/ LIH/ BV-20-C | Sniff Mode Reject | A | Pass |
| LMP/ LIH/ BV-39-C | Accept Polling Interval Notification | A | Pass |
| LMP/ LIH/ BV-42-C | Set Polling Interval | A | Pass |
| LMP/ LIH/ BV-40-C | Accept Polling Interval Request | A | Pass |
| LMP/ LIH/ BV-41-C | Polling Interval Rejected | A | Pass |
| LMP/ LIH/ BV-60-C | Reject SCO Request | A | Pass |
| LMP/ LIH/ BV-71-C | Reject Page Mode Negotiation | B | Pass |
| LMP/ LIH/ BV-72-C | Reject Page Scan Negotiation | B | Pass |
| LMP/ LIH/ BV-73-C | Set Supervision Timer as Slave | A | Pass |
| LMP/ LIH/ BV-80-C | Avoid Deadlock as Master | A | Pass |
| LMP/ LIH/ BV-81-C | Avoid Deadlock as Slave | A | Pass |
| LMP/ LIH/ BV-84-C | EDRACL link set up | A | Pass |
| LMP/ LIH/ BV-85-C | EDRACL link remove | A | Pass |
| LMP/ LIH/ BV-86-C | EDR 2-EV3 eSCO link set up | A | Pass |
| LMP/ LIH/ BV-87-C | EDR eSCO link remove | A | Pass |
| LMP/ LIH/ BV-116-C | Reject eSCO Request | A | Pass |
| LMP/SP/ BV-01-C | Simple Pairing Capable Controller-Pairing IUT Initiator | A | Pass |
| LMP/SP/ BV-02-C | Simple Pairing Capable Controller-Pairing IUT Responder | A | Pass |
| LMP/SP/ BV-03-C | Simple Pairing Capable Controller-Legacy Host- IUT Initiator | A | Pass |
| LMP/SP/ BV-04-C | Simple Pairing Capable Controller-Legacy Host- IUT Responder | A | Pass |
| LMP/SP/ BV-05-C | Simple Pairing Capable Controller-Legacy Remote Host- IUT Initiator | A | Pass |
| LMP/SP/ BV-06-C | Numeric Comparison- IUT Initiator-Success | A | Pass |
| LMP/SP/ BV-07-C | Numeric Comparison- IUT Responder Success | A | Pass |
| LMP/SP/ BV-08-C | Numeric Comparison- IUT Initiator-Failure on Initiating Side | A | Pass |
| LMP/SP/ BV-09-C | Numeric Comparison- IUT Responder Failure on Initiating Side | A | Pass |
| LMP/SP/ BV-10-C | Numeric Comparison- IUT Initiator-Failure on Responding Side | A | Pass |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| LMP/SP/ BV-11-C | Numeric Comparison- IUT Responder Failure on Responding Side | A | Pass |
|---|---|---|---|
| LMP/SP/ BV-14-C | Passkey Entry- IUT Initiator-Failure on Initiating Side | A | Pass |
| LMP/SP/ BV-15-C | Passkey Entry- IUT Responder-Failure on Initiating Side | A | Pass |
| LMP/SP/ BV-18-C | OOB Protocol - IUT Initiator- IUT with OOB Authentication Data-Success | A | Pass |
| LMP/SP/ BV-19-C | OOB Protocol - IUT Responder- IUT with OOB Authentication Data-Success | A | Pass |
| LMP/SP/ BV-20-C | OOB Protocol - IUT Initiator – Lower Tester with OOB Authentication Data – Success | A | Pass |
| LMP/SP/ BV-21-C | OOB Protocol - IUT Responder – Lower Tester with OOB Authentication Data – Success | A | Pass |
| LMP/SP/ BV-22-C | OOB Protocol - IUT Initiator- IUT and Lower Tester with OOB Authentication DataSuccess | A | Pass |
| LMP/SP/ BV-23-C | OOB Protocol - IUT Responder- IUT and Lower Tester with OOB Authentication Data – Success | A | Pass |
| LMP/SP/ BV-24-C | OOB Protocol - IUT Initiator- IUT with OOB Authentication Data-Failure | A | Pass |
| LMP/SP/ BV-25-C | OOB Protocol - IUT Responder- IUT with OOB Authentication Data-Failure | A | Pass |
| LMP/SP/ BV-26-C | OOB Protocol - IUT Initiator – Lower Tester with OOB Authentication Data-Failure | A | Pass |
| LMP/SP/ BV-27-C | OOB Protocol - IUT Responder – Lower Tester with OOB Authentication Data-Failure | A | Pass |
| LMP/SP/ BV-28-C | Simple Pairing Debug Mode-Fixed Private Key | A | Pass |
| LMP/SP/ BV-29-C | Simple Pairing Debug Mode-Responding Device Uses Fixed Private Key | A | Pass |
| LMP/SP/ BV-30-C | Simple Pairing Failed- IUT Responder | A | Pass |
| LMP/SP/ BV-31-C | Simple Pairing Capable Controller-Host rejects Simple Pairing- IUT Initiator | A | Pass |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| LMP/SP/ BV-32-C | Simple Capable Controller-Host rejects Simple Pairing- IUT Responder | A | Pass |
|---|---|---|---|
| LMP/SP/ BV-12-C | Passkey Entry- IUT Initiator-Success | A | Pass |
| LMP/SP/ BV-13-C | Passkey Entry- IUT Responder-Success | A | Pass |
| LMP/SP/ BV-16-C | Passkey Entry- IUT Initiator-Failure on Responding Side | A | Pass |
| LMP/SP/ BV-17-C | Passkey Entry- IUT Responder-Failure on Responding Side | A | Pass |
| LMP/TEM/ BV-01-C | Reject Test Mode Request | A | Pass |
| LMP/AUT/BI-01-C | Error Return When a Unit Key is Requested | A | Pass |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
4 . Test Procedure
The test procedure followed for the test cases is in compliance with the applicable test specification as below:
| Test Specification for BB | BB.TS. p29 |
|---|---|
| Test Specification for LL | LL.TS. p 17 |
| Test Specification for LMP | LMP.TS. p39 |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
Annex A ICS/IXIT
Please reference the compliance folder for complete details. Shenzhen Morlab Communications Technology Co. , Ltd. , retains a copy of the data.
Annex B Test Data
[1.Test Data for Compliance Testing: SZ21050145Qualification_Report_Evidence.zip](1.Test Data for Compliance Testing: SZ21050145Qualification_Report_Evidence.zip)
Annex C Test setup

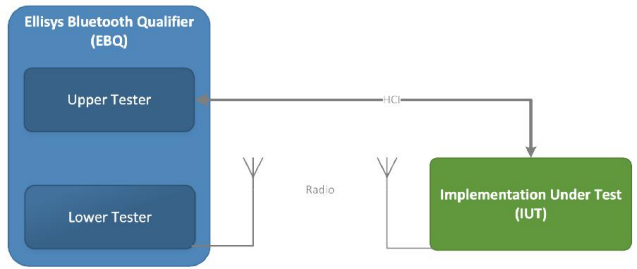

Ellisys Bluetooth Qualifier ( EBQ)
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn

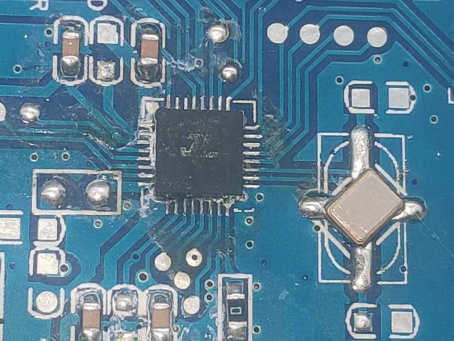

Annex D EUT Photo
***** END OF REPORT *****
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
