SZ21040416B01_JieLi _AC6XXX _BQB RF
TEST REPORT
APPLICANT : ZHUHAI JieLi Technology Co. , Ltd
PRODUCT NAME : AC6XXX， AC7XXX， AC8XXX
MODEL NUMBER : AC6XXX， AC7XXX， AC8XXX
BRAND NAME : JL
BLUETOOVERSIONTH : 5.3
STANDARD(S) : BRluF-ePtoHotYhTLSowp1E5nergy RF-PHY Test Specification
RECEIPT DATE : 2021-05-14
TEST DATE : 2021-05-14 to 2021-06-01
ISSUE DATE : 2021-07-13
Edited by: Li LinBin( Rapporteur)
Approved by: Li Dong (Supervisor)
NOTE: This document is issued by Shenzhen Morlab Communications Technology Co. , Ltd. , the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website.
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
DIRECTORY
- IDENTIFICATION SUMMARY............................................................................................................................. 3
1.1. Test Lab。rat。ry .................................................................................................................................................. 3
1.2. Client ..................................................................................................................................................................4
1.3. Manufacturer ......................................................................................................................................................4
1.4. Implementati。nUnder Test (IUT) ..................................................................................................................... 4
1.5. TestingEnvir。nment ..........................................................................................................................................4
1.6. Test c。nditi。ns: .................................................................................................................................................. 4 - IUT CONFORMANCE STATUS ............................................................................................................................... 5
- STATIC CONFORMANCE SUMMARY.................................................................................................................. 5
- DYNAMIC CONFORMANCE SUMMARY............................................................................................................. 5
- TEST RESULT LIST................................................................................................................................................... 6
Annex A . PICS & PIXIT ...........................................................................................................................................9
Annex B . TEST SYSTEM ...................................................................................................................................... 11
Annex C . TEST SETUP .......................................................................................................................................... 11
Annex D . EUT PHOTO .......................................................................................................................................... 12
| Change History | ||
|---|---|---|
| Version | Date | Reason for change |
| 1.0 | 2021-07-13 | First edition |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
1 . IDENTIFICATION SUMMARY
1 . 1 . Test Laboratory
| Name: | Shenzhen Morlab Communications Technology Co. , Ltd. |
|---|---|
| Address: | 1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road,Zone 67 , Baocheng, Bao’an District, ShenZhen , GuangDong, China |
| City: | Shenzhen |
| Postal code: | 518101 |
| Country: | P. R. China |
| Telephone: | +86 0755 36698555 |
| Fax: | +86 0755 36698525 |
| URL: | www.morlab.cn |
Competences and guarantees:
Morlab is a testing laboratory competent to carry out the tests described in this report.
In order to assure the traceability to other national and international laboratories, Morlab has a calibration and maintenance programme for its measuring equipment.
Morlab guarantees the reliability of the data presented in this report , which is the result of measurements and tests performed to the item under test on the date and under the conditions stated on the report and is based on the knowledge and technical facilities available at Morlab at the time of execution of the test.
Morlab is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the item under test and the results of the test.
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
1 .2 . Client
| Name: | ZHUHAI JieLi Technology Co. , Ltd |
|---|---|
| Address: | 333 Kexing Rd. ,Xiangzhou Dist. , Zhuhai,Guangdong,China |
1 .3 . Manufacturer
| Name: | ZHUHAI JieLi Technology Co. , Ltd |
|---|---|
| Address: | 333 Kexing Rd. ,Xiangzhou Dist. , Zhuhai,Guangdong,China |
1 .4 . Implementation Under Test ( IUT)
| Hw version: | 1.00 |
|---|---|
| Sw version: | 1.00 |
| Description of IUT: | This is a Bluetooth dual module 5.3 |
| Sampling method: | Samples undergoing test have been selected by: the client |
| Internal Control No.: | Element: | BT_ADD: |
|---|---|---|
| 1# | 1PCS | 123456563412 |
1 .5 . Testing Environment
| PICS: | See annex A |
|---|---|
| Test Results reference: | See item 5 |
| Retention date for log reference: | 2 years |
| Test Requested | Bluetooth RF conformance testing |
1 .6 . Test conditions:
NOMINAL
| TEMPERATURE IN THE RANGE 15ºC TO 35 ºC RELATIVE HUMIDITY IN THE RANGE 20% TO 75 % AIR PRESSURE IN THE RANGE 86 kPa TO 106 kPa | YES YES YES |
|---|
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
2 . IUT CONFORMANCE STATUS
This IUT has the following conformance status according to the referenced ATS specification(s) .
| Static Conformance errors? | NO |
|---|---|
| Dynamic Conformance errors? | NO |
Number of test cases run
| PASSED: | 26 |
|---|---|
| Failed: | 0 |
| Total: | 26 |
3 . STATIC CONFORMANCE SUMMARY
The PICS(s) for this IUT is consistent with the static conformance requirements in the referenced base specification(s) .
The qualified PICS/ PIXIT menu of the test system was defined in accordance with the client.
4 . DYNAMIC CONFORMANCE SUMMARY
The test campaign did NOT reveal errors in t he IUT.
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
5 . TEST RESULT LIST
| BR-RF TEST RESULTS | |||||
|---|---|---|---|---|---|
| Test Case ID | Temper at. | Voltage | Verdict | Test Execution Date | Test Equipment Platform |
| RF/TRM/CA/ BV-01-C Output Power | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMSRTSB-A Test System |
| RF/TRM/CA/ BV-02-C Power density | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-03-C Power Control | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-04-CTX Output Spectrum Frequency range | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-05-CTX Output Spectrum- 20 dB Bandwidth | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-06-CTX Output SpectrumAdjacent channel power | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-07-C Modulation Characteristics | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-08-C Initial Carrier Frequency Tolerance | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-09-C Carrier Frequency Drift | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/ RCV/CA/ BV-01-C Sensitivity-single slot packets | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/ RCV/CA/ BV-02-C Sensitivity-multi-slot packets | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| RF/ RCV/CA/ BV-03-C C/ I performance | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
|---|---|---|---|---|---|
| RF/ RCV/CA/ BV-04-C Blocking performance | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/ RCV/CA/ BV-05-CIntermodulation Performance | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/ RCV/CA/ BV-06-C Maximum Input Level | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| EDR-RF TEST RESULTS | |||||
| Test Case Id | Temper at. | Voltage | Verdict | Test Execution Date | Test Equipment Platform |
| RF/TRM/CA/ BV-10-CEDR Relative Transmit Power | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-11-CEDR Carrier Frequency Stability and Modulation Accuracy | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-12-CEDR Differential Phase Encoding | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-13-CEDR In-band Spurious Emissions | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-14-C Enhanced Power Control | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-15-C EDR Guard Time | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/TRM/CA/ BV-16-CEDR Synchronization Sequence and Trailer | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/ RCV/CA/ BV-07-C EDR Sensitivity | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
| RF/ RCV/CA/ BV-08-CEDR BER Floor Performance | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
|---|---|---|---|---|---|
| RF/ RCV/CA/ BV-09-C EDR C/ I Performance | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
| RF/ RCV/CA/ BV-10-CEDR Maximum Input Level | Nominal | Nominal | Pass | 2021.05.14- 2021.06.01 | CTTL-SYSTEMS RTSB-A Test System |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
Annex A. PICS & PIXIT
Table 1:Bluetooth RF Capabilities
| Item | Capability | Reference | Status | Support: YES or NO |
|---|---|---|---|---|
| 1/ 1 | Power Class 1 | [ 1] 3 | C.5 | YES |
| 1/2 | Power Class 2 | [ 1] 3 | C.5 | NO |
| 1/3 | Power Class 3 | [ 1] 3 | C.5 | NO |
| 1/4 | Power Control | [ 1] 3 | C.1 | YES |
| 1/5 | 1-slot packets supported | [2] 6.5 | M | YES |
| 1/6 | 3-slot packets supported | [2] 6.5 | O | YES |
| 1/7 | 5-slot packets supported | [2] 6.5 | O | YES |
| 1/8 | 79 Channels | [ 1] 2 | M | YES |
| 1/9 | Support for GFSK modulation | [ 1] 3.1 | M | YES |
| 1/ 10 | Support for pi/4-DQPSK modulation | [ 1] 3.2 | C.2 | YES |
| 1/ 11 | Support for 8 DPSK modulation | [ 1] 3.2 | C.3 | YES |
| 1/ 12 | Enhanced Power Control | [ 1] 3 | C.4 | YES |
C.1 : Mandatory IF RF 1/ 1 “Power Class 1” is supported ; Optional IF RF 1/2 “Power Class 2” OR RF 1/3 “Power Class 3” is supported, otherwise Excluded. C.1 : Mandatory to support IF Power Class 1 is supported , ELSE Optional.
C.2: Mandatory IF (SUM ICS 22/ 1 “EDR for asynchronous transports (single slot)” OR SUM ICS 22/2 “EDR for asynchronous transports (multi-slot)” OR SUM ICS 22/3 “EDR for synchronous transports” OR SUM ICS 22/4 “EDR for synchronous transports”) is supported, otherwise Excluded.
C.3 : Mandatory IF (SUM ICS 22/ 1 “EDR for asynchronous transports (single slot)” OR SUM ICS 22/2 “EDR for asynchronous transports (multi-slot)) OR SUM ICS 22/3 “EDR for synchronous transports”) is supported ; Optional IF (SUM ICS 22/4 “EDR for synchronous transports”) is supported , otherwise
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
Excluded.
C.4: Optional IF SUM_ICS , 21/8 “Core Specification 3.0” or later AND RF 1/4 “Power Control” is supported, otherwise Excluded.
C.5 : At least one of RF 1/ 1 “Power Class 1” OR RF 1/2 “Power Class 2” OR 1/3 “Power Class 3” shall be supported.
Table 2:PIXIT for Conformance Test
| IXIT Reference | Identifier | Value | Units ( if applicable) | Comments |
|---|---|---|---|---|
| RF:P1 | Timer for TX power control | 0 | ms | RF/TRM/CA/BV-03-C Power Control |
| RF:P2 | Inband Image frequency | 3 | MHz | RF/ RCV/CA/BV-03-C C/ I Performance RF/ RCV/CA/BV-09-C EDR C/ I Performance |
| RF:P3 | Value n for Intermodulation test | 5 | Integer | RF/ RCV/CA/BV-05-C Intermodulation Performance |
| RF:P6 | Type of power source | DC | Chapter 6.4 , RF Test Suite | |
| RF:P7 | Nominal power source voltage | 3.7 | V | Chapter 6.4 , RF Test Suite |
| RF:P8 | Operating temperature range | 25 | °C | Chapter 6.5 , RF Test Suite |
| RF:P9 | Extreme power source voltage | 3.6 ,4.2 | V | Chapter 6.5 , RF Test Suite |
| RF:P10 | Antenna gain | 0 | dB | Chapter 6.9 , RF Test Suite |
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn
Annex B. TEST SYSTEM
| Equipment Name | Serial No. | Type | Manufacturer | Cal Date | Due Date |
|---|---|---|---|---|---|
| CTTL-SYSTEMS-RTSB-A Test System | |||||
| Spectrum Analyser | MY53120346 | N9030A | Keysight | 2020.07.27 | 2021.07.26 |
| RF Signal Generator | MY45095851 | E4438C | Agilent | 2021.03.25 | 2022.03.24 |
| Wideband Generator | MY47461226 | E8257D | Agilent | 2021.03.25 | 2022.03.24 |
| Signalling Unit | 6 K00005351 | MT8852B | Anritsu | 2020.10.28 | 2021.10.27 |
| Industrial PC | -- | TEMPEL | Advantech | -- | -- |
| RTSB-A Switch Unit | -- | RTSB-A | CTTL | -- | -- |
| RF Tester Software | -- | SW ver. 3.0.0 | CTTL | -- | -- |

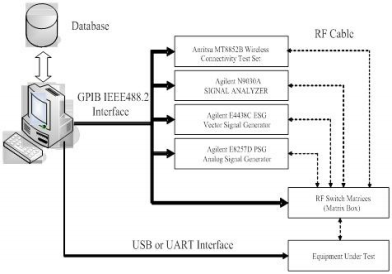

Annex C. TEST SETUP
CTTL-SYSTEMS-RTSB-A Test System
MORLAB
Shenzhen Morlab Communications Technology Co. , Ltd.
1-3/F, Building A, FeiYang Science Park, No.8 LongChang Road , Zone 67 , Baocheng , Bao’an District , ShenZhen , GuangDong , China
Tel: 86-755-36698555 Fax: 86-755-36698525
Http://www.morlab.cn E-mail: service@morlab.cn

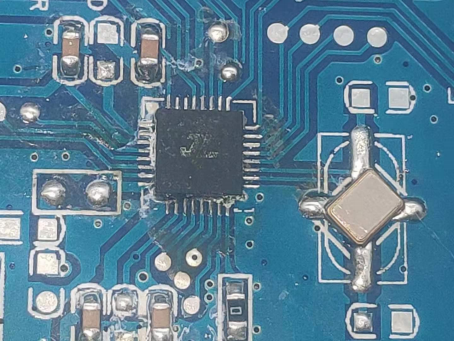

Annex D. EUT PHOTO
***** END OF REPORT ****
