JL7016M Datasheet V1.2

📎 原始文档：https://www.kdocs.cn/l/cv8RyMIOqKyl

JL7016M Datasheet

Zhuhai Jieli Technology Co.,LTD

Version：1.2

JL7016M Features

CPU

32bit Dual-Core DSP
Maximum speed 160MHz
32KB ICache and 16KB DCache
IEEE754 Single precision FPU
Mathematical accelerate engine
Interrupts with 8 priority level

Memory

On-chip 640KB SRAM
Support MMU
Built-In Flash

Clocks

On-chip 16 MHz clock oscillator
On-chip 200 kHz lower-temperature-drift clock oscillator
24 MHz crystal oscillator

SBC, AAC Audio decodes supported for BT audio
mSBC voice codec supported for BT phone
Supports MP2, MP3, WMA, APE, FLAC, AAC, MP4, M4A, WAV, AIF, AIFC audio decoding
Packet Loss Concealment (PLC) for voice processing
Single/Dual MIC Environmental Noise Cancellation (ENC)
Multi-band DRC limiter
Multi-band EQ configuration for voice Effects

Audio Codec

Two channels 24-bit DAC,SNR ≥ 104dB
Two channels 24-bit ADC,SNR ≥ 95dB
Audio DAC Sampling rates of
8kHz/11 .025kHz/16kHz/22 .05kHz/24kHz/ 32kHz/44 . 1kHz/48kHz/64kHz/88 .2kHz/ 96kHz are supported
Audio ADC Sampling rates of 8kHz/11 .025kHz/16kHz/22 .05kHz/24kHz/32 kHz/44 . 1kHz/48kHz are supported
Support four digital/analog MIC inputs
Two channels analog audio inputs
Audio DAC supports differential cap-less mode or single-ended mode
Direct drive 16ohm/32ohm Speaker loading

Bluetooth

Compliant with Bluetooth
V5 .3+BR+EDR+BLE specification
Support AoA/AoD direction finding
Support LE audio BIS/CIS full function
Meet class2 and class3 transmitting power requirement
Maximum +9dbm transmitting power
EDR receiver with-95dBm sensitivity
Support a2dp\avctp\avdtp\avrcp\hfp\spp\smp\ att\gap\gatt\rfcomm\sdp\l2cap profile
bap 1.0\pacs 1.0\ccp 1.0\mcp 1.0\micp
1.0\vcp 1.0\csip 1.0
a2dp 1.3.2\avctp 1.4\avdtp 1.3\ avrcp
1.6.2\hfp 1.8 \spp 1.2\rfcomm 1. 1\pnp 1.3\hid

1. 1\sdp core5 .3\l2cap core 5.3

Peripherals

One full speed USB OTG controller
One SD host controller for eMMC/SD
Six multi-function 32-bit timers, support capture and PWM mode
Four UART interface, UART0,UART1&UART2 support DMA
I2C Master/Slave interface
SPI Master/Slave interface
I2S Master/Slave interface
QDEC
Low power CapSense
13-channel 10-bit ADC for analog sampling
4-channel Motor PWM controller
16 Individually programmable and multiplexed GPIO pins
Up to 12 external interrupt/wake-up source(low power available,can be multiplexed to any I/O)

PMU

Built-in lithium battery charging manager,up to 200mA charging current
Built-in LDO and Buck DC-DC converter
Less than 2uA sleep current
VPWR range : 4.5V to 5.5V
VBAT range : 2.2V to 4.5V
IOVDD range : 2.2V to 3.6V
Packages
QFN32(4mm*4mm)
Temperature
Operating temperature: -40℃ to +85℃
Storage temperature: -65℃ to +150℃

Applications

Wireless microphone
Bluetooth Stereo Headsets and Headphones
Bluetooth TWS Earphones

1 Block Diagram

Figure 1-1 JL7016M Block Diagram

2 Pin Definition

2. 1 Pin Assignment

Figure 2-1 JL7016M Package Diagram

2.2 Pin Description

Table 2-1 JL7016M Pin Description

PIN NO.	Name	Type	Function	Other Function
1	AVSS	G		Audio analog ground;
2	NC
3	HPVDD	PI		Audio power;
	IOVDD	PO		Built-in linear voltage regulator output;
4	PG8	I/O	GPIO	MICIN2: MIC2 Input Channel 2; MIC2_P: Different MIC2 Positive; AMUX_C0:Analog Channel C0 input;
5	PG7	I/O	GPIO	MIC_BIAS2: MIC2 Bias Output(Built-in resistor); MIC2_N: Different MIC2 Negative; AMUX_C1: Analog Channel C1 input; ADC15: ADC Input Channel 15;
6	PG5	I/O	GPIO	MIC_BIAS3: MIC3 Bias Output(Built-in resistor); MIC3_N: Different MIC3 Negative; AMUX_D1:Analog Channel D1 input; ADC14: ADC Input Channel 14; TMR3CK: PWM Timer3 CLK In;
7	PGND	G		The ground of Buck DC-DC converter;
8	SW	PO		Switch signal of the Buck converter, connected to inductor;
9	VBAT	P		Battery interface;
10	VPWR (PP0)	PI (I/O)	GPIO (High Voltage Input)	Charging Power Input; High Voltage Resistance I/O; UART0TXB: Uart0 Data Out(B); UART0RXB: Uart0 Data In(B); PWM3: Timer3 PWM Output; CAP1: Timer1 Capture;
11	DCVDD	P		Internal Power;
12	PB3	I/O	GPIO (High Voltage Input)	SPI4DOA: SPI4 Data Out(A); Q-decoder0_ 1: Quadrature decoder0_ 1; UART3RXA: Uart3 Data In(A);
13	PB2	I/O	GPIO (High Voltage Input)	LP_Touch2: Low Power Touch Channel 2; SPI4CLKA: SPI4 Clock(A); Q-decoder0_ 0: Quadrature decoder0_0; ADC7: ADC Input Channel 7; UART3TXA: Uart3 Data Out(A); CAP5: Timer5 Capture;

14	PB1	I/O	GPIO (High Voltage Input)	Hold down 0 to reset; LP_Touch1: Low Power Touch Channel 1; ADC6: ADC Input Channel 6;
15	PB0	I/O	GPIO (High Voltage Input)	LP_Touch0: Low Power Touch Channel 0; TMR4: Timer4 Clock Input;
16	BTRF	RFI		Bluetooth RF antenna interface;
17	VSS	G		System Ground
18	XOSCI	I		System Crystal Oscillator Input;
19	XOSCO	O		System Crystal Oscillator Output;
20	PC5	I/O	GPIO	SPI0_DAT2C: SPI0 Data2(C); SD0_CLKA: SD0 Clock(A); SPI1DOB: SPI1 Data Out(B); IIC0_SDA_B: IIC0 SDA(B); ALNK_DAT3(B): Audio Link Data3(B); ADC5: ADC Input Channel 5; UART2RXA: Uart2 Data In(A);
21	PC4	I/O	GPIO	SPI0_DIC: SPI0 Data In(C); SD0CMDA: SD0 CMD(A); SPI1CLKB: SPI1 Clock(B); IIC0_SCL_B: IIC0 SCL(B); ALNK_DAT2B: Audio Link Data2(B); ADC4: ADC Input Channel 4; UART2TXA: Uart2 Data Out(A); PWM4: Timer4 PWM Output;
22	PC3	I/O	GPIO	SPI0_CSC: SPI0 Chip Select(C); SD0DATOA: SD0 Data Out(A); SPI1DIB: SPI1 Data In(B); ALNK_LRCKB: Audio Link Word Select(B); TMR3: Timer3 Clock Input;
23	PC2	I/O	GPIO	SPI0_DOC: SPI0 Data Out(C); ALNK_SCLKB: Audio Link Serial Clock(B); TMR1: Timer1 Clock Input;
24	USBDM	I/O	USB Negative Data (pull down)	SDTAP_DATB: SDTAP Data(B); SPI2DOB: SPI2 Data Out(B); IIC0_SDA_A: IIC0 SDA(A); ADC11: ADC Input Channel 11; UART1RXB: Uart1 Data In(B);
25	USBDP	I/O	USB Positive Data (pull down)	SDTAP_CLKB: SDTAP CLK(B); SPI2CLKB: SPI2 Clock(B); IIC0_SCL_A: IIC0 SCL(A); ADC10: ADC Input Channel 10; UART1TXB: Uart1 Data Out(B);

26	PA2	I/O	GPIO	MIC_BIAS0: MIC0 Bias Output(Built-in resistor); MIC0_N: Different MIC0 Negative; AMUX_A1:Analog Channel A1 input; CLKOUT1: Clock Out1; SPI1CLKA: SPI1 Clock(A); ALNK_MCLKA: ALNK Master Clock(A); UART1RXA: Uart1 Data In(A); CAP3: Timer3 Capture;
27	PA1	I/O	GPIO	MICIN0: MIC0 Input Channel 0; MIC0_P: Different MIC0 Positive; AMUX_A0:Analog Channel A0 input; SPI1DIA: SPI1 Data In(A); UART1TXA: Uart1 Data Out(A); PWM0: Timer0 PWM Output;
28	DACLP	AO		Left channel audio output positive;
29	DACRP	AO		Right channel audio output positive;
30	NC	P
31	NC	P
32	VCM	P		Audio analog reference bias;
PAD	VSS	G		System Ground;

Pin Type	Description	Pin Type	Description
P	Power	I/O	Input or Output
PO	Power Output	I	Input
PI	Power Input	O	Output
G	Ground	RFI	Radio frequency interface
AO	Analog Output

3 Electrical Characteristics

3. 1 Absolute Maximum Ratings

Table 3-1

Symbol	Parameter	Min	Max	Unit
Topt	Operating temperature	-40	+85	°C
Tstg	Storage temperature	-65	+150	°C
VBAT	Supply Voltage	-0.3	4.5	V
VPWR	Charger Voltage	-0.3	6	V
VIOVDD	Voltage applied at IOVDD	-0.3	3.6	V
VGPIO	Voltage applied to GPIO	-0.3	IOVDD+0 .3	V
VHVIO	Voltage applied to High Voltage Resistant IO	-0.3	+5 .5	V
VHPVDD	Voltage applied at HPVDD	-0.3	+3	V

Note : The chip can be damaged by any stress in excess of the absolute maximum ratings listed below

3.2 PMU Characteristics

Symbol	Parameter	Min	Typ	Max	Unit	Test Conditions
VBAT	Voltage Input	2.2	3.7	4.4	V
VPWR	Charger supply Voltage	4.5	5.0	5.5	V
Operating mode
IOVDD	Voltage output	_	3.0	_	V	VBAT = 4.2V, 10mA loading
	Loading current	_	_	200	mA	IOVDD=3.2V@VBAT = 3.5V
DCVDD	Voltage output	_	1.25	_	V	IOVDD=3.0V, 10mA loading
	Loading current	_	_	100	mA	DCVDD= 1.25V@IOVDD=3.0von LDO mode
		_	_	180	mA	DCVDD= 1.25V@VBAT=3.0von DCDC mode
EVDD	Voltage output	_	1. 1	_	V	DCVDD= 1.25V, 1mA loading
	Loading current	_	_	5	mA	EVDD= 1. 1V@DCVDD= 1.25v
Low Power mode
IOVDD	Loading current	_	_	10	mA	IOVDD=3V@VBAT = 4.2V

Table 3-2

3.3 Battery Charge

Table 3-3

Symbol	Parameter	Min	Typ	Max	Unit	Test Conditions
VPWR	Charge Input Voltage	4.5	5	5.5	V	_
Vbat float	Charge Voltage	4.15	4.2	4.25	V	VPWR＞4 .5V
		4.30	4.35	4.40	V	VPWR＞4 .65V
Ibat	Charge Current	15	_	200	mA	Charge current at fast charge mode VBAT=4.0V@VPWR=5.0V
Iend	End Of Charge Current	2	_	30	mA	End of charge current
VTrikl	Trickle Charge Voltage	_	3.0	_	V	VPWR＞4 .5V

3.4 IO Input/Output Electrical Logical Characteristics

Table 3-4

GPIO input characteristics
Symbol	Parameter	Min	Typ	Max	Unit	Test Conditions
VIL	Low-Level Input Voltage	-0.3	_	0.3* IOVDD	V	IOVDD = 3.0V
VIH	High-Level Input Voltage	0.7* IOVDD	_	IOVDD+0 .3	V	IOVDD = 3.0V
High Voltage Resistant IO input characteristics
Symbol	Parameter	Min	Typ	Max	Unit	Test Conditions
VIL	Low-Level Input Voltage	-0.3	_	0.3* IOVDD	V	IOVDD = 3.0V
VIH	High-Level Input Voltage	0.7* IOVDD	_	+5V	V	IOVDD = 3.0V
GPIO & High Voltage Resistant IO output characteristics
Symbol	Parameter	Min	Typ	Max	Unit	Test Conditions
VOL	Low-Level Output Voltage	_	_	0.1* IOVDD	V	IOVDD = 3.0V
VOH	High-Level Output Voltage	0.9* IOVDD	_	_	V	IOVDD = 3.0V

3.5 Internal Resistor Characteristics

Table 3-5

Port	Drive(mA)		Internal Pull-Up Resistor	Internal Pull-Down Resistor	Comment
PA1, PA2 PC2~PC5 PG5~PG8	HD,HD0==0,0	2.4	10K	10K	1、 PB1 default pull up 2、 USBDM & USBDP default pull Down 3、 internal pull-up / pull-down resistance
	HD,HD0==0, 1	8
	HD,HD0==1,0	26
	HD,HD0==1, 1	46
PP0 PB0~PB3	8 (High Voltage Resistant)		10K	10K
USBDP	4		1.5K	15K
USBDM			180K	15K

3.6 Audio DAC Characteristics

Parameter	MODE	Min	Typ	Max	Unit	Test Conditions
Frequency Response		20	_	20k	Hz	1KHz/0dB 32 ohm loading With A-Weighted Filter
Output Swing	Differential		1.0		Vrms
	Single-ended	_	0.5	_	Vrms
THD+N	Differential	_	-70	_	dB
	Single-ended	_	-67	_	dB
S/N	Differential	_	104	_	dB
	Single-ended	_	98	_	dB
Dynamic Range	Differential	_	104	_	dB	1KHz/ -60dB 32 ohm loading With A-Weighted Filter
	Single-ended	_	98	_	dB
Noise Floor	Differential		5.7		uVrms	A-Weighted Filter
	Single-ended	_	5.8	_	uVrms
DAC Output Power	Differential		30		mW	32ohm loading
	Single-ended		16		mW

Table 3-6

3.7 Audio ADC Characteristics

Table 3-7

Parameter	Min	Typ	Max	Unit	Test Conditions
Dynamic Range		94		dB	Fsample=44. 1kHz,Gain=0dB Fin=1KHz 590mVrms
SNR	_	95	_	dB	Fsample=44. 1kHz,Gain=0dB Fin=1KHz 590mVrms
THD+N	_	-75	_	dB
SNR	_	76	_	dB	Fsample=44. 1kHz,Gain=18dB Fin=1KHz 75mVrms
THD+N	_	-73	_	dB

3.8 BT Characteristics

3.8.1 Transmitter

Basic Rate Table 3-8

Parameter		Typ	Max	Unit	Test Conditions
RF Transmit Power		7	9	dBm	25℃, Power Supply VBAT=3.7V 2441MHz
RF Power Control Range		18		dB
20dB Bandwidth		950		KHz
In-band spurious Emissions （BQB Test Mode RF_Tx Power=5dBm）	F=F0 ± 1MHz	-20		dBm
	F=F0 ±2MHz	-51		dBm
	F=F0 ±3MHz	-55		dBm
	F=F0+/-＞3MHz	-55		dBm

Enhanced Data Rate Table 3-9

Parameter		Typ	Unit	Test Conditions
Relative Power		-2	dB	25℃, Power Supply VBAT=3.7V 2441MHz
π/4 DQPSK Modulation Accuracy	DEVM RMS	9	%
	DEVM 99%	23	%
	DEVM Peak	18	%
In-band spurious Emissions （BQB Test Mode RF_Tx Power=5dBm）	F=F0 ± 1MHz	-4	dBm
	F=F0 ±2MHz	-34	dBm
	F=F0 ±3MHz	-43	dBm
	F=F0+/-＞3MHz	-48	dBm

3.8.2 Receiver

Basic Data Rate Table 3-10

Parameter		Typ	Unit	Test Conditions
Sensitivity		-92	dBm	25℃, Power Supply VBAT=3.7V 2441MHz DH5
Co-channel Interference Rejection		10	dB
Adjacent channel selectivity C/I	+1MHz	-4	dB
	-1MHz	-3	dB
	+2MHz	-39	dB
	-2MHz	-33	dB
	+3MHz	-45	dB
	-3MHz	-28	dB

Enhanced Data Rate Table 3-11

Parameter		Min	Typ	Unit	Test Conditions
Sensitivity		-95	-94	dBm	25℃, Power Supply VBAT=3.7V 2441MHz 2DH5
Co-channel Interference Rejection			10	dB
Adjacent channel selectivity C/I	+1MHz		-8	dB
	-1MHz		-8	dB
	+2MHz		-40	dB
	-2MHz		-33	dB
	+3MHz		-45	dB
	-3MHz		-27	dB

3.8.3 BLE

1M Data Rate Table 3-12

Parameter		Min	Typ	Max	Unit	Test Conditions
Sensitivity			-96		dBm	25℃ Power Supply VBAT=3.7V 2440MHz
RF Transmit Power			7		dBm
In-band Spurious Emission		M-N	=2MHz		-37
		M-N	≥3MHz			-34
Modulation Characteristics	Δf1 avg		250		KHz
	Δf2 99%		211		KHz
	Δf1avg/Δf2avg		0.9
Carrier Frequency Offset		-15		+15	KHz
Frequency Drift		-25		+25	KHz
Frequency Drift Rate		-5		+5	KHz/50us

2M Data Rate Table 3-13

Parameter		Min	Typ	Max	Unit	Test Conditions
Sensitivity			-94		dBm	25℃ Power Supply VBAT=3.7V 2440MHz
RF Transmit Power			7		dBm
In-band Spurious Emission		M-N	=4MHz		-44
		M-N	=5MHz		-43
		M-N	≥6MHz			-48
Modulation Characteristics	Δf1 avg		500		KHz
	Δf2 99%		428		KHz
	Δf1avg/Δf2avg		0.9
Carrier Frequency Offset		-20		+20	KHz

Frequency Drift	-25		+25	KHz
Frequency Drift Rate	-5		+5	KHz/50us

Long Range Table 3.14

Parameter	Min	Typ	Max	Unit	Test Conditions
Sensitivity LE 125K(S8)		-104		dBm	VBAT=3.7V,25℃ 2440MHz
Sensitivity LE 500K(S2)		-100		dBm

3.9 ESD Protectio

Table 3.15

Parameter	Typ.	Test pin	Reference standard
Human Body Mode	±4KV	All pins	JEDEC EIA/JESD22-A114
Machine Mode	±200V	All pins	JEDEC EIA/JESD22-A115
Charge Device Model	± 1KV	All pins	JEDEC EIA/JESD22-C101F
Latch up	±200mA	All GPIO pins	JEDEC STANDARD NO.78E
	1.5xVopmax	All power pins

Note : 1.5xVopmax = 1.5 times maximum operating voltage.

4 Package Information

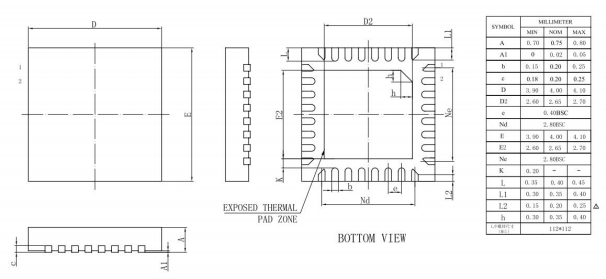

4. 1 QFN32_4.0x4.0

Figure 4-1 JL7016M Package

5 IC Marking Information

① LLLLLLLLLL：Production Batch
② JL70lNx：Chip Model
③ x：Built-in flash size
0: No Flash Memory
2: 2Mbit Flash
4: 4Mbit Flash
8: 8Mbit Flash
6: l6Mbit Flash
3: 32Mbit Flash

6 Solder-Reflow Condition

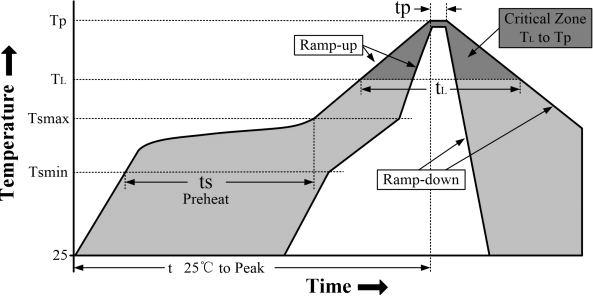

Figure 6-1 Classification Reflow Profile

Classiﬁcation Proﬁles Table 6-1

Proﬁle Feature		Sn-Pb Eutectic Assembly	Pb-Free Assembly
Preheat/ Soak	Temperature Min (Tsmin)	100℃	150℃
	Temperature Max (Tsmax)	150℃	200℃
	Time (ts) from (Tsmin to Tsmax)	60-120 seconds	60-180 seconds
Average ramp-up rate (Tsmax to Tp)		3℃/second max	3℃/second max
Liquidous temperature (TL) Time (tL) maintained above TL		183℃ 60-150 seconds	217℃ 60-150 seconds
Peak package body temperature (Tp)		See Table 6-2	See Table 6-3
Time within 5℃ of actual Peak Temperature (tp)2		10-30 seconds	20-40 seconds
Ramp-down rate (Tp to TL)		6℃/second max	6℃/second max
Time 25℃ to peak temperature		6 minutes max	8 minutes max

Note 1: All temperatures refer to topside of the package, measured on the package body surface.
Note 2: Time within 5℃ of actual peak temperature (tp) specified for the reflow profiles is a “supplier” minimum and “user” maximum.
SnPb-Classification Temperature Table 6-2

Package Thickness	Volume mm3 < 350	Volume mm3 ≥ 350
<2 .5 mm	240 +0/ -5℃	225 +0/ -5℃
≥2 .5 mm	225 +0/ -5℃	225 +0/ -5℃

Pb-free-Classification Temperature Table 6-3

Package Thickness	Volume mm3 < 350	Volume mm3 350-2000	Volume mm3 > 2000
< 1.6mm	260℃	260℃	260℃
1.6 mm-2.5mm	260℃	250℃	245℃
> 2.5mm	250℃	245℃	245℃

Calculated shelf life in sealed bag 12 months at＜40°C and 90% relative humidity (RH) .
Peak package body temperature≤260°C.
After bag is opened,devices that will be subjected to reflow solder or other high temperature process must be mounted within 168 hours of factory conditions≤30°C/60%RH or stored per J-STD-033.
Devices require bake before mounting if humidity indicator card reads ＞ 10% for level 2a-5a devices or＞60% for level 2 devices when read at 23±5°C,or 3a or 3b are not met.
Please refer to IPC/JEDEC J-STD-033 for baking procedure if necessary.

8 Revision History

Date	Revision	Description
2022.06.08	V1 .0	Initial Release
2022.07.20	V1 . 1	Update BT Characteristics
2022.09.20	V1 .2	Add Storage Condition， Update IC Marking Information
