700N1T2可视化工具按键控制一拖二双连接开关

📎 原始文档：https://www.kdocs.cn/l/cpwNVSFb91Oa 700N1T2可视化工具按键控制一拖二双连接开关

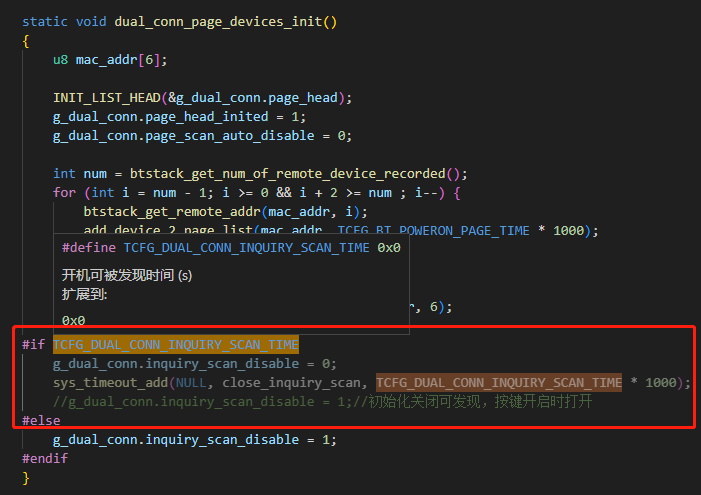

  1. 开机关闭第二台设备可发现可连接 开机可被发现时间设置为0，开机就不自动跑120s的一拖二流程了

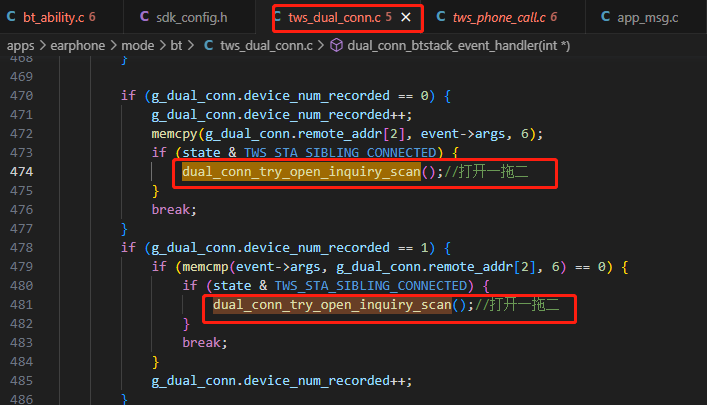

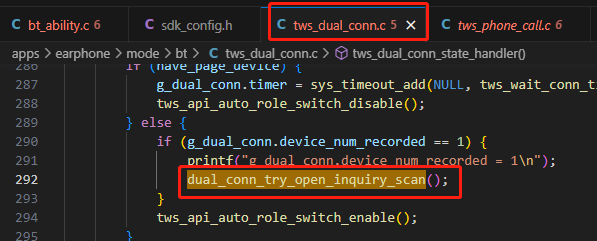

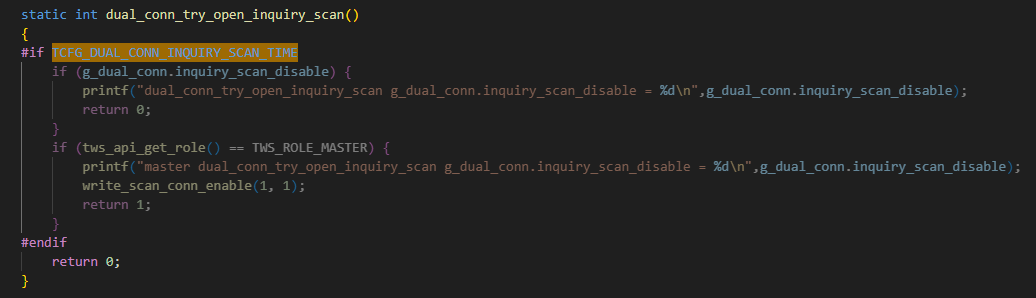

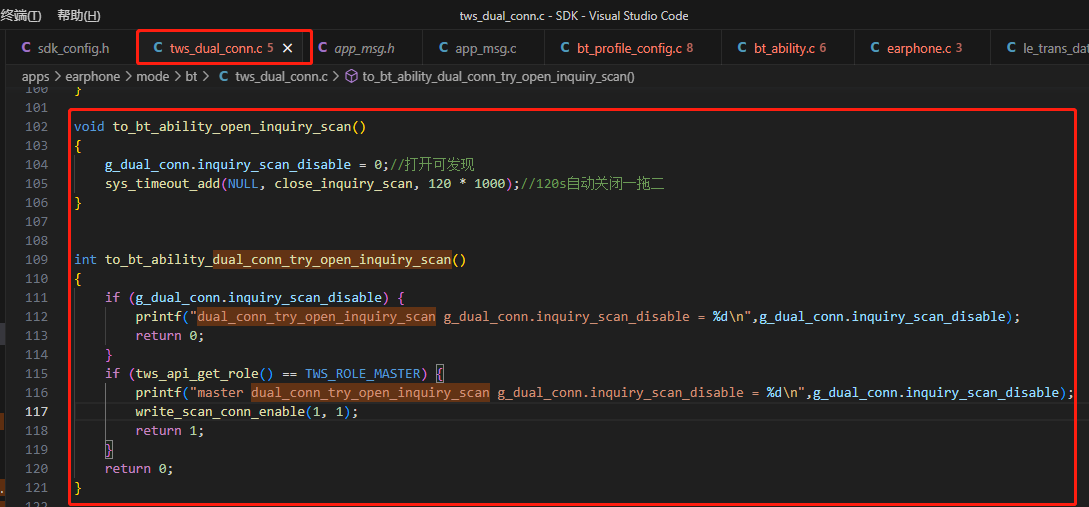

  2. tws_dual_conn.c中增加如下代码 image

void to_bt_ability_open_inquiry_scan()
{
    g_dual_conn.inquiry_scan_disable = 0;//打开可发现
    sys_timeout_add(NULL, close_inquiry_scan, 120 * 1000);//120s自动关闭一拖二
}


int to_bt_ability_dual_conn_try_open_inquiry_scan()
{
    if (g_dual_conn.inquiry_scan_disable) {
        printf("dual_conn_try_open_inquiry_scan g_dual_conn.inquiry_scan_disable = %d\n",g_dual_conn.inquiry_scan_disable);
        return 0;
    }
    if (tws_api_get_role() == TWS_ROLE_MASTER) {
        printf("master dual_conn_try_open_inquiry_scan g_dual_conn.inquiry_scan_disable = %d\n",g_dual_conn.inquiry_scan_disable);
        bt_set_need_keep_scan(1);
        write_scan_conn_enable(1, 1);
        return 1;
    }
    return 0;
}

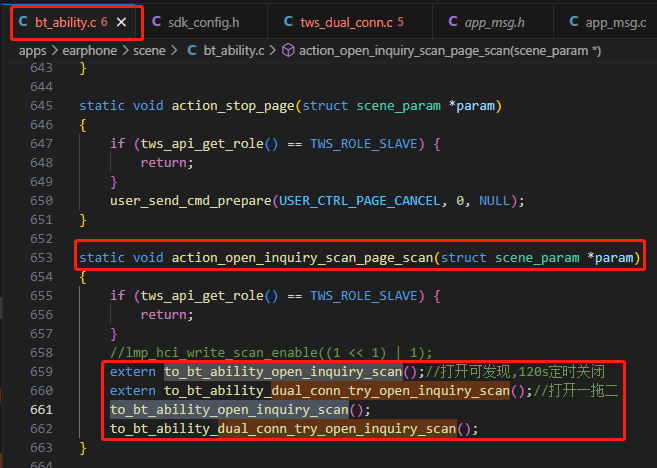

  1. bt_ability增加如下代码，修改蓝牙可发现可连接的操作列表 image
extern to_bt_ability_open_inquiry_scan();//打开可发现,120s定时关闭
extern to_bt_ability_dual_conn_try_open_inquiry_scan();//打开一拖二
to_bt_ability_open_inquiry_scan();
to_bt_ability_dual_conn_try_open_inquiry_scan();

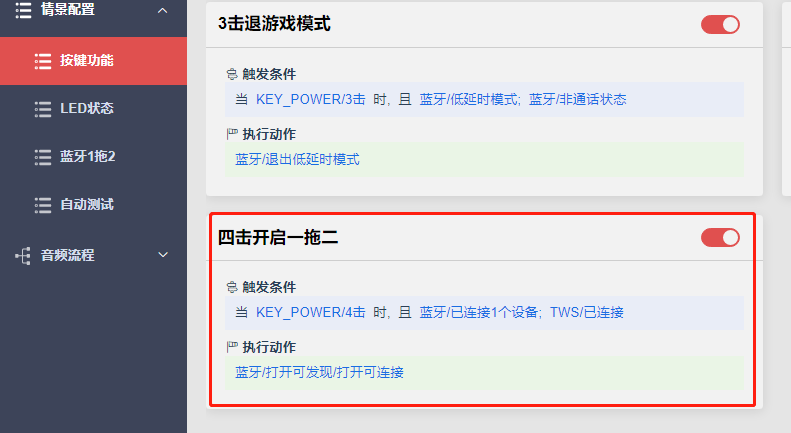

  1. 情景配置按键功能 image
