图表

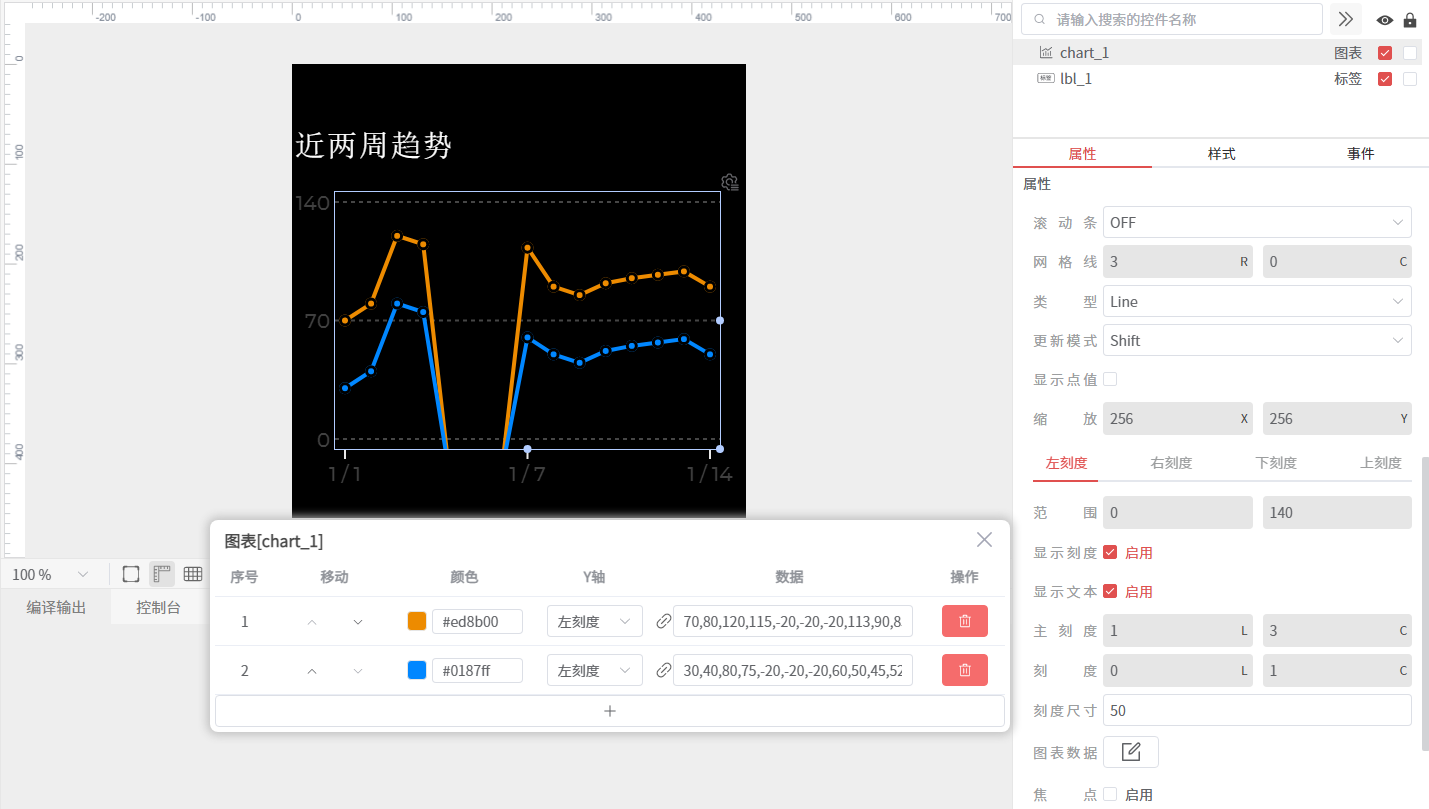

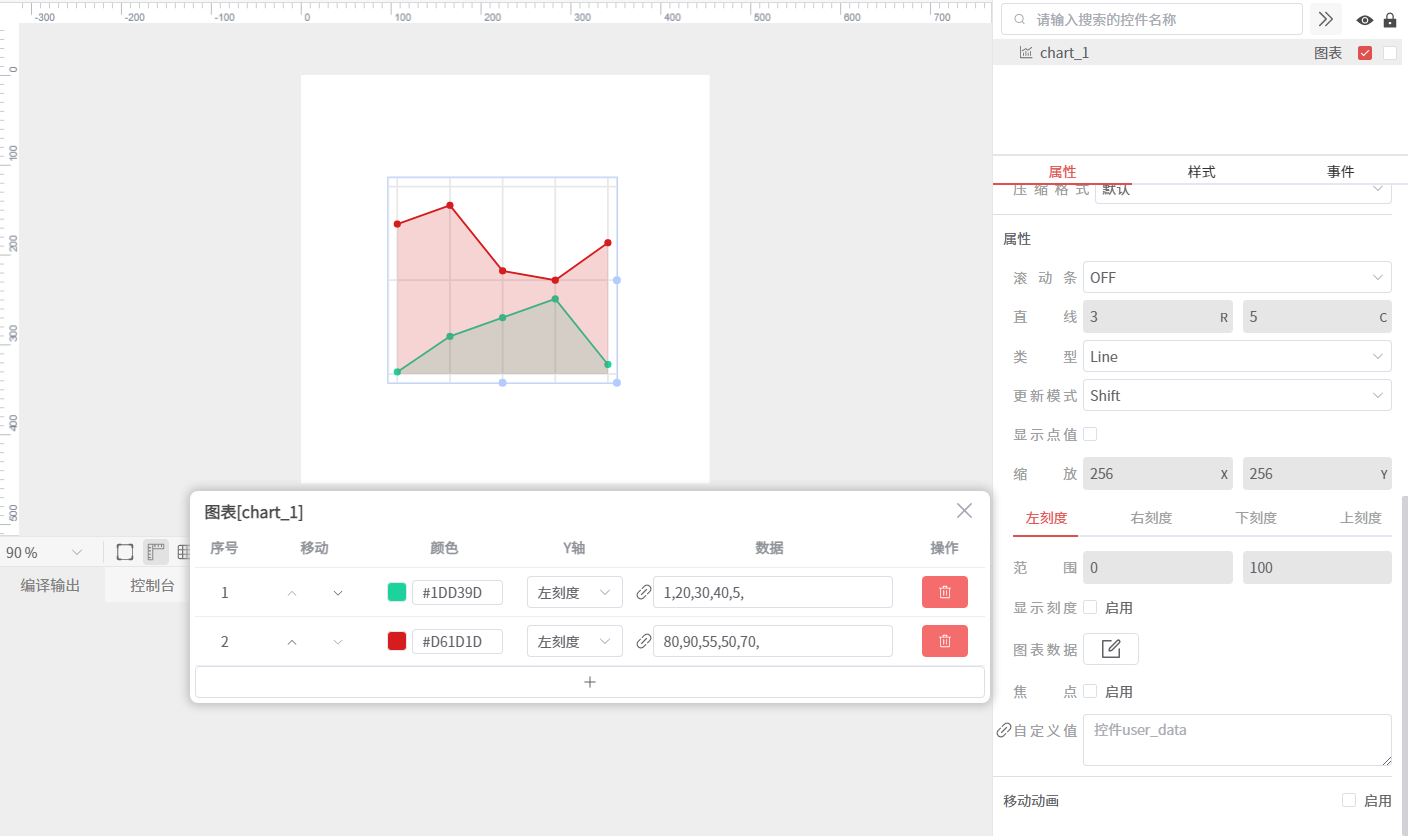

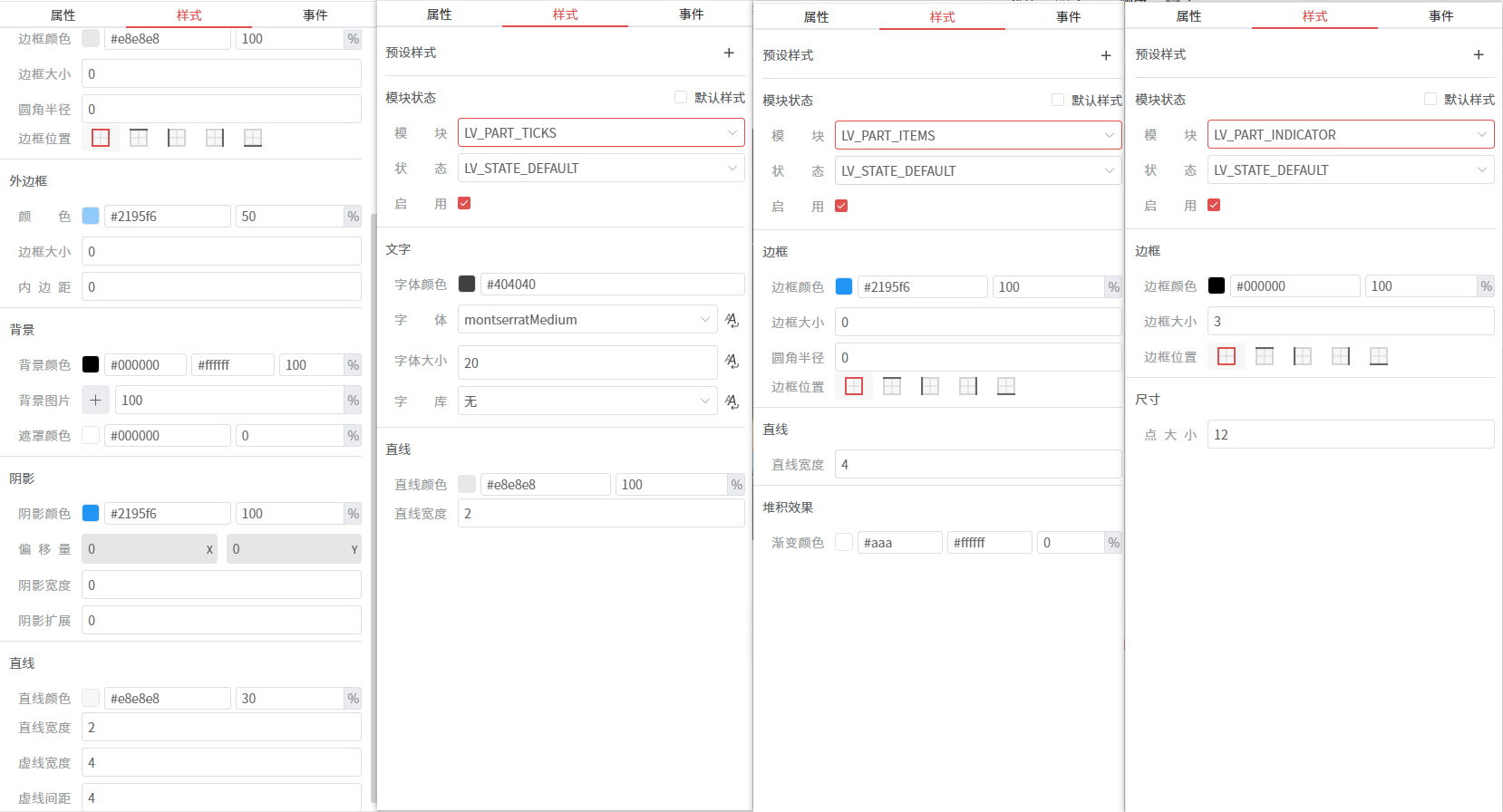

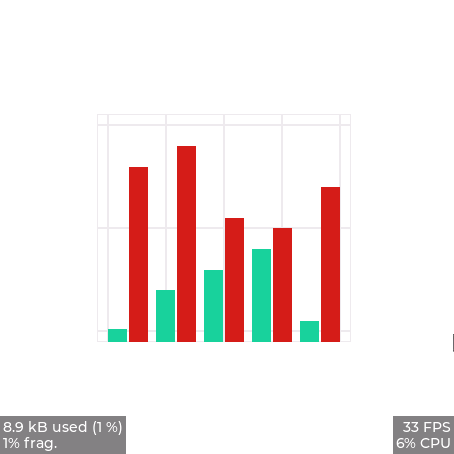

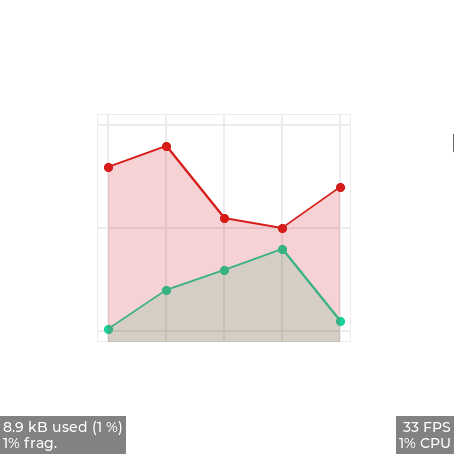

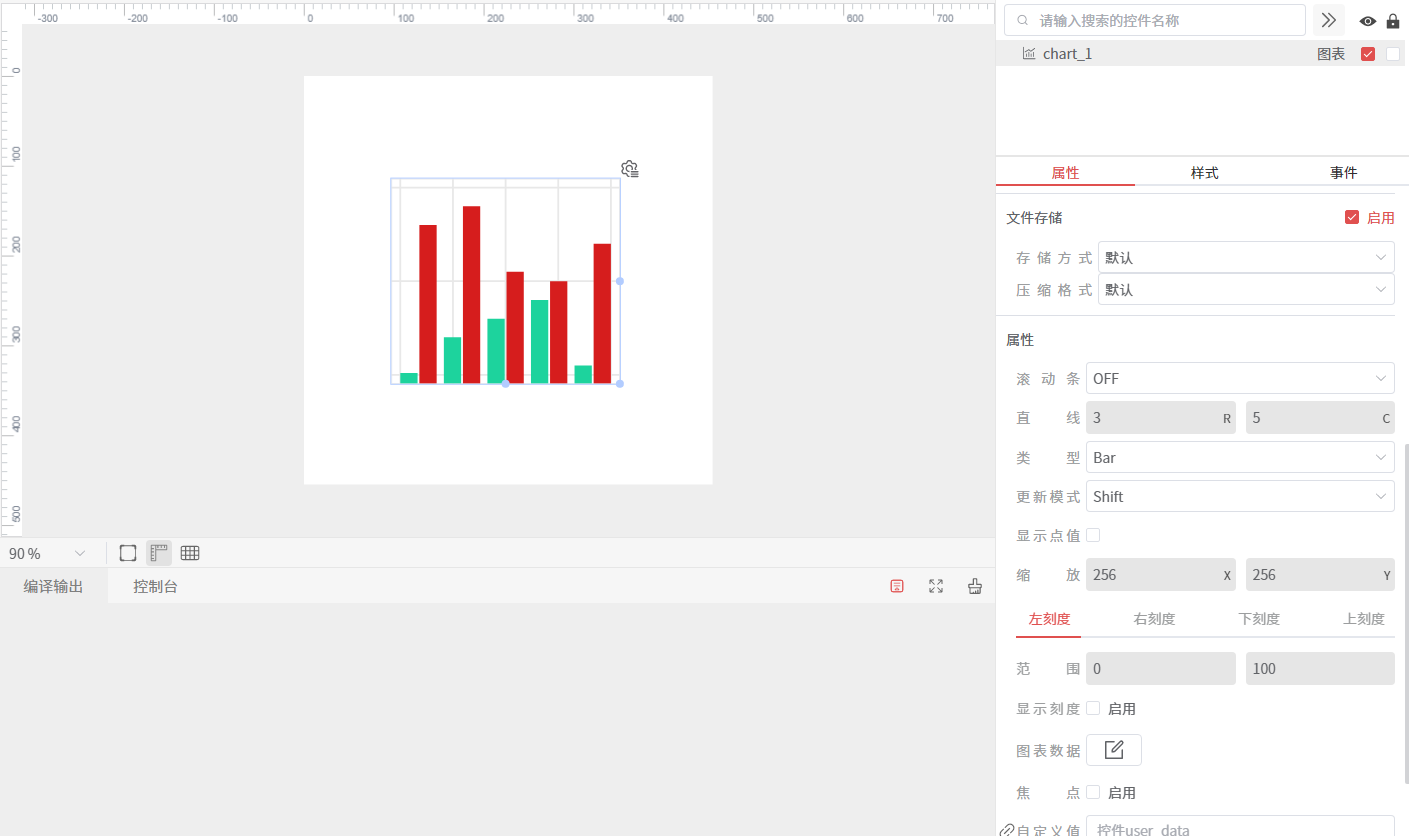

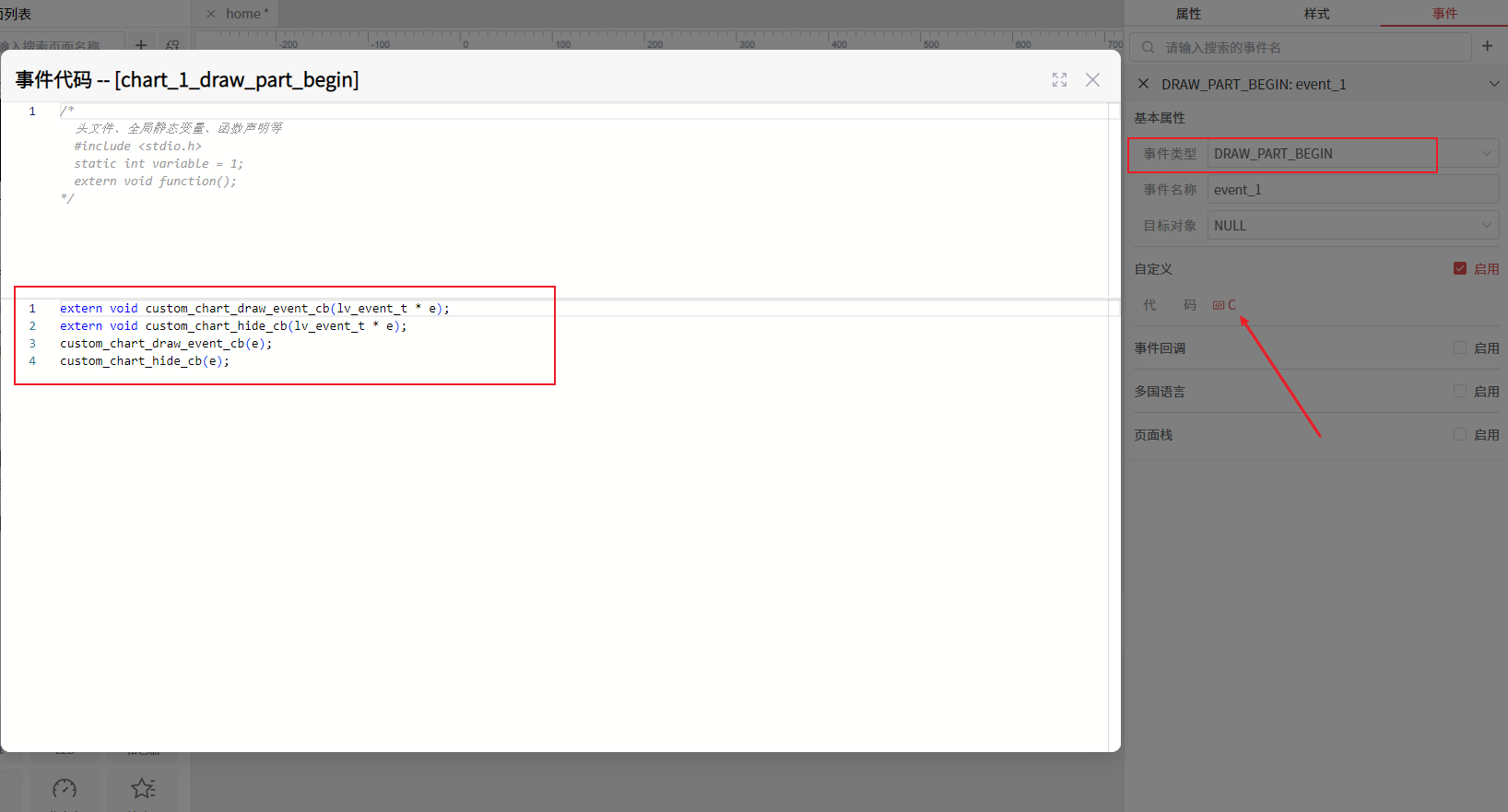

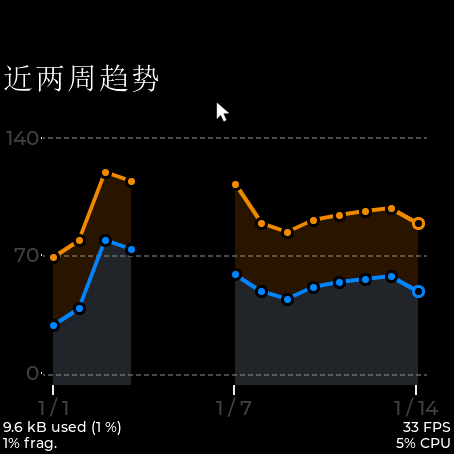

extern void custom_chart_draw_event_cb(lv_event_t * e);
extern void custom_chart_hide_cb(lv_event_t * e);
custom_chart_draw_event_cb(e);
custom_chart_hide_cb(e);


//在custom.c中实现

void custom_chart_draw_event_cb(lv_event_t * e)
{
    lv_obj_t * obj = lv_event_get_target(e);
	lv_chart_t * chart = (lv_chart_t *)obj;
    lv_obj_draw_part_dsc_t * dsc = lv_event_get_draw_part_dsc(e);

    // 只处理图表部分和线段绘制
    if(dsc->part != LV_PART_ITEMS || !dsc->p1 || !dsc->p2) return;

    // 确保不透明度不为0
    // lv_opa_t bg_opa = lv_obj_get_style_bg_opa(obj, LV_PART_ITEMS | LV_STATE_DEFAULT);
    // if(bg_opa == LV_OPA_TRANSP) return;
    lv_opa_t bg_opa = 40; // 设置渐变背景的透明度

    // 获取系列数据和点索引
    lv_chart_series_t * ser = (lv_chart_series_t *)dsc->sub_part_ptr;
    if(ser == NULL) return;


    uint16_t curr_idx = dsc->id;
    uint16_t next_idx = dsc->id + 1;
    if (curr_idx < 0 || next_idx > chart->point_cnt - 1) return;

    lv_coord_t curr_y = ser->y_points[curr_idx];
    lv_coord_t next_y = ser->y_points[next_idx];

    if (curr_y <= 0 || next_y <= 0) {
        return; // 如果y值小于等于0，则不绘制渐变背景
    }

    //渐变背景绘制
    lv_color_t grad_color = lv_obj_get_style_bg_grad_color(obj, LV_PART_ITEMS | LV_STATE_DEFAULT);
    lv_grad_dir_t grad_dir = lv_obj_get_style_bg_grad_dir(obj, LV_PART_ITEMS | LV_STATE_DEFAULT);
    if (grad_dir == LV_GRAD_DIR_NONE) {
        lv_draw_mask_line_param_t line_mask_param;
        lv_draw_mask_line_points_init(&line_mask_param, dsc->p1->x, dsc->p1->y, dsc->p2->x, dsc->p2->y, LV_DRAW_MASK_LINE_SIDE_BOTTOM);
        int16_t line_mask_id = lv_draw_mask_add(&line_mask_param, NULL);

        lv_draw_rect_dsc_t draw_rect_dsc;
        lv_draw_rect_dsc_init(&draw_rect_dsc);
        draw_rect_dsc.bg_color = dsc->line_dsc->color;
        draw_rect_dsc.bg_opa = bg_opa;

        lv_area_t a;
        a.x1 = dsc->p1->x;
        a.x2 = dsc->p2->x - 1;
        a.y1 = LV_MIN(dsc->p1->y, dsc->p2->y);
        a.y2 = obj->coords.y2;
        lv_draw_rect(dsc->draw_ctx, &draw_rect_dsc, &a);

        lv_draw_mask_free_param(&line_mask_param);
        lv_draw_mask_remove_id(line_mask_id);
    } else if (grad_dir == LV_GRAD_DIR_HOR) {
        lv_coord_t pad_left = lv_obj_get_style_pad_left(obj, LV_PART_MAIN) + lv_obj_get_style_border_width(obj, LV_PART_MAIN);
        lv_coord_t pad_right = lv_obj_get_style_pad_right(obj, LV_PART_MAIN) + lv_obj_get_style_border_width(obj, LV_PART_MAIN);
        lv_coord_t x1_ofs = obj->coords.x1 + pad_left - lv_obj_get_scroll_left(obj);
        lv_coord_t x2_ofs = obj->coords.x2 - pad_right - lv_obj_get_scroll_right(obj);

        lv_draw_mask_line_param_t line_mask_param1;
        lv_draw_mask_line_points_init(&line_mask_param1, dsc->p1->x, dsc->p1->y, dsc->p2->x, dsc->p2->y, LV_DRAW_MASK_LINE_SIDE_BOTTOM);
        int16_t line_mask_id1 = lv_draw_mask_add(&line_mask_param1, NULL);

        lv_draw_mask_line_param_t line_mask_param2;
        lv_draw_mask_line_points_init(&line_mask_param2, dsc->p2->x, LV_MIN(dsc->p1->y, dsc->p2->y), dsc->p2->x, obj->coords.y2, LV_DRAW_MASK_LINE_SIDE_LEFT);
        int16_t line_mask_id2 = lv_draw_mask_add(&line_mask_param2, NULL);

        lv_draw_mask_line_param_t line_mask_param3;
        lv_draw_mask_line_points_init(&line_mask_param3, dsc->p1->x, LV_MIN(dsc->p1->y, dsc->p2->y), dsc->p1->x, obj->coords.y2, LV_DRAW_MASK_LINE_SIDE_RIGHT);
        int16_t line_mask_id3 = lv_draw_mask_add(&line_mask_param3, NULL);

        // 当图表的数据超过两条时，这里渲染的颜色会有问题，所有数据的颜色都变成了第一条数据的颜色
        lv_draw_rect_dsc_t draw_rect_dsc;
        lv_draw_rect_dsc_init(&draw_rect_dsc);
        draw_rect_dsc.bg_opa = bg_opa;
        draw_rect_dsc.bg_grad.stops[0].color = dsc->line_dsc->color;
        draw_rect_dsc.bg_grad.stops[1].color = grad_color;
        draw_rect_dsc.bg_grad.stops[0].frac = 0;
        draw_rect_dsc.bg_grad.stops[1].frac = 255;
        draw_rect_dsc.bg_grad.dir = LV_GRAD_DIR_HOR;

        lv_area_t a;
        a.x1 = x1_ofs;
        a.x2 = x2_ofs + 1;
        a.y1 = LV_MIN(dsc->p1->y, dsc->p2->y);
        a.y2 = obj->coords.y2;
        lv_draw_rect(dsc->draw_ctx, &draw_rect_dsc, &a);

        lv_draw_mask_free_param(&line_mask_param1);
        lv_draw_mask_free_param(&line_mask_param2);
        lv_draw_mask_free_param(&line_mask_param3);
        lv_draw_mask_remove_id(line_mask_id1);
        lv_draw_mask_remove_id(line_mask_id2);
        lv_draw_mask_remove_id(line_mask_id3);
    } else if (grad_dir == LV_GRAD_DIR_VER) {
        lv_coord_t pad_top = lv_obj_get_style_pad_top(obj, LV_PART_MAIN) + lv_obj_get_style_border_width(obj, LV_PART_MAIN);
        lv_coord_t pad_bottom = lv_obj_get_style_pad_bottom(obj, LV_PART_MAIN) + lv_obj_get_style_border_width(obj, LV_PART_MAIN);
        lv_coord_t y1_ofs = obj->coords.y1 + pad_top - lv_obj_get_scroll_top(obj);
        lv_coord_t y2_ofs = obj->coords.y2 - pad_bottom - lv_obj_get_scroll_bottom(obj);
        lv_chart_series_t * ser = (lv_chart_series_t *)dsc->sub_part_ptr;
        lv_chart_t * chart = (lv_chart_t *)obj;
        uint16_t point_cnt = chart->point_cnt;
        lv_coord_t max_point = 0;
        lv_coord_t max_point_y = 0;
        for (uint16_t i = 0; i < point_cnt; i++) {
            if (ser->y_points[i] == LV_CHART_POINT_NONE) continue;
            max_point = LV_MAX(max_point, ser->y_points[i]);
        }
        if (ser->y_axis_sec == 0) {
            max_point_y = y2_ofs - (max_point - chart->ymin[0]) * (y2_ofs - y1_ofs) / (chart->ymax[0] - chart->ymin[0]);
        } else {
            max_point_y = y2_ofs - (max_point - chart->ymin[1]) * (y2_ofs - y1_ofs) / (chart->ymax[1] - chart->ymin[1]);
        }

        lv_draw_mask_line_param_t line_mask_param;
        lv_draw_mask_line_points_init(&line_mask_param, dsc->p1->x, dsc->p1->y, dsc->p2->x, dsc->p2->y, LV_DRAW_MASK_LINE_SIDE_BOTTOM);
        int16_t line_mask_id = lv_draw_mask_add(&line_mask_param, NULL);

        lv_draw_rect_dsc_t draw_rect_dsc;
        lv_draw_rect_dsc_init(&draw_rect_dsc);
        draw_rect_dsc.bg_opa = bg_opa;
        draw_rect_dsc.bg_grad.stops[0].color = dsc->line_dsc->color;
        draw_rect_dsc.bg_grad.stops[1].color = grad_color;
        draw_rect_dsc.bg_grad.stops[0].frac = 0;
        draw_rect_dsc.bg_grad.stops[1].frac = 255;
        draw_rect_dsc.bg_grad.dir = LV_GRAD_DIR_VER;

        lv_area_t a;
        a.x1 = dsc->p1->x;
        a.x2 = dsc->p2->x - 1;
        a.y1 = max_point_y;
        a.y2 = obj->coords.y2;
        lv_draw_rect(dsc->draw_ctx, &draw_rect_dsc, &a);

        lv_draw_mask_free_param(&line_mask_param);
        lv_draw_mask_remove_id(line_mask_id);
    }
}

void custom_chart_hide_cb(lv_event_t * e)
{
    lv_obj_t * obj = lv_event_get_target(e);
    lv_chart_t * chart = (lv_chart_t *)obj;
    lv_obj_draw_part_dsc_t * dsc = (lv_obj_draw_part_dsc_t *)lv_event_get_draw_part_dsc(e);

    lv_chart_series_t * ser = (lv_chart_series_t *)dsc->sub_part_ptr;
    if(ser == NULL) return;

    if(dsc->part == LV_PART_ITEMS) {
        if(dsc->p1 && dsc->p2 && dsc->line_dsc) {
            uint16_t curr_idx = dsc->id;
            uint16_t next_idx = dsc->id + 1;

            if (curr_idx >= 0 && next_idx < chart->point_cnt) {
                lv_coord_t curr_y = ser->y_points[curr_idx];
                lv_coord_t next_y = ser->y_points[next_idx];

                //如果两点有y值小于等于0，则不绘制折线
                if (curr_y <= 0 || next_y <= 0) {
                    dsc->line_dsc->opa = LV_OPA_TRANSP;
                } else {
                    dsc->line_dsc->opa = LV_OPA_COVER;
                }
            }

            if (dsc->rect_dsc) {
                dsc->rect_dsc->bg_color = dsc->line_dsc->color;
                dsc->rect_dsc->border_color = lv_color_make(0x00, 0x00, 0x00);
            }
        } else if(!dsc->p1 && !dsc->p2) {
            // 修改折现的最后一点的样式
            if (dsc->rect_dsc) {
                dsc->rect_dsc->border_color = dsc->rect_dsc->bg_color;
                dsc->rect_dsc->bg_color = lv_color_make(0x00, 0x00, 0x00);
            }
        }
    }
}

/* 将图表数值映射为当前对象坐标系中的 y 坐标 */
static lv_coord_t chart_value_to_y(lv_chart_t * chart, lv_chart_series_t * ser, lv_coord_t y1_ofs, lv_coord_t y2_ofs, lv_coord_t value)
{
    lv_coord_t axis_min = chart->ymin[ser->y_axis_sec];
    lv_coord_t axis_max = chart->ymax[ser->y_axis_sec];
    if(axis_max == axis_min) return y2_ofs;

    return y2_ofs - (value - axis_min) * (y2_ofs - y1_ofs) / (axis_max - axis_min);
}

/* 按整条基准渐变采样某个 y 位置对应的颜色。
 * 这样不同高度的局部区域，会拿到各自正确的起止色，而不是每段都从固定颜色重新开始。 */
static lv_color_t chart_sample_color_on_axis(lv_coord_t y, lv_coord_t y_start, lv_coord_t y_end,
    lv_color_t color_start, lv_color_t color_end)
{
    if(y_start == y_end) return color_end;

    int32_t mix = ((int32_t)(y_end - y) * 255) / (y_end - y_start);
    if(mix < 0) mix = 0;
    if(mix > 255) mix = 255;

    return lv_color_mix(color_start, color_end, (uint8_t)mix);
}

static void chart_draw_ver_fill_segment(lv_obj_draw_part_dsc_t * dsc, lv_point_t * p1, lv_point_t * p2,
    lv_coord_t base_y, lv_coord_t pos_top_y, lv_coord_t neg_bottom_y,
    lv_opa_t bg_opa, lv_color_t bg_color, lv_color_t bg_grad_color)
{
    if(p1->x == p2->x) return;

    /* 只处理“整段都在 0 轴上方 / 下方”的情况；
     * 若线段跨过 0 轴，会在外层先切成两段再分别调用这里 */
    lv_draw_mask_line_side_t side;
    lv_area_t a;
    lv_color_t color_top;
    lv_color_t color_bottom;

    if(p1->y <= base_y && p2->y <= base_y) {
        side = LV_DRAW_MASK_LINE_SIDE_BOTTOM;
        a.y1 = LV_MIN(p1->y, p2->y);
        a.y2 = base_y;
        color_top = chart_sample_color_on_axis(a.y1, pos_top_y, base_y, bg_color, bg_grad_color);
        color_bottom = chart_sample_color_on_axis(a.y2, pos_top_y, base_y, bg_color, bg_grad_color);
    } else if(p1->y >= base_y && p2->y >= base_y) {
        side = LV_DRAW_MASK_LINE_SIDE_TOP;
        a.y1 = base_y;
        a.y2 = LV_MAX(p1->y, p2->y);
        color_top = chart_sample_color_on_axis(a.y1, base_y, neg_bottom_y, bg_grad_color, bg_color);
        color_bottom = chart_sample_color_on_axis(a.y2, base_y, neg_bottom_y, bg_grad_color, bg_color);
    } else {
        return;
    }

    a.x1 = LV_MIN(p1->x, p2->x);
    a.x2 = LV_MAX(p1->x, p2->x) - 1;
    if(a.x1 > a.x2 || a.y1 > a.y2) return;

    lv_draw_mask_line_param_t line_mask_param;
    lv_draw_mask_line_points_init(&line_mask_param, p1->x, p1->y, p2->x, p2->y, side);
    int16_t line_mask_id = lv_draw_mask_add(&line_mask_param, NULL);

    /* 这里真正画“折线到基准线之间”的渐变区域。
     * 正值区：bg_color -> bg_grad_color
     * 负值区：bg_grad_color -> bg_color
     * 但颜色会先按整条轴做采样，再用于当前局部矩形。 */
    lv_draw_rect_dsc_t draw_rect_dsc;
    lv_draw_rect_dsc_init(&draw_rect_dsc);
    draw_rect_dsc.bg_opa = bg_opa;
    draw_rect_dsc.bg_color = color_top;
    draw_rect_dsc.bg_grad.stops[0].color = color_top;
    draw_rect_dsc.bg_grad.stops[1].color = color_bottom;
    draw_rect_dsc.bg_grad.stops[0].frac = 0;
    draw_rect_dsc.bg_grad.stops[1].frac = 255;
    draw_rect_dsc.bg_grad.dir = LV_GRAD_DIR_VER;

    lv_draw_rect(dsc->draw_ctx, &draw_rect_dsc, &a);

    lv_draw_mask_free_param(&line_mask_param);
    lv_draw_mask_remove_id(line_mask_id);
}

static void custom_chart_draw_event_cb(lv_event_t * e)
{
    lv_obj_t * obj = lv_event_get_target(e);
    lv_obj_draw_part_dsc_t * dsc = lv_event_get_draw_part_dsc(e);
    /* 仅拦截 chart 的折线段绘制事件 */
    if(dsc->part != LV_PART_ITEMS || !dsc->p1 || !dsc->p2) return;

    lv_opa_t bg_opa = lv_obj_get_style_bg_opa(obj, LV_PART_ITEMS | LV_STATE_DEFAULT);
    if(bg_opa == LV_OPA_TRANSP) return;

    lv_color_t bg_color = lv_obj_get_style_bg_color(obj, LV_PART_ITEMS | LV_STATE_DEFAULT);
    lv_color_t grad_color = lv_obj_get_style_bg_grad_color(obj, LV_PART_ITEMS | LV_STATE_DEFAULT);
    lv_grad_dir_t grad_dir = lv_obj_get_style_bg_grad_dir(obj, LV_PART_ITEMS | LV_STATE_DEFAULT);

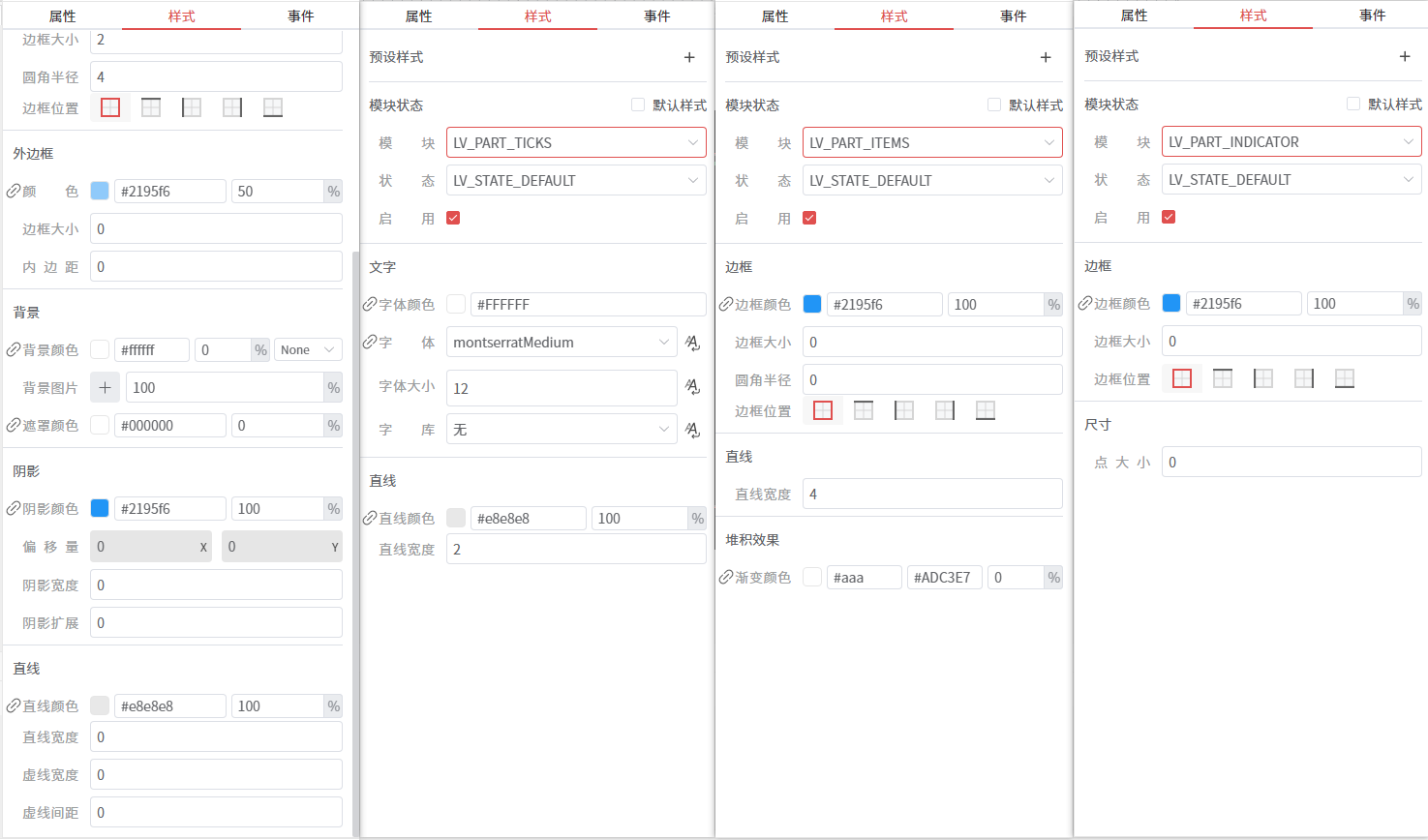

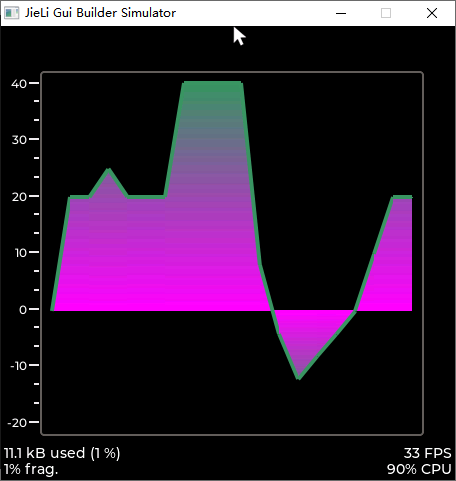

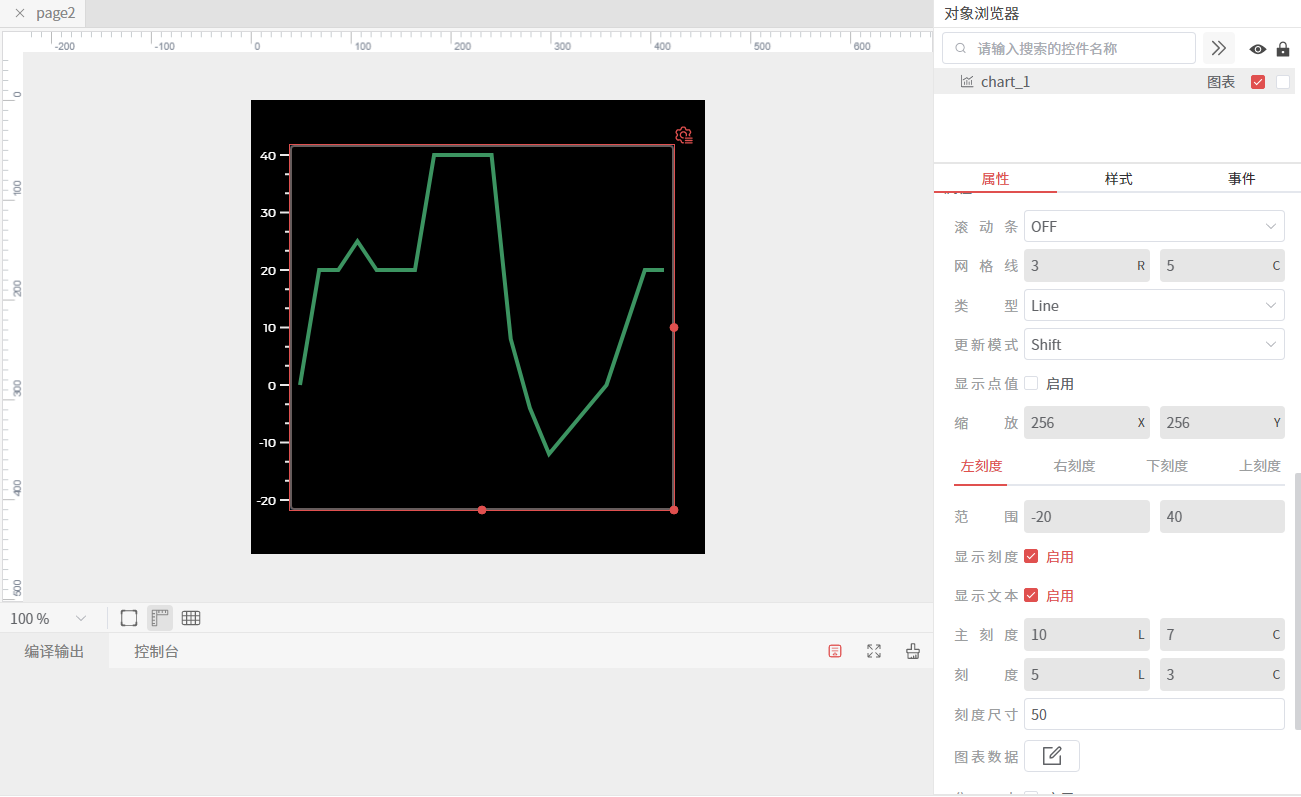

    if(grad_dir == LV_GRAD_DIR_VER) {
        /* 垂直渐变模式下，以 y=0 为填充基准线，而不是图表底边 */
        lv_coord_t pad_top = lv_obj_get_style_pad_top(obj, LV_PART_MAIN) + lv_obj_get_style_border_width(obj, LV_PART_MAIN);
        lv_coord_t pad_bottom = lv_obj_get_style_pad_bottom(obj, LV_PART_MAIN) + lv_obj_get_style_border_width(obj, LV_PART_MAIN);
        lv_coord_t y1_ofs = obj->coords.y1 + pad_top - lv_obj_get_scroll_top(obj);
        lv_coord_t y2_ofs = obj->coords.y2 - pad_bottom - lv_obj_get_scroll_bottom(obj);
        lv_chart_series_t * ser = (lv_chart_series_t *)dsc->sub_part_ptr;
        lv_chart_t * chart = (lv_chart_t *)obj;
        lv_coord_t axis_min = chart->ymin[ser->y_axis_sec];
        lv_coord_t axis_max = chart->ymax[ser->y_axis_sec];
        if(axis_max == axis_min) return;

        lv_coord_t pos_top_y = chart_value_to_y(chart, ser, y1_ofs, y2_ofs, axis_max);
        lv_coord_t neg_bottom_y = chart_value_to_y(chart, ser, y1_ofs, y2_ofs, axis_min);
        lv_coord_t base_value = 0;
        if(base_value < axis_min) base_value = axis_min;
        if(base_value > axis_max) base_value = axis_max;
        lv_coord_t base_y = chart_value_to_y(chart, ser, y1_ofs, y2_ofs, base_value);

        lv_point_t p1 = *dsc->p1;
        lv_point_t p2 = *dsc->p2;

        if((p1.y <= base_y && p2.y <= base_y) || (p1.y >= base_y && p2.y >= base_y)) {
            chart_draw_ver_fill_segment(dsc, &p1, &p2, base_y, pos_top_y, neg_bottom_y, bg_opa, bg_color, grad_color);
        } else {
            /* 跨过 0 轴时，先求交点，再拆成上下两段分别填充 */
            lv_point_t cross;
            cross.y = base_y;
            cross.x = p1.x + ((int32_t)(base_y - p1.y) * (p2.x - p1.x)) / (p2.y - p1.y);

            chart_draw_ver_fill_segment(dsc, &p1, &cross, base_y, pos_top_y, neg_bottom_y, bg_opa, bg_color, grad_color);
            chart_draw_ver_fill_segment(dsc, &cross, &p2, base_y, pos_top_y, neg_bottom_y, bg_opa, bg_color, grad_color);
        }
    }
}

void custom_init(lv_ui *ui)
{
    if(ui && ui->page2 && ui->page2->page2_chart_1 && lv_obj_is_valid(ui->page2->page2_chart_1)) {
        lv_obj_remove_event_cb(ui->page2->page2_chart_1, custom_chart_draw_event_cb);
        lv_obj_add_event_cb(ui->page2->page2_chart_1, custom_chart_draw_event_cb, LV_EVENT_DRAW_PART_BEGIN, NULL);
        lv_obj_set_style_bg_opa(ui->page2->page2_chart_1, LV_OPA_100, LV_PART_ITEMS);
        lv_obj_set_style_bg_color(ui->page2->page2_chart_1, lv_color_make(0x3c, 0x94, 0x61), LV_PART_ITEMS);
        lv_obj_set_style_bg_grad_color(ui->page2->page2_chart_1, lv_color_make(0xff, 0x00, 0xff), LV_PART_ITEMS);
        lv_obj_set_style_bg_grad_dir(ui->page2->page2_chart_1, LV_GRAD_DIR_VER, LV_PART_ITEMS);
    }
}
