彩屏仓功耗优化

static u8 tp_init = false;
static void lvgl_task(void *p)
{
    printf("++++++++++++++++++++++++lvgl_task++++++++++++++++++++++++++++++++");


// extern int fifo_main() ;
// fifo_main() ;

#if 0//TCFG_SD0_ENABLE
    extern void sd_test();
    sd_test();
#endif

    int msg[32];
    int ret;

#if LV_USE_LOG && LV_LOG_PRINTF
    lv_log_register_print_cb(lv_rt_log);
#endif

    lv_init();

    lv_port_disp_init(p);

    //  等待模式任务启动再启动LVGL
    // while(!app_get_curr_task()){
    //     printf("checks");
    //     os_time_dly(10);
    // }
    lcd_sleep_ctrl(0);
    lcd_get_hdl()->backlight_ctrl(0);
    // lcd_draw_area(0, rot_buf, 0, 0, 0, 172, 0); //旋转
    lv_port_indev_init();
    // sys_s_hi_timer_add(NULL, lvgl_test_tick, 2);
    lv_port_fs_init();

#if LV_USE_DEMO_WIDGETS
    lv_demo_widgets();
#endif /* #if LV_USE_DEMO_WIDGETS */

#if LV_USE_DEMO_STRESS
    lv_demo_stress();
#endif /* #if LV_USE_DEMO_STRESS */

#if LV_USE_DEMO_MUSIC
    // lv_demo_music();
#endif /* #if LV_USE_DEMO_MUSIC */




    extern volatile u8 usr_wait_te;
    usr_wait_te = 0;//0;

    //  用户动态控制是否推psram刷屏
    extern volatile u8 usr_full_screen;
    usr_full_screen = 0;//0;

    static int last_time = 0;
    int time_till_next = 0; //  距离下一次执行时间，此时间与待机低功耗相关

    /*Set a cursor for the mouse*/
    LV_IMG_DECLARE(mouse_cursor_icon); /*Declare the image file.*/
    extern lv_indev_t *indev_touchpad;
    cursor_obj = lv_img_create(lv_scr_act()); /*Create an image object for the cursor */
    lv_img_set_src(cursor_obj, &ID_ic_xia);           /*Set the image source*/
    lv_indev_set_cursor(indev_touchpad, cursor_obj);             /*Connect the image  object to the driver*/
    lv_obj_add_flag(cursor_obj, LV_OBJ_FLAG_HIDDEN);


    // static u8 bufout[10000*4];
    // static u8 bufin[10000*3];
    // int j;
    // int a = jiffies_half_msec();
    // int key = 0;
    // for(j=0;j<1000 ;j++){
    //     int i;
    //     for(i=0;i<10000;i++){
    //         memcpy(bufout[i*4], bufin[i*3], 3);
    //         key = 1;
    //     }
    //     // putchar('2');

    // }
    // int b = jiffies_half_msec();

    // printf(">>>>10000 %d 1/2   %d=",b-a,key);

    // // // // /*Create a GUI-Guider app */
    void setup_ui(lv_ui *ui);

    setup_ui(&guider_ui);
    events_init(&guider_ui);
    custom_init(&guider_ui);


    // // // // lv_example_btn_11();
    // // // // extern void lv_demo_music(void);
    // // // // lv_demo_music();

    // extern void usr_ui_deal();
    // usr_ui_deal();

    // void lv_example_label_4(void);
    // lv_example_label_4();

    // lv_example_canvas_1();

    // lv_creat_oj()

    // lv_example_img_1();

    // lv_demo_keypad_encoder();

    // lv_example_imgfont_1();

    //避免开机白屏，延时亮背光
    // delay_2ms(200);

    hw_sleep_ctrl();
    int next=0;
    extern const int IDLE_AUTO_SLEEP;
    extern const int FULL_FLASH;
    // r_printf("start timer:%d\n",jiffies_msec());
    while (1) {
        int next=50;
        /* 全屏刷测试 */
        // if(FULL_FLASH && !lcd_sleep_status())
        //     lv_obj_invalidate(lv_scr_act());

        if(IDLE_AUTO_SLEEP || !lcd_sleep_status()){
            next = lv_task_handler() / 10;
        }

        if(next<50) {
            if(next)  os_time_dly(next);
            else if(!lcd_sleep_status()) wdt_clear();
            ret = os_taskq_accept(ARRAY_SIZE(msg), msg);
        } else {
            ret = os_taskq_pend(NULL, msg, ARRAY_SIZE(msg));
        }

        /* 处理消息 */
        lv_os_event_handle((ret == OS_TASKQ)?msg:NULL);
#if TCFG_TP_CST816D_ENABLE
    // 标准原理图使用ldo给tp供电（pin_en）。需要提前拉一下io口，否则cst816可能升级失败
    if(!tp_init)
    {
        tp_init = TRUE;
        extern void cst816d_init();
        cst816d_init();
    }
#endif

    }
}

void lv_screen_refresh_start()
{
    if (!screen_refresh_timer) {
        screen_refresh_timer_cb();
        screen_refresh_timer = lv_timer_create(screen_refresh_timer_cb, SCREEN_REFRESH_INTERVAL, NULL);
    }
}

static int app_is_sleep = 0;

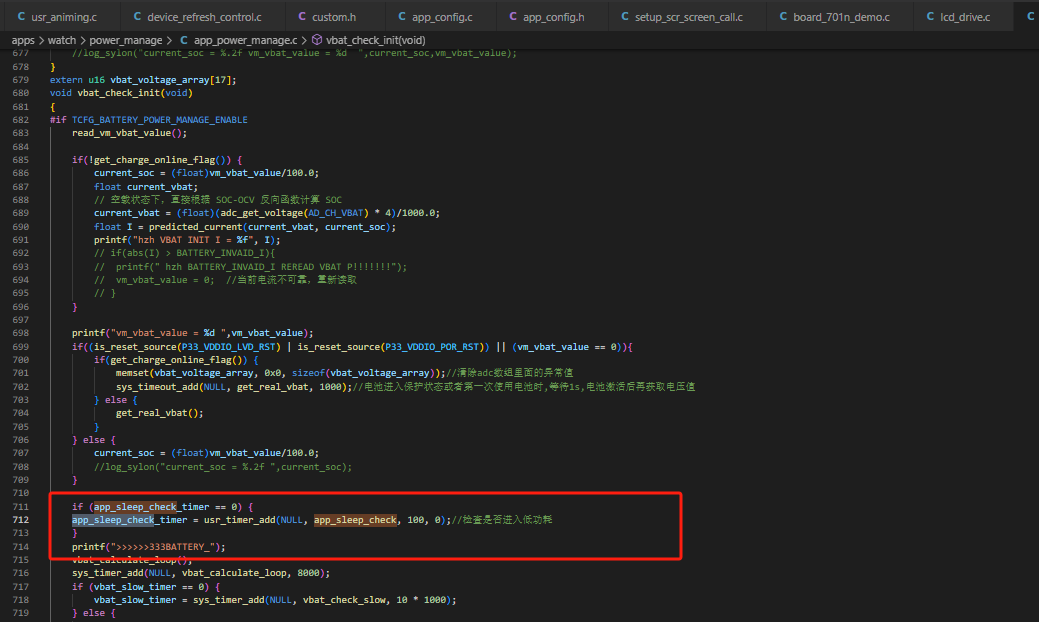

void app_sleep_check()
{
    int value;
    struct lp_target *p;
    list_for_each_lp_target(p){
        value = 1 & (p->is_idle());
        putchar('*');
    }
    if(value){
        ++app_is_sleep;
        putchar('o');
        if(app_is_sleep>400){
            putchar('P');
            power_event_to_user(POWER_EVENT_POWER_LOW);
            usr_timer_del(app_sleep_check_timer);
        }
    }
    else{
        putchar('@');
        app_is_sleep = 0;
    }
}
